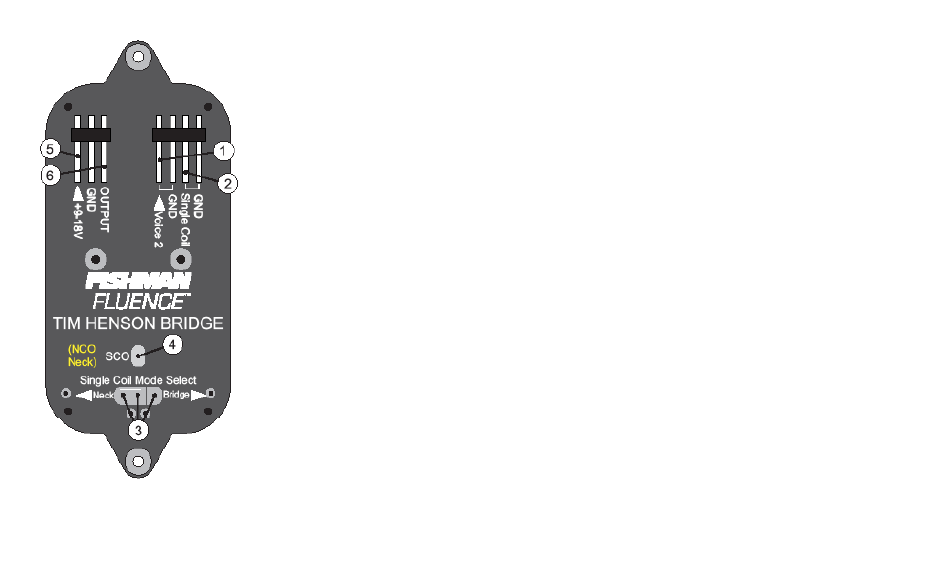

Fluence Tim Henson Signature Set – Connection Points & Functions
1. Voice-2 Select Wire - To select Voice-2, connect this pin to
ground through a switch contact or permanently by soldering it to
any ground or by using one of the included jumpers across the pins.
This pin is an electronically controlled switch and has no signal
on it. It can share a switch contact with other voice select wires
without interaction.
Note: the Single Coil / Voice-3 select pin (3) over rides Voice-2
select. Therefore, the Voice-3 pin must be disconnected (not
grounded) to allow Voice-2 selection.
6
