- Page 1 FLUENCE TIM HENSON SIGNATURE SET INSTALLATION GUIDE...
-
Page 2: System Requirements
TARILY ASSUME THE RISK OF DEATH OR OTHER PERSONAL INJURY SUSTAINED WHILE PARTICIPATING IN SUCH ACTIVITIES WHETHER OR NOT CAUSED BY THE NEGLIGENCE OR ANY OTHER FAULT of Fishman, including but not limited to equipment malfunction from whatever cause, or any other fault of Fishman. Additionally, you agree to indemnify, defend... -
Page 3: Getting Started
Test t the components to make sure that each will t in the allocated locations or modify the instrument until the t is correct and all controls can be located without issue. Fishman Fluence Pickups are active and require 25K audio taper potentiometers. - Page 4 3. The various pickup voicing options are easily activated by connecting the cor- responding control wires to Ground. Any of these options can be made switch select- able using the included push-pull pots or other preferred switches. They can also be permanently wired by either connecting to Ground or leaving “open”...
- Page 5 Voice 1 Neck – Thick and smooth Neck Humbucker / Peak frequency – 3.5kHz (first order rolloff) Voice 1 Bridge – Aggressive, tight passive tone / Peak frequency – 1.65kHz Voice 2 Neck – Hyper clean, faux acoustic/nylon surrogate – 9.5kHz, 450Hz Voice 2 Bridge –...

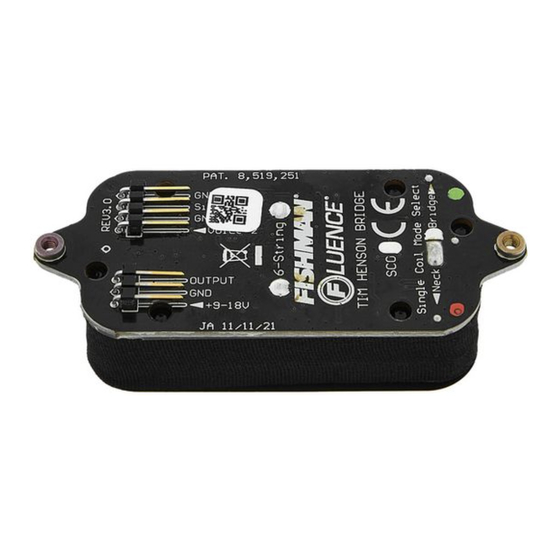

- Page 6 Fluence Tim Henson Signature Set – Connection Points & Functions 1. Voice-2 Select Wire - To select Voice-2, connect this pin to ground through a switch contact or permanently by soldering it to any ground or by using one of the included jumpers across the pins. This pin is an electronically controlled switch and has no signal on it.
- Page 7 2. Single Coil / Voice-3 Select Wire - To select Voice-3, connect this pin to ground through a switch contact. In Single Coil mode, the default active coils are those closest to the neck (screw side for neck and slug side for bridge). The Tim Henson signature set is designed such that using the neck side coils from both pickups together will provide hum canceling.
- Page 8 3. Single Coil Mode Select - A row of three solder pads is used to select the active coil in Single Coil / Voice-3 mode The active coil is selected by a solder bridge connecting the corresponding outer pad to the center one. The pickups ship from the factory with the neck side coils set as the default.
- Page 9 9V supply, however they are 18V compatible for instruments already set up that way. 6. Output - The main output pin has a 2k ohm output impedance and is suitable for driving low impedance volume and tone pots, typically 25k. Wiring diagrams are available at Fishman.com...
- Page 10 Regulator/Charger Battery Tim Henson Humbucker Set Volume Tone - Pull for Voice-2 (1,3,& 5 positions) Schaller Megaswitch-M 5-way Switch Neck Pickup Bridge Pickup Ring Ring Sleeve Sleeve Output Output Voice-3 Jack Jack Solder Bridge Tim Henson Neck Tim Henson Bridge Neck-Side (Stock) Rev 2.0...
- Page 14 PRODUCT PAGE & INSTALL GUIDE 514-300-252_r1 4/23 Fishman and Fishman Transducers are trademarks or tradenames of Fishman Transducers Inc. 514-300-252_r0 04/22...
