Assembly; Dimensions - Kaba c-lever compact Installation Instructions Manual

Installation instructions
3.5

Assembly

13 12 11
14

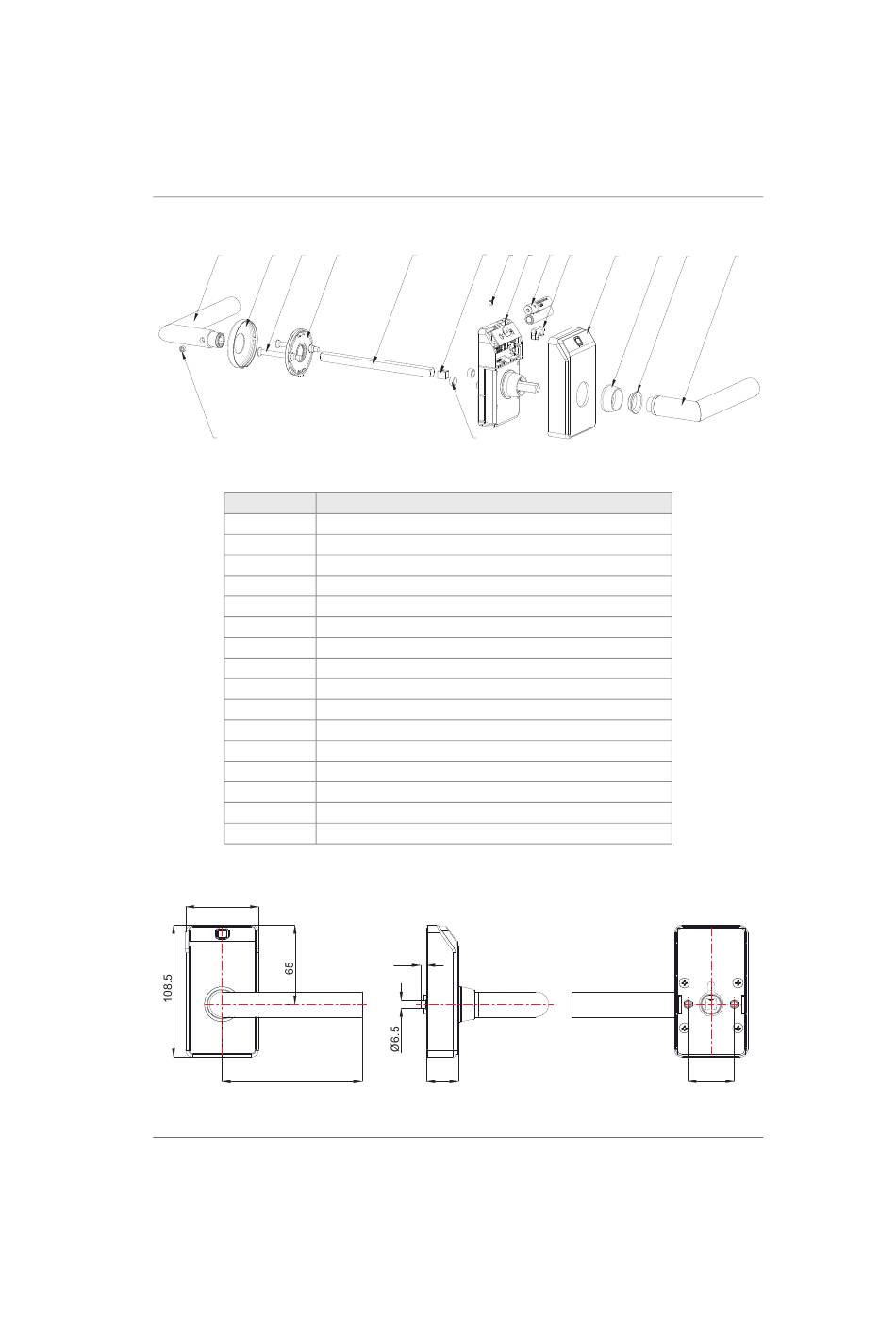

Exploded diagram
Position Description
1 Mechatronic unit
2 Housing
3 Metal ring
4 Plastic guide ring
5 External handle
6 Direction pin
7 Batteries, type AAA Lithium (2 pieces)
8 Spindle
9 Fastening screw
10 Internal rosette "round" (optional)
11 Fixing screw for internal rosette (2 pieces)
12 Internal rosette cover (optional)
13 Inside handle (optional)
14 Fixing screw for handle (optional)
15 Centring sleeve (2 pieces 7-8 mm, 2 pieces 7-9 mm)
16 Reduction sleeve for 7 mm spindle
3.6

Dimensions

60
114.7
Scale drawing
Kaba c-lever compact
16
10 8
15
5
25.8
k2evo703en-2014-01
Product description
7 6
9 1 2 3 4 5
38
11
