Installation

4 Installation
Installation description and illustrations with internal rosette!
4.1

Tools required

• Power drill with Ø7.2 mm drill bit
• Philips screwdriver
ATTENTION
A lock that is already in place can be damaged.
To avoid damage, remove the lock before starting to drill.

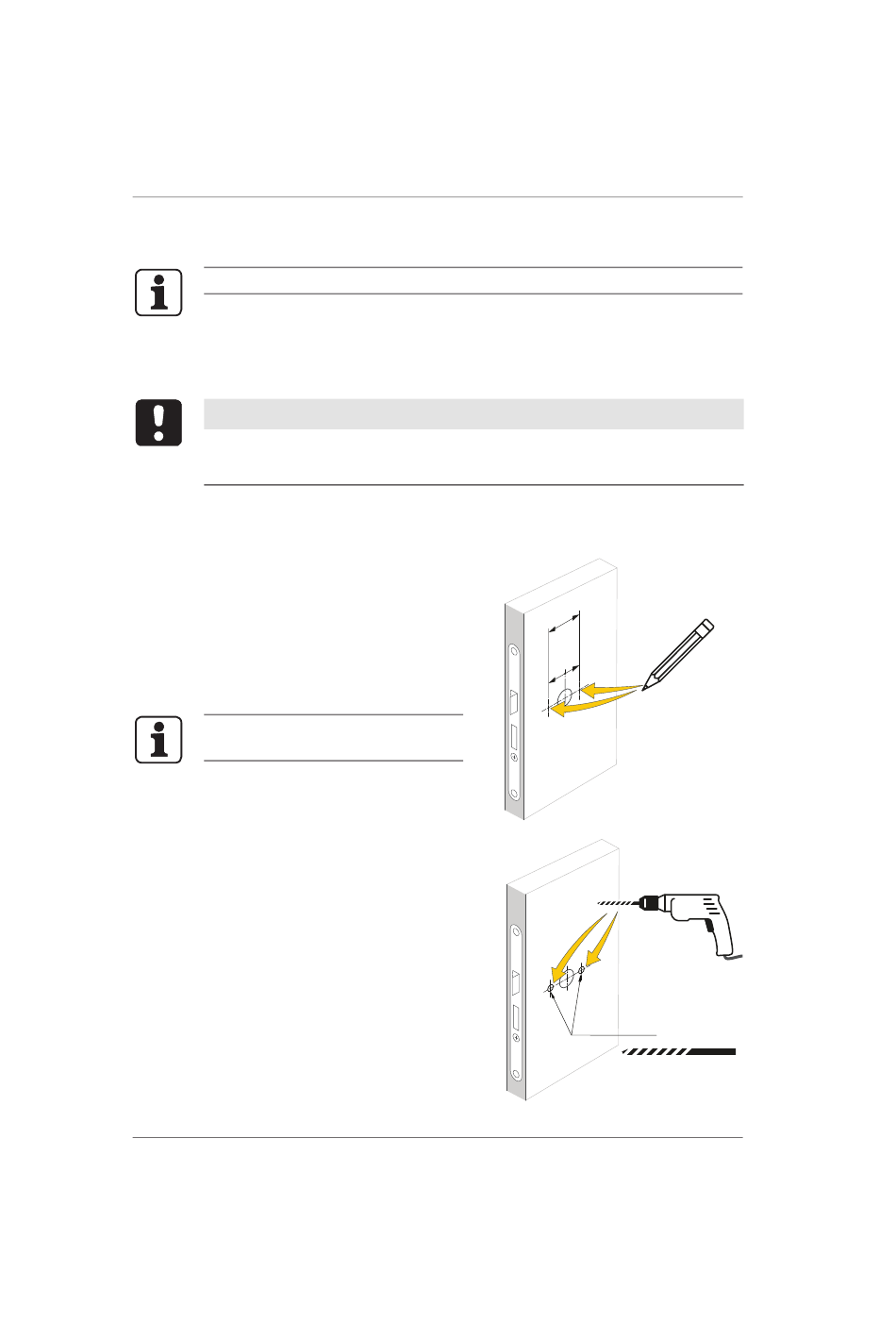

4.2

Drilling the fastening holes

Preparing the door
1. Disassemble the existing fittings
or rosette furniture from the door.
Mark the drill holes
2. Mark the borings on exterior and
interior of the door.
3. Remove the lock.
If available the #2720-25 drill jig can
also be used!
Drilling fixing holes
4. If there are no rosette drill holes,
drill the fixing holes with
a Ø7.2 mm drill from both sides of
the door (e.g. according to DIN
18255 standard).
5. After drilling, clean the mortise
and refit the door lock.
6. Install the lock.
12 k2evo703en-2014-01
Installation instructions
m m
3 8
x x
2x
2x ø 7,2 mm
Kaba c-lever compact
