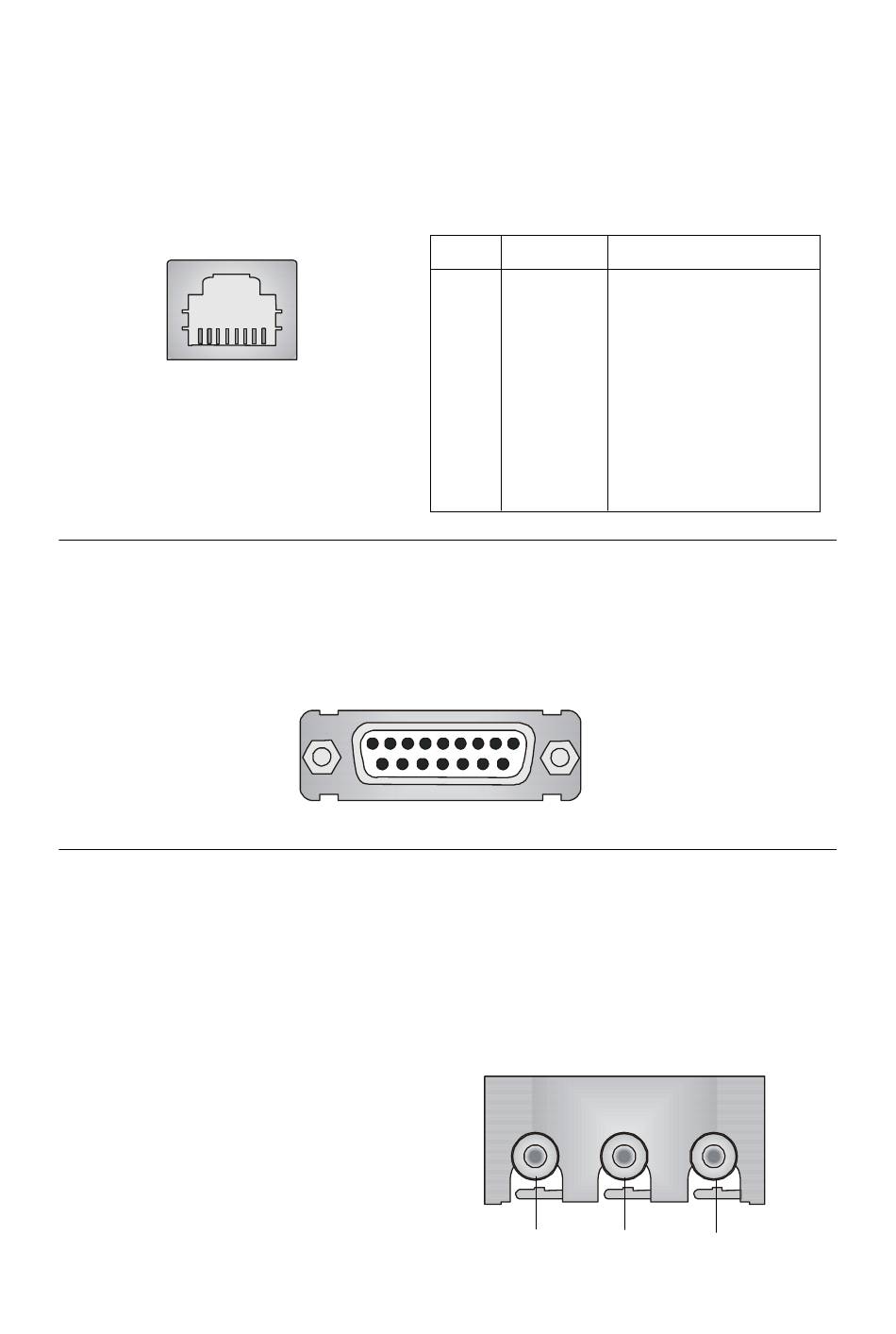

RJ-45 LAN Jack
The mainboard provides one standard RJ-45 jack for connection to Local
Area Network (LAN). You can connect a network cable to the LAN jack.
RJ-45 LAN Jack
Joystick/Midi Connectors
You can connect a joystick or game pad to this connector.
Audio Port Connectors
Line Out is a connector for Speakers or Headphones. Line In is used for
external CD player, Tape player, or other audio devices. Mic is a connector for
microphones.
1/8" Stereo Audio Connectors
Pin Definition
PIN
SIGNAL
1
TDP
2
TDN
3
RDP
4
NC
5
NC
6
RDN
7
NC
8
NC
Line Out Line In
2-11
Hardware Setup
DESCRIPTION
Transmit Differential Pair
Transmit Differential Pair
Receive Differential Pair
Not Used
Not Used
Receive Differential Pair
Not Used
Not Used
