Summary of Contents for Hyundai HDBT42

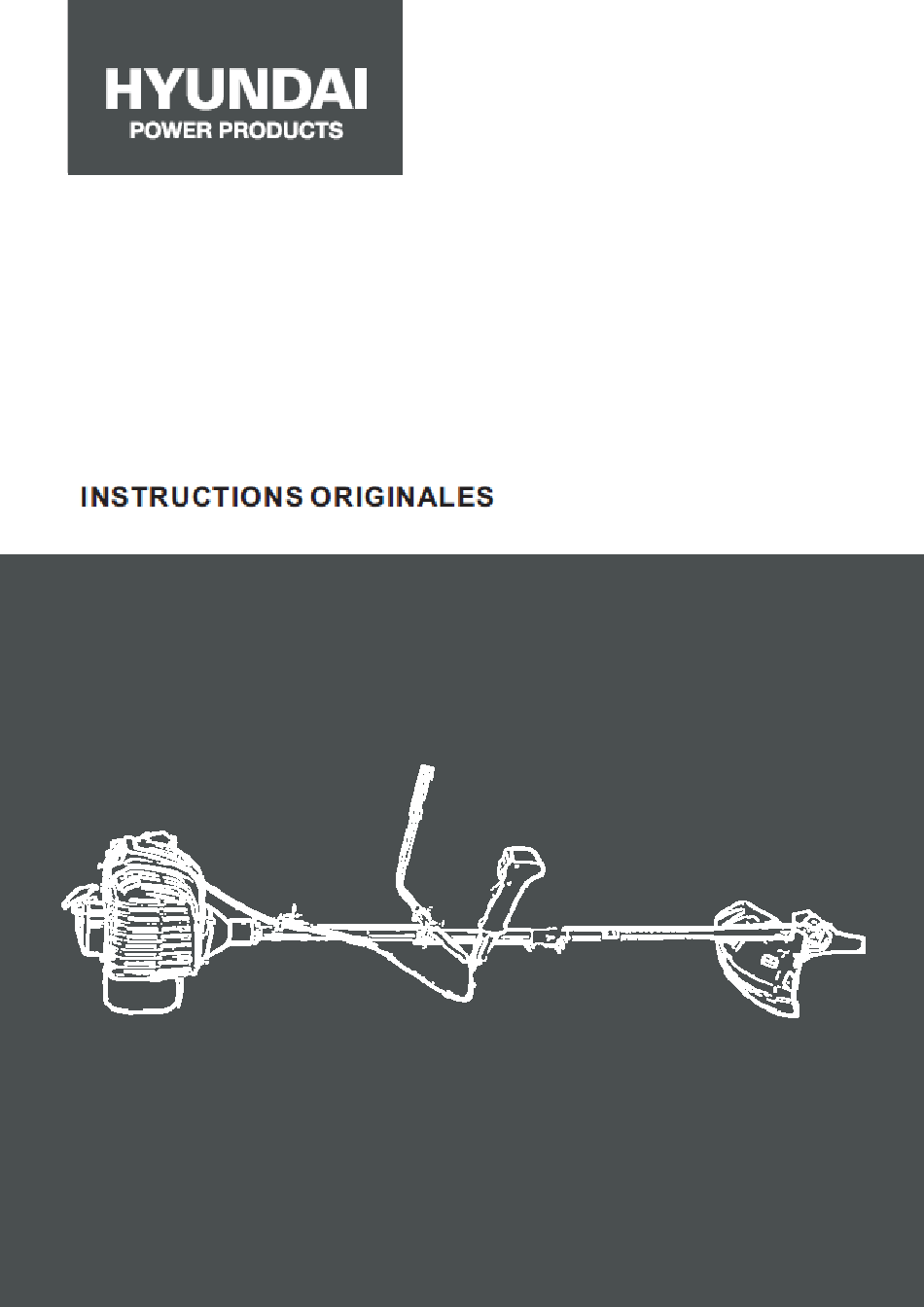

- Page 1 GASOLINE BRUSH CUTTER & GRASS TRIMMER HDBT42...
-
Page 2: Table Of Contents
CONTENT 1. SAFETY WARNINGS................3 2. PRODUCT DESCRIPTION..............7 3. ASSEMBLY....................9 4. OPERATION....................11 5. MAINTENANCE & CARE................20 6. TROUBLE SHOOTING................21 7. DECLARATION OF CONFORMITY............24 WARRANTY.....................25 9. PRODUCT FAILURE................26 10. WARRANTY EXCLUSIONS..............27... -
Page 3: Safety Warnings
1. SAFETY WARNINGS Proper safety precautions must be observed. Like all power equipment this unit must be handled carefully. DO NOT EXPOSE YOURSELF OR OTHERS TO DANGER. Follow these general rules. Do not permit others to use this machine unless they are thoroughly responsible and have read, and understand the machine manual and are trained in its operation. - Page 4 of those materials before starting the engine. Stay clear of other workers or bystanders by at least 15 meters/50 feet. • Whenever approaching an operator of the machine, carefully call his attention and confirm that • the operator stop the engine. Be careful not to startle or distract the operator which can cause an unsafe situation.
- Page 5 Envelop the blade before storage. Keep children away from it. • Never remove the machine’s guard. • Do not store in a closed area where fuel vapors can reach an open flame from hot water heaters, • furnaces, etc. Store in a locked, well-ventilated area only. Never place the machine in any places where there are flammable materials (dry grass, etc.), •...
- Page 6 Explanation of symbols This graphic accompanied by the words WARNING and DANGER calls attention to an act of a condition which can lead to SERIOUS INJURY. READ & UNDERSTAND Operator’s Manual and Safety Manual ALWAYS WEAR EYE PROTECTION, EAR PROTECTION AND HEAD PROTECTION.
-
Page 7: Product Description
2. PRODUCT DESCRIPTION a. Description 1. BLADE 3Z blade for grass, weed or brush cutting applications. Harness and plastic shield are required for blade operation 2. NYLON CUTTER HEAD Contains replaceable nylon trimming line that advances when the trimmer head is tapped against the ground while the head is turning at normal operating speed. - Page 8 Technical data MODEL HDBT42 Main unit Remote type Centrifugal Clutch; Hard transmission Maximum speed of cutter head (r/min) 8,000 Idle speed of engine(r/min) 3,000 Centrifugal speed(r/min) 3,800 Brush cutter: Measured vibration emission value at each manipulation (m/s2) - Left handle: 5.288 m/s²...
-
Page 9: Assembly
3. ASSEMBLY INSTALLING THE LOWER SHAFT 1. Pull the ring out, and then insert the attachment into the connector, make sure to fix the pin into the hole. 2. Tighten the knob bolt securely - clockwise direction. INSTALLING HANDLE Install handle in bracket. Position handle in a comfortable operating position and tighten four bolts. - Page 10 INSTALLING NYLON LINE CUTTER HEAD (FOR GRASS TRIMMING) Align hole of the upper plate with hole in shaft and put a locking tool (such as a wrench). Remove the locking nut and the lower plate. Install the line cutter head by turning it counter clockwise until it is tight. Remove locking tool.
-
Page 11: Operation
4. OPERATION RULES FOR SAFE OPERATION △ △ △ △ WARNING DANGER All models trimmers and brush cutters can throw small stone, metal or small objects as well as the material being cut. Read these “Rules for Safe Operation” with care. Follow the instructions in your operator’s manual. - Page 12 CUTTING WITH A NYLON HEAD △ △ △ △ WARNIN DANCER The proper debris shield must be in place on the unit when nylon cutting line is used, The cutting line can flap around if too much line is exposed. Always use the plastic debris shield with cut-off knife when using nylon cutting heads.
- Page 13 CUTTING WITH A NYLON HEAD TRIMMING: This is feeding the trimmer carefully into the material you wish to cut. Tilt the head slowly to direct debris away from you. If cutting up to a barrier such as fence, wall or tree, approach from an angle where any debris ricocheting off the barrier will fly away from you, Move the line head slowly until the grass is cut right up the barrier, but do not jam (overfeed) the line into the...
- Page 14 CUTTING WITH A BLADE 3-tooth metal blade metal blade are provided with the machine The metal blade is used for cutting brush and weeds up to 3/4” in diameter. Use of saw blade with this machine is prohibited. △ △ △ △ △...
- Page 15 CUTTING WITH A BLADE . This is cutting by swinging the blade in a level arc. It can quickly clear areas of field grass and weeds. Scything should not be used to cut large, tough weeds or woody growths. Do not use a brush blade to cut trees which exceed a diameter of 1/2 to 3/4 inches.
- Page 16 FUEL & OIL MIXTURE Never fill the fuel tank to the very top. Never add fuel to the tank in a closed non-ventilated area. Do not add fuel to this unit close to an open fire or sparks. Be sure to wipe off spilled fuel before attempting to start engine. Do not attempt to refuel a hot engine.
- Page 17 PREPARING FOR OPERATIONS WHEN MIXING GASOLINE WITH TWO CYCLE ENGINE OIL, USE ONLY GASOLINE WHICH CONTAINS NO ETHANOL OR METHANOL (TYPES OF ALCOHOL). THIS WILL HELP TO A VOID POSSIBLE DAMAGE TO ENGINE FUEL LINES AND OTHER ENGINE PARTS. DO NOT MIX GASOLINE AND OIL DIRECTLY IN THE ENGINE FUEL TANK.
- Page 18 OPERATIONS ENGINE STARTING AND STOPPING PROCEDURES 1. First use and cold engine start 1). Set the On / Off switch to the On position (I). Pic.A 2). Put the choke in the OFF position Pic.B 3). Press the priming pump, located under the air filter cover, about 7 to 10 times until the fuel enters the carburetor.
- Page 19 4). Pull the thrower softly until you feel a resistance, then pull with a sharp blow. Be careful to accompany the handle to avoid a sudden return of it on the engine of the machine. Pic.D 5). After the machine has started, return the choke to the ON position Pic.E 6).
-
Page 20: Maintenance & Care
5. MAINTENANCE & CARE AIR FILTER Accumulated dust in the air filter will reduce engine efficiency. Increase fuel consumption and allow abrasive particles to pass into the engine. Remove the air filter as often as necessary to maintain in a clean condition. Light surface dust can readily be removed by tapping the filter. -
Page 21: Trouble Shooting
6. TROUBLE SHOOTING Clean or replace the plug if fouled with heavy oily deposits. Replace the plug if the center electrode is worn rounded at the end. Spark gap 0.6-0.7mm (.023".028") Fastening torque = 145-155kg.cm (125-135in.lb) WARNING: Always cover the metal blade with the transportation guard while transportation and storage. - Page 22 TROUBLESHOOTING GUIDE 1. FAILURE TO START symptom probable cause remedy fuel these is no fuel in tank Add fuel in tank system fuel filter obstruct Clean fuel filter abnormality spark plug instead fuel fuel is too dirty spark fuel instead fuel normal there is water in fuel system...
- Page 23 TROUBLESHOOTING GUIDE 2. LOW OUTPUT symptom probable cause remedy flameout when speedup fuel filter obstruct, clean fuel filter 、 clean fuel road 、 fall short of fuel adjust carburetor the smoke is thin, muffler fouled with oily clean the oily deposits carburetor spout backward deposits compress press is shortage...
-
Page 24: Declaration Of Conformity
ZI, 32, rue Aristide Bergès – 31270 Cugnaux - France Tel : +33 (0)5.34.502.502 Fax : +33 (0)5.34.502.503 Declares that the machines: Gasoline Brush Cutter & Grass Trimmer Model: HDBT42 Serial No.: from XXXXX XXXXX XXXXX XXXXX The people name holding the technical file M . -
Page 25: Warranty
新的 3 页 页 页 页 质保+限定：左上方-序号改为 8、9、10...
