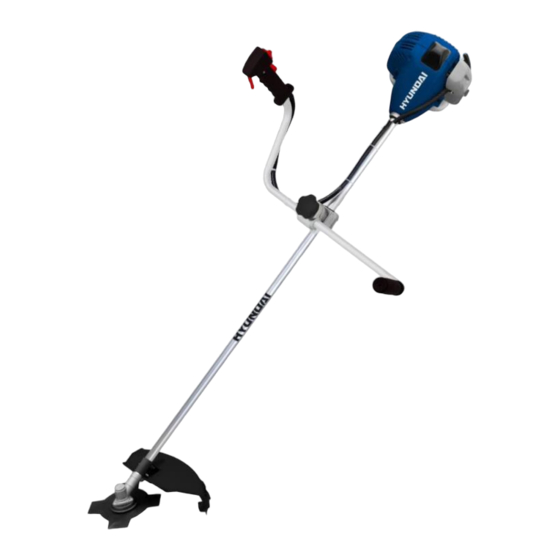

Hyundai HYBC3000 User Manual
  1. Manuals
  2. Brands
  3. Hyundai Manuals
  4. Brush Cutter
  5. HYBC3000
  6. User manual

Hyundai HYBC3000 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading

Related Manuals for Hyundai HYBC3000

Summary of Contents for Hyundai HYBC3000

  • Page 2: Table Of Contents

    CONTENTS o’s Page N Section Description 1. SAFETY 3 - 6 2. MACHINE PARTS 3. ASSEMBLY PROCEDURE 4. OPERATING PROCEDURES 1 - 1 5. MAINTENANCE 1 - 1 6. TROUBLESHOOTING 7. STORAGE 8. SPECIFICATION 9. SPARE PARTS 1 - 21 10.

  • Page 3: Safety

    1. SAFETY. 1.1. The operator of the machine; 1.1.1. Is responsible for and has a duty of care in making sure that the machine is operated safely and in accordance with the instructions in this user manual. 1.1.2. Should never leave it in a condition which would allow an untrained or unauthorised person/s to operate this machine.
  • Page 4 1.3. Carbon Monoxide 1.3.1. Carbon monoxide is a colourless and odourless gas. Inhaling this gas can cause death as well as serious long term health problems such as brain damage. 1.3.2. The symptoms of Carbon monoxide poisoning can include the following; 1.3.2.1.
  • Page 5 1.6.4. When replacing the cutting attachments or any other parts, always use a certified replacement sourced from the manufacturer. Only use genuine Hyundai spare parts. Page 5 Ver 4...
  • Page 6 1.6.5. Under no circumstances should you ever take the product apart or alter it in any way even if the item is faulty. You may damage or cause further harm by taking the product apart and you will void your warranty in doing so. 1.6.6.

  • Page 7: Machine Parts

    2. MACHINE PARTS Spark Plug Safety Trigger Air Filter Throttle Lock Choke Lever Cutting Blade Starter Pull Cord Blade Guard Primer Bulb Spool Fuel Tank Fuel Mixing Container Throttle Trigger Harness Ignition Switch Accessories: 1 x Spool; 1 x Harness; 1 x Fuel Mixing Container; 1 x Prevent Rotational Wrench;...

  • Page 8: Assembly Procedure

    3. ASSEMBLY PROCEDURE Anti-vibration systems do not guarantee that you will not sustain white finger disease or carpal tunnel syndrome. Therefore, continual and regular users should monitor closely the condition of their hands and fingers. If any of the above symptoms appear, seek medical advice immediately.
  • Page 9 3.3. Installing the Trimmer Head. 3.3.1. Make sure the HT lead is removed from the spark plug. 3.3.2. Ensure the brush cutter is switched off and be sure the engine is fully stopped. 3.3.3. Insert a ‘prevent rotational wrench’ or equivalent into the back shield and the adaptor semi-circle hole to prevent the output shaft from turning.
  • Page 10 You must make sure that the engine has stopped, allowed to cool down and disabled before commencing any maintenance work. 3.4. Refilling trimmer cord. 3.4.1. Use a replacement cord of 2.4 mm, the spool is capable of taking a cord length of 6m on the standard head.

  • Page 11: Operating Procedures

    4. OPERATING PROCEDURES Always wear correct PPE when using machine - Before starting make sure the cutting attachment is not touching anything. 4.1. Starting. 4.1.1. Set ignition switch (8) to the ON position. Push priming bulb (5) several times so that fuel flows through return the pipe.

  • Page 12: Maintenance

    4.2.5. Wear the harness as shown in the figure. The blade turns anti-clockwise, therefore, be advised operate the unit from right to left for efficient cutting. Keep onlookers out of working area at least 15m (50 ft.). In the event of an emergency press the quick release button or pull the emergency release flap.
  • Page 13 5.1.1.2. Open (anti-clockwise) the screw until the cutting attachment stops. You have reached the correct idle speed when the engine runs smoothly in all positions well below the rpm when the cutting attachment starts to rotate. 5.1.1.3. If the cutting attachment still rotates after idle speed adjustment, contact your service workshop.
  • Page 14 gap. Readjust if necessary. The correct gap is 0.6 mm. The spark plug should be replaced after 100 hours of operation or earlier if the electrodes are badly eroded. 5.6. Exhaust. Only remove exhaust when the machine has sufficient time to cool down. 5.6.1.

  • Page 15: Troubleshooting

    6. TROUBLESHOOTING. 6.1. Engine Troubleshooting - N.B. all corrective actions should be carried out by suitably qualified person/s. Problem Check Status Cause Remedy Fuel filter blocked. Clean or replace. Fuel line blocked or Clean or replace. Fuel at No fuel at clogged.

  • Page 16: Storage

    The machine is not going to be used for some time i.e. longer than 3 months. 7.1.1.2. Storing machine for the winter. Failure to do so may cause corrosion to the carburettor. 8. SPECIFICATION MODEL HYBC3000 HYBC4300 1E40F-2 - Air cooled, two 1E37F - Air cooled, two stroke, Engine Type stroke, single cylinder petrol...

  • Page 17: Spare Parts

    9. SPARE PARTS HYBC3000 HYBC3000 Page 17 Ver 4...
  • Page 18 M6x10 for HYBC3000 HYBC3000 HYBC3000-B24 HYBC3000-B06 Belt Belt pothook Handle left Handle left for pothook for HYBC3000 HYBC3000 HYBC3000-B25 HYBC3000-B07 Nut M6 for Nut M6 Spring Spring for HYBC3000 HYBC3000 HYBC3000-B26 Hex screw set HYBC3000-B08 Hex screw Accelerator Accelerator trigger...
  • Page 19 M5x22 for HYBC3000 HYBC3000 HYBC3000-T10 HYBC3000-T05 Nylon cut Nylon cut Spool wheel Spool wheel for for HYBC3000 HYBC3000 HYBC3000-T11 HYBC3000-T06 Nut M5 for Nut M5 Nylon line Nylon line for HYBC3000 HYBC3000 HYBC3000-T12 HYBC3000-T07 Spool Spool guard Spring washer Spring washer for...
  • Page 20 HYBC4300 HYBC4300 Trimmer Kit Page 20 Ver 4...
  • Page 21 HYBC4300 Description Description 6.00 Nylon strap 1.00 Position pin 1.00 Belt guard 1.00 Spring 0.98 Ripple tube 1.00 Safety lever 1.00 Accelerator cable 1.00 Switch A-1 1.00 Screw M6x10 4.00 Hex screw set M5x16 2.00 Belt pothook 2.00 Hex screw M5x25 1.00 Nut M6 1.00...

  • Page 22: Contact Details

    10. GENPOWER CONTACT DETAILS 10.1. Postal address; Genpower Limited, Isaac Way, Pembroke Dock, Pembrokeshire, SA72 4RW, UK. 10.2. Telephone contact number; Office +44 (0) 1646 687880 10.3. Email contacts; Technical service@genpower.co.uk 10.4. Web site; www.hyundaipowerequipment.co.uk Page 22 Ver 4...

  • Page 23: Declarations

    11. DECLARATIONS OF CONFORMITY 11.1. Genpower Ltd confirms that these Hyundai products conform to the following CE Directives;  2006/42/EC Machinery Directive  2004/108/EC EMC Directive  2000/14/EC Noise Emissions Directive  97/68/EC NRMM Emissions Directive 11.2. Page 23 Ver 4...
  • Page 24 GENPOWER LTD Isaac Way, London Road Pembroke Dock, UNITED KINGDOM, SA72 4RW T: +44 (0) 1646 687 880 F: +44 (0) 1646 686 198 info@hyundaipowerequipment.co.uk www.hyundaipowerequipment.co.uk...
