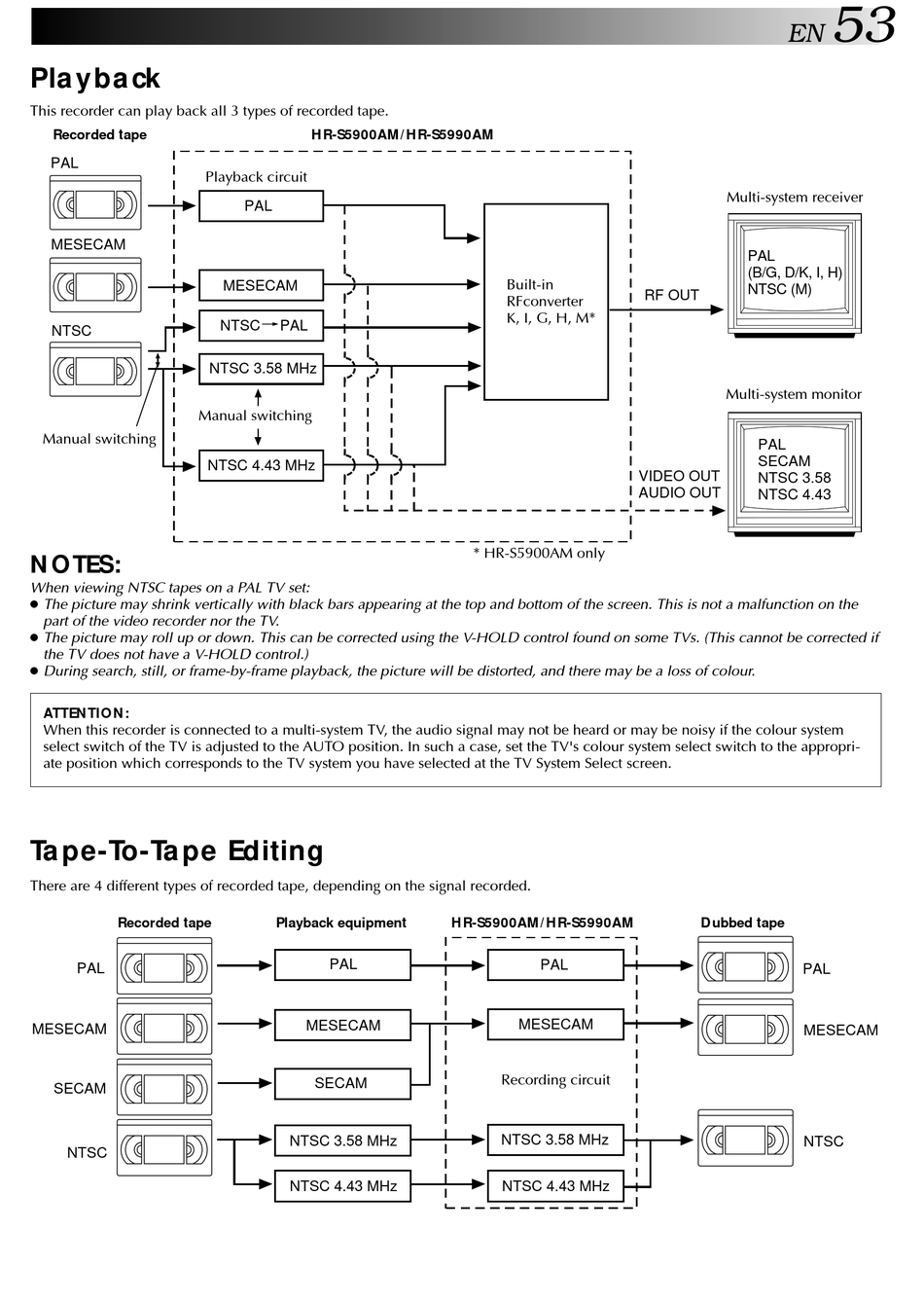

Pla yba ck
This recorder can play back all 3 types of recorded tape.
Recorded tape
PAL
MESECAM
NTSC
Manual switching
Manual switching
N O TES:
When viewing NTSC tapes on a PAL TV set:
● The picture may shrink vertically with black bars appearing at the top and bottom of the screen. This is not a malfunction on the
part of the video recorder nor the TV.
● The picture may roll up or down. This can be corrected using the V-HOLD control found on some TVs. (This cannot be corrected if
the TV does not have a V-HOLD control.)
● During search, still, or frame-by-frame playback, the picture will be distorted, and there may be a loss of colour.
ATTEN TIO N :
When this recorder is connected to a multi-system TV, the audio signal may not be heard or may be noisy if the colour system
select switch of the TV is adjusted to the AUTO position. In such a case, set the TV's colour system select switch to the appropri-
ate position which corresponds to the TV system you have selected at the TV System Select screen.
Ta pe-To-Ta pe Editing
There are 4 different types of recorded tape, depending on the signal recorded.
Recorded tape
PAL
MESECAM
SECAM
NTSC
H R-S5900AM / H R-S5990AM
Playback circuit
PAL
MESECAM
NTSC [ PAL
NTSC 3.58 MHz
NTSC 4.43 MHz
Playback equipment
PAL
MESECAM
SECAM
NTSC 3.58 MHz
NTSC 4.43 MHz
Built-in
RFconverter
K, I, G, H, M*
* HR-S5900AM only
H R-S5900AM / H R-S5990AM
PAL
MESECAM
Recording circuit
NTSC 3.58 MHz
NTSC 4.43 MHz
EN
Multi-system receiver
PAL
(B/G, D/K, I, H)
NTSC (M)
RF OUT
Multi-system monitor
PAL
SECAM
VIDEO OUT
NTSC 3.58
AUDIO OUT
NTSC 4.43
D ubbed tape
PAL
MESECAM
NTSC
