Roland VR-120HD Startup Manual

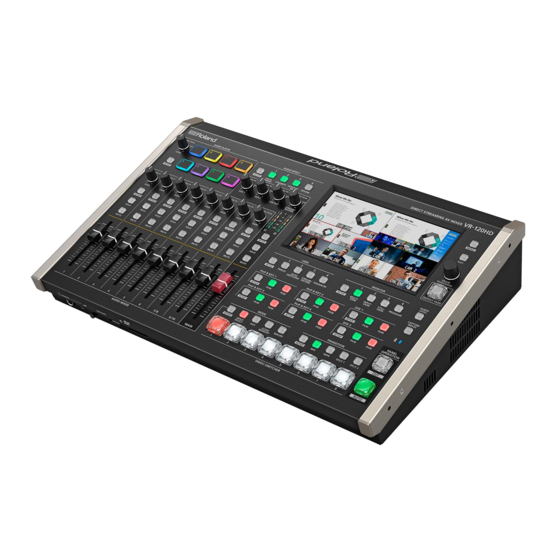

Direct streaming av mixer
Hide thumbs Also See for VR-120HD:
Table of Contents

Advertisement

Quick Links

Download this manual
Before using the unit, ensure that its system program is at the most recent version. For information on available upgrades for the system program,
see the Roland website (https://proav.roland.com/).
You can check the system program version by Pressing the [MENU] button Ó "System" Ó "Version".
Before using this unit, carefully read "USING THE UNIT SAFELY" and "IMPORTANT NOTES" (the leaflet "USING THE UNIT SAFELY" and the Startup Guide
(p. 8)). After reading, keep the document(s) where it will be available for immediate reference.
Checking the Included Items
Check that all of the included items are present. If any of the
included items are missing, contact your dealer.
 VR-120HD unit
 AC adaptor
 Power cord
 Rack-mount angle (2)
 Rack-mount angle mounting screws (6)
 Startup Guide (this document)
 Leaflet "USING THE UNIT SAFELY"
Reference Manual
Details on operations and menu lists are provided in
"Reference Manual".
1.
Enter the following URL in your computer.
https://proav.roland.com/manuals/
2.
Choose "VR-120HD" as the product name.
Startup Guide
© 2022 Roland Corporation

Advertisement

Table of Contents
loading

Related Manuals for Roland VR-120HD

Summary of Contents for Roland VR-120HD

  • Page 1 Enter the following URL in your computer. https://proav.roland.com/manuals/ Choose “VR-120HD” as the product name. Before using the unit, ensure that its system program is at the most recent version. For information on available upgrades for the system program, see the Roland website (https://proav.roland.com/).

  • Page 2: Panel Descriptions

    Panel Descriptions Top Panel AUDIO PLAYER SIG/PEAK indicators This section lets you assign sound sources such as background These indicators light up when audio output is detected. music, sound effects and so on to the pads and then play them Lit red Excessive volume (0 dB and above) back.

  • Page 3: Bluetooth®) Indicator

    Shows the setup screen in the display. You can input audio from an audio device that uses Bluetooth, or use dedicated software on your computer or iPad to remotely MONITOR control the VR-120HD. [1]–[4] buttons Switches between video signals to monitor on the built-in display (monitor).

  • Page 4: Panel Operation

    Panel Descriptions MODE VIDEO SWITCHER [1]–[8] buttons The functions of the VIDEO SWITCHER [1]–[8] buttons change The buttons change functions depending on the mode that’s according to the mode you select when pressing the buttons. selected. PANEL OPERATION [SETUP] button Shows the setup screen in the display.

  • Page 5: Rear Panel

    VR-120HD. CTL/EXP 1, 2 jacks ¹ Use the dedicated software to remotely control the VR-120HD from a You can connect a footswitch (such as a BOSS FS-6, sold computer or iPad that is connected.

  • Page 6: Basic Operation

    (one month or longer). If you want to use this unit properly record audio/video with the VR-120HD. over long periods of time, cycle the power periodically. Refer to the support page on the Roland website for the latest information on compatibility. Turning the power on https://roland.cm/vr-120hd...
  • Page 7 You can attach the included rack-mount angles to mount this unit into a 19-inch rack. Attaching the Rack-Mount Angles Points of Caution When Rack-Mounting Turn off the power of the VR-120HD, unplug the ¹ Before mounting this unit onto a rack, turn off the power of the power cord and disconnect all cables.

  • Page 8: Using The Unit Safely

    Roland dealer for service. eSOL Co.,Ltd. eParts is a trademark of eSOL Co., Ltd. in Japan. For a list of Roland service centers and official Roland dealers, refer to the Roland website. ¹ The Bluetooth® word mark and logos are registered Additional Precautions trademarks owned by Bluetooth SIG, Inc.
