Extreme Networks ExtremeMobility AP560i-FCC Quick Reference

ExtremeMobility 802.11ax/ac/abgn Outdoor
AP560i Access Point
Overview of AP560i
The AP560i is a cloud-ready, stadium-optimized Wi-Fi 6, and 802.11ax/ac/
abgn outdoor access point with internal antenna. The AP560i access point
caters to the stadium environment by supporting high density of users and
devices.
The AP560i access point offers flexible deployment options and can be
mounted under a seat, to a pole, and to a wall, thereby ensuring exceptional
mobile experience throughout the stadium.
Note: The AP560i requires a minimum base firmware of WiNG 7.1.1.
Features
The AP560i model access point has the following features:
• Radios: 2 radios (1 dual-band, 2.4GHz and 5GHz, and 1 band-locked 5GHz);
1 IoT Radio (2.4 GHz)
• Two Ethernet ports:
– 1 x 100/1000/2500/5000 Mbps auto-negotiation Ethernet port, RJ45
– 1 x 10/100/1000 Mpbs auto-negotiation Ethernet port, RJ45
• Dimensions: 11.3" x 10" x 2.9" (288 mm x 254 mm x 75 mm)
• LEDs: Two top-mounted LEDs
– All LEDs will be on during reset.
• Security locks:
– One Kensington lock
– One security hangar lock
• Power: PoE 802.3at
• Antenna:
– One omnidirectional internal antenna
• Temperature:
– -31 °F to +131 °F (-35 °C to +55 °C) operating temperature
– -40 °F to +158 °F (-40 °C to +70 °C) storage temperature
• Enclosure: Plastic only

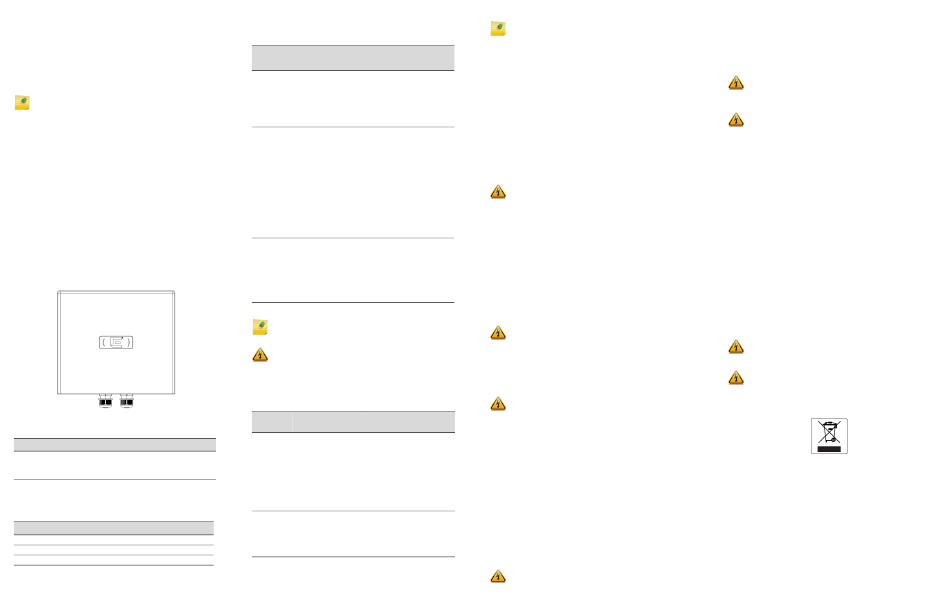

Figure 1 Front View of AP560i
Ordering Information
Table 1 AP560i Ordering Information
Part Number Description
Cloud-ready, Dual 5GHz, Dual-band, Sensor radio, Dual
Radio 802.11ax/ac/abgn, 4x4:4 MIMO Outdoor 11ax access
AP560i-FCC
point. Internal Antenna.
Domain: US
Verifying the AP560i Box Contents
Verify the contents of the box and ensure that the following items are
available:
Table 2 Contents of the AP560i Box
Quantity Item
1 AP560i Quick Reference
1 Cloud Quick Start Card
1 AP560i access point
Mounting Options
AP560i can be mounted under a seat, to a pole, and to a wall by purchasing
separate mounting brackets, which are described in the following table.
Table 3 Mounting Brackets Usage
AP560i
Mounting Under
Bracket and Wall Pole seat
Part Number Install Install Install Notes
EIO-03 under No No Yes The access point needs
seat housing; to be positioned
requires WS- horizontally for under
EIO-02 seat installation.
(#30524)
silicone
rubber kit
KT-147407-02 Yes Yes No For attaching to a wall or
bracket; a flat surface, use the
comes with bracket part that has two
three bracket holes on the surface of
parts the metal portion. For
attaching to a pole, if the
1-axis tilt is not required,
attach the pole part of
the bracket to the access
point. If 1-axis tilt is
required, attach the pole
part of the KT-147407-02
bracket on top of the
second wall part.
KT-150173-01; Yes; use Yes; use No The KT-150173-01
extension the flat the pole extension arm can also
arm; wall mount be used by itself without
used with KT- mount bracket the other KT-147407-02
147407-02 part of the part of the bracket parts.
bracket parts KT- KT-147407-
147407-02 02
bracket bracket
Note: The AP560i cannot be installed without the mounting
brackets.
Warning: When installing the access point to a wall or to a pole, the
cable glands need to face down.
AP560u and AP560m Access Point Bundles
AP560i access point can also be purchased as an under-seat or a pole-mount
access point bundle along with the mounting brackets. The following table
provides the details:
Table 4 AP560u and AP560m Ordering Details
Part
Number Access Point Bundle Description
802.11ax High-Capacity Indoor/
Outdoor AP with omni
AP560u-FCC Under seat access point
directional antenna. Targeted for
bundle
under-the-seat deployments
• AP560i-FCC access
with a small physical footprint
point
with flexible installation options
• EIO-03 under seat and IP67 protection from
housing surrounding elements such as
weather, tampering from fans,
• WS-EIO-02 (#30524)
and pressure washing.
silicone rubber kit
Two mounting options: flat or
sloped.
AP560m-FCC Pole mount access point
802.11ax High-Capacity Indoor/
bundle
Outdoor access point with IP67
• AP560i-FCC access
protection from environmental
point
elements.
Targeted for overhead and pole-
• KT-147407-02 bracket
mount deployments.
kit*
*The pole-mount KT-147407-02 bracket kit can also be used with KT-150173-01
extension arm for wall and pole installations.
Note: The KT-150173-01 extension arm needs to be purchased
separately.
For AP560u and AP560m installation instructions, refer to the respective
ExtremeMobility Access Point Quick Reference Guides in the Extreme
Networks Documentation Support site.
Professional Installation Instruction
Installation personal
This product is designed for specific application and needs to be installed by a
qualified personal who has RF and related rule knowledge. The general user
shall not attempt to install or change the setting.
Installation location
The product shall be installed at a location where the radiating antenna can be
kept 36 cm from nearby person in normal operation condition to meet
regulatory RF exposure requirement.
External antenna
Use only the antennas which have been approved by the applicant. The non-
approved antenna(s) may produce unwanted spurious or excessive RF
transmitting power which may lead to the violation of FCC/IC limit and is
prohibited.
Installation procedure
Please refer to user manual for the detail.
Warning: Please carefully select the installation position and make
sure that the final output power does not exceed the limit set force in
relevant rules. The violation of the rule could lead to serious federal
penalty.
Instructions d'installation professionnelle
Installation
Ce produit est destine a un usage specifique et doit etre installe par un
personnel qualifie maitrisant les radiofrequences et les regles s'y rapportant.
L'installation et les reglages ne doivent pas etre modifies par l'utilisateur final.
Emplacement d'installation
En usage normal, afin de respecter les exigences reglementaires concernant
l'exposition aux radiofrequences, ce produit doit etre installe de facon a
respecter une distance de 36 cm entre l'antenne emettrice et les personnes.
Antenn externe
Utiliser uniiquement les antennes approuvees par le fabricant. L'utilisation
d'autres antennes peut conduire a un niveau de rayonnement essentiel ou non
essentiel depassant les niveaux limites definis par FCC/IC, ce qui est interdit.
Procedure d'installation
Consulter le manuel d'utilisation
.
Warning: Avertissement: Choisir avec soin la position d'installation
et s'assurer que la puissance de sortie ne depasse pas les limites en
vigueur. La violation de cette regle peut conduire a de serieuses
penalites federales.
Regulatory and Compliance Information
Safety Guidelines
This section contains notices that are intended to protect your personal safety
and prevent damage to the equipment.
Qualified Personnel:
Electrical Hazard: Only qualified personnel should perform
installation procedures. Within the context of the safety notes in this
documentation, qualified persons are defined as persons who are
authorized to commission, ground, and label devices, systems, and
circuits in accordance with established safety practices and
standards. A qualified person understands the requirements and risks
involved with installing electrical equipment in accordance with
national codes.
Federal Communications Commission (FCC) Notice
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this
equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including
interference that may cause undesired operation.
This transmitter must not be co-located or operating in conjunction with any
other antenna or transmitter.
This device meets all the other requirements specified in Part 15E, Section
15.407 of the FCC Rules.
Warning: FCC Radiation Exposure Statement: This equipment
complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and
operated with minimum distance 20 cm between the radiator and
your body.
Warning: FCC Radiation Exposure Statement: This EUT is
compliant with SAR for general population/uncontrolled exposure
limits in ANSI/IEEE C95.1-1992 and has been tested in accordance
with the measurement methods and procedures specified in OET
Bulletin 65 Supplement C.
Industry Canada (IC) Notice
This device contains licence-exempt transmitter(s)/receiver(s) that comply
with Innovation, Science and Economic Development Canada's licence-
exempt RSS(s). Operation is subject to the following two conditions:
(1) This device may not cause interference.
(2) This device must accept any interference, including interference that may
cause undesired operation of the device.
Cet appareil contient des émetteurs / récepteurs exempts de licence qui sont
conformes au (x) RSS (s) exemptés de licence d'Innovation, Sciences et
Développement économique Canada. L'opération est soumise aux deux
conditions suivantes:
(1) Cet appareil ne doit pas provoquer d'interférences.
(2) Cet appareil doit accepter toute interférence, y compris les interférences
susceptibles de provoquer un fonctionnement indésirable de l'appareil.
For product available in the USA/Canada market, only channel 1~11 can be
operated. Selection of other channels is not possible.
Pour les produits disponibles aux États-Unis / Canada du marché, seul le canal
1 à 11 peuvent être exploités. Sélection d'autres canaux n'est pas possible.
The device for operation in the band 5150–5250 MHz is only for indoor use to
reduce the potential for harmful interference to co-channel mobile satellite
systems.
les dispositifs fonctionnant dans la bande 5150-5250 MHz sont réservés
uniquement pour une utilisation à l'intérieur afin de réduire les risques de
brouillage préjudiciable aux systèmes de satellites mobiles utilisant les mêmes
canaux.
Warning: IC Radiation Exposure Statement: This EUT is
compliance with SAR for general population/uncontrolled exposure
limits in IC RSS-102 and had been tested in accordance with the
measurement methods and procedures specified in IEEE 1528.
Warning: IC Déclaration d'exposition aux radiations: Cet EUT est
conforme au SAR pour les limites d'exposition de la population
générale / non contrôlée dans IC RSS-102 et a été testé
conformément aux méthodes et procédures de mesure spécifiées
dans IEEE 1528.
European Waste Electrical and Electronic Equipment
(WEEE) Notice
In accordance with Directive 2012/19/EU of the European Parliament on waste
electrical and electronic equipment (WEEE):
1 The symbol above indicates that separate collection of electrical and
electronic equipment is required.
2 When this product has reached the end of its serviceable life, it cannot be
disposed of as unsorted municipal waste. It must be collected and treated
separately.
3 It has been determined by the European Parliament that there are potential
negative effects on the environment and human health as a result of the
presence of hazardous substances in electrical and electronic equipment.
4 It is the users' responsibility to utilize the available collection system to
ensure WEEE is properly treated.
For information about the available collection system, please contact Extreme
Environmental Compliance at Green@extremenetworks.com.
