FWE TACO BELL TST-19SL-TB Quick Start

TST-19SL-TB
Legs are
adjustable
SCAN
SCAN

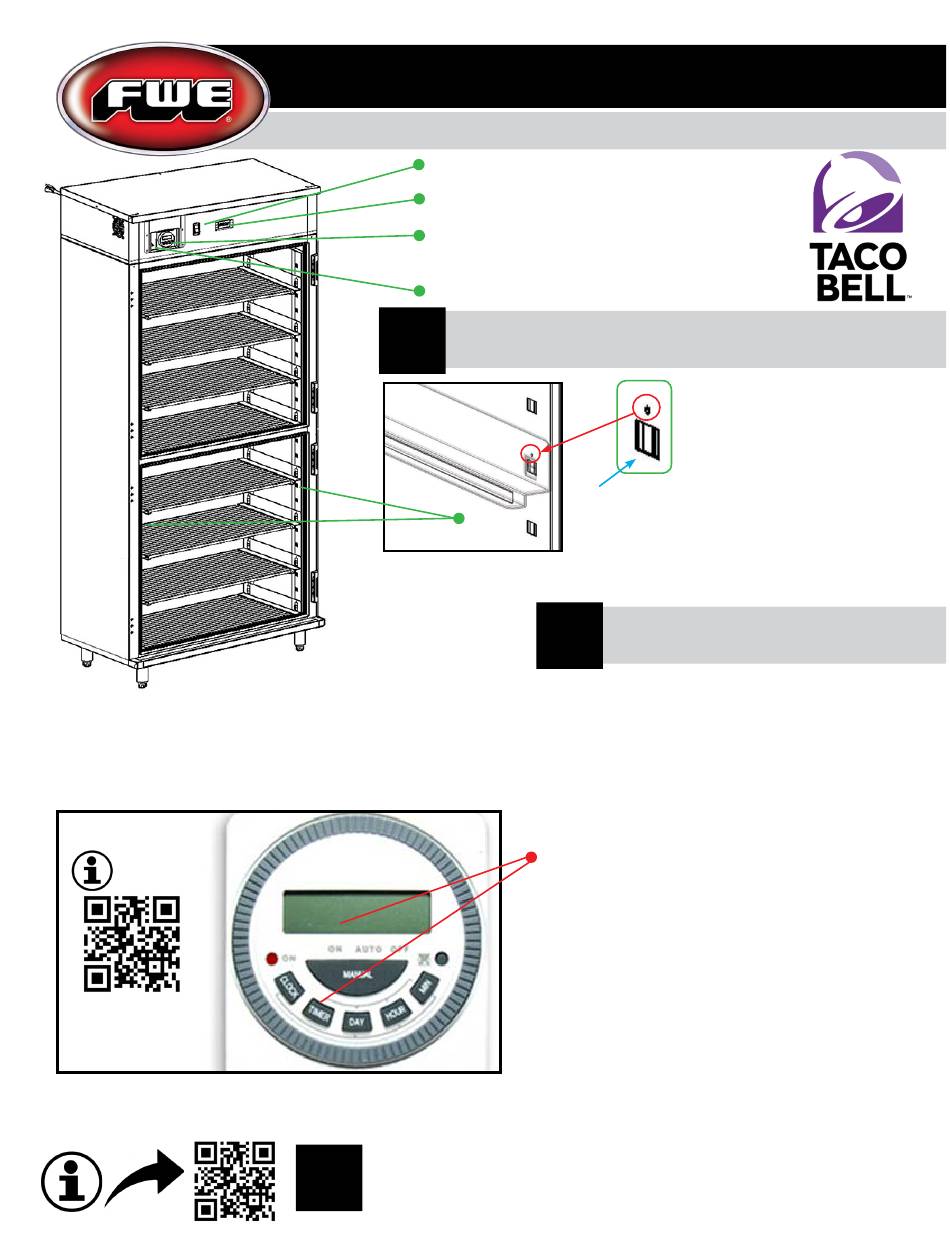

QUICK START
TST-19SL-TB
MAIN POWER SWITCH
THERMOSTAT PRESET AT 165°F
SLIDING COVER PLATE
WITH HIDDEN TIMER
TIMER SWITCH (ON/OFF OR I/O)
1
D. WITH SLIDES INSTALLED ON BOTH SIDES, PLACE SHELVES ON LOWER LEDGE OF
SLIDES TO COMPLETE INTERIOR ASSEMBLY.
1
ON/OFF
3
For full operation manual visit
www.fweparts.com/tacobell
Install Shelf Slides
A
B
2
Set-Up Timer
TO SET PRESENT TIME:
A. PRESS MAIN POWER SWITCH 'ON'.
B. PUSH TIMER SWITCH 'ON'.
C. SET TIMER TO PRESENT TIME:
a. Press 'CLOCK' and 'HOUR' at the
same time for setting the, 'HOUR'.
b. Press 'CLOCK' and 'MINUTE' at the
same time for setting the, 'MINUTE'.
c. Press 'CLOCK' and 'DAY' at the
same time for setting the, 'DAY'.
TO PROGRAM:
A. PRESS 'TIMER' TO ENTER INTO THE
PROGRAMMING MODE. THE DISPLAY WILL SHOW '1 ON'.
B. THIS IS HOW YOU TURN THE TIMER SETTINGS
ON: PRESS 'HOUR', 'MIN' & 'DAY' TO SET THE HOUR,
MINUTE AND DAY OF THE WEEK TO ACTIVATE YOUR
EQUIPMENT.
Note: Each start time needs a stop time. Proceed to step C to
program corresponding OFF time.
C. PRESS 'TIMER' AGAIN FOR SETTING THE TIME. THE
DISPLAY WILL SHOW '1OFF'.
D. REPEAT (B) ABOVE FOR THE TIME TO DEACTIVATE
YOUR EQUIPMENT.
E. PRESS 'TIMER' AGAIN TO ENTER INTO THE SECOND
TIMED PROGRAM, '2 ON', ETC.
F. REPEAT (A) THROUGH (D) TO CONTINUE SETTING
PROGRAMMED TIMES.
G. VERIFY THAT UNIT IS IN AUTO MODE AFTER
PROGRAMMING BY PRESSING MANUAL KEY.
A. SLIDE SPACINGS OF 7.5" ARE
PREMARKED FOR EASY
POSITIONING.
B. INSERT TAB ON SLIDES
INTO MARKED OPENINGS.
C. WITH BOTH SLIDE TABS INSERTED,
PRESS SLIDE DOWNWARD TO
.
SECURE INTO PLACE
QuickStart_TST-19SL-TB_R.17.01
