- Page 1 OPERATING INSTRUCTIONS HLC WITH DIXELL CONTROLS Quick Start On Page 7 Detailed Operating Manual for Controller Included Separately “HLC” SERIES WITH RADIANT HEAT SYSTEM...

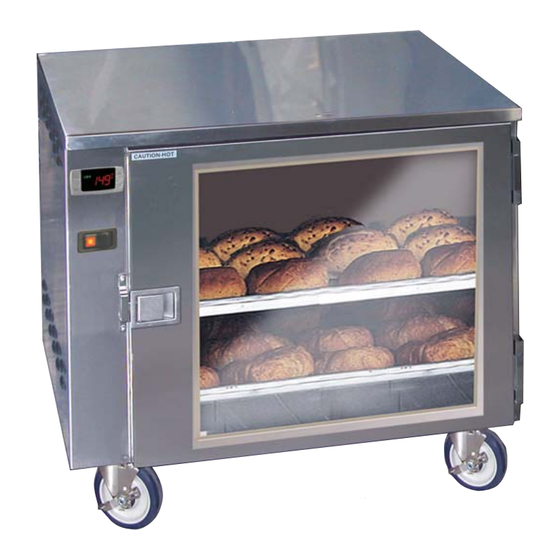

- Page 2 Lexan Door and Dixell Controller. CONGRATULATIONS..and thank you for purchasing an FWE Handy Line Compartment. Your unit has been designed and manufactured under rigid controls to assure you the most efficient service. It is a full time unit, and may be used continuously.
-
Page 3: Installation And Care
ELECTRICAL REQUIREMENTS AND GROUNDING FWE standard models operate on 110/120 volt, 60 Hz, 1 ph, A.C. (unless ordered otherwise), and are equipped with a three prong grounding cord plug for your protection against possible shock hazards. - Page 4 GENERAL OPERATING INSTRUCTIONS PREPARING THE CABINET BEFORE LOADING FOOD 1) PLUG CABINET INTO A PROPERLY GROUNDED POWER RECEPTACLE. The red indicating light will come on the main power switch. 2) SELECT A TEMPERATURE SETTING. Please refer to Dixell Quick Start on Page 7. For most foods, a holding temperature of 150°...
-
Page 5: Service Record
GENERAL OPERATING INSTRUCTIONS SERVICE RECORD 5) TRANSPORTING HOT FOODS. Your cabinet is equipped with a positive transportation latch to assure safety during transportation. Before moving the cabinet, keep it plugged in and wait until the cycling light goes off. This recovery takes only a short time, and allows the internal temperature to again reach the setting you have selected. - Page 6 GENERAL OPERATING INSTRUCTIONS CARE & MAINTENANCE OF YOUR FWE CABINET CLEANING Keep your cabinet clean by simply wiping the interior and exterior, as needed, with a damp cloth or sponge and a mild soapy solution. NEVER USE ABRASIVES, ACIDS, OR STRONG CLEANERS.
-
Page 7: Quick Start
FWE HLC WITH DIXELL CONTROLS Quick Start UICK TART ELECTRONIC HEATING CONTROL OPERATION HEATING CONTROL: When power is first turned on all LED’s and display segments light. After the control initializes, the green thermometer bulb blinks. When the heating element is turned on the green thermometer bulb symbol stops blinking. -
Page 8: Parts List
PARTS LIST FWE PARTS DEPARTMENT: 815 459 7500 CASTERS PART NUMBER 3.5'' rigid CSTR 3.5 R-5 3.5'' swivel with brake CSTR 3.5 SB-5 5'' rigid CSTR 5 R-2 5'' swivel CSTR 5 S-2 5'' swivel with brake CSTR 5 SB-2... - Page 9 FWE HLC WITH DIXELL CONTROLS SERVICE RECORD Model Number ______________________ Serial Number ______________________ Date of Purchase ____________________ Notes: ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________...
-
Page 10: Wiring Diagram
FWE HLC WITH DIXELL CONTROLS WIRING DIAGRAM BLACK CORD WHITE WHITE HEATING ELEMENT BLACK DIXELL CONTROLLER WHITE ON/OFF SWITCH... -
Page 11: Limited Two-Year Warranty
FWE HLC WITH DIXELL CONTROLS LIMITED TWO YEAR WARRANTY FWE / Food Warming Equipment Company, Inc. (Seller) warrants to the original purchaser, subject to the exceptions and conditions below, that FWE manufactured equipment shall be free from defects in material or factory workmanship, under ordinary use for the purpose for which it is designed. - Page 12 Food Warming Equipment Company, Inc. P.O. Box 1001 Crystal Lake, IL 60039-1001 Manufacturing Facilities: 7900 S. Route 31 Crystal Lake, IL 60014 FWE Parts Department: FAX: Errors subject to correction. All specifications subject to change without notice. 815 459 7989 815 459 7500 ©...
