[ 3 ] Disconnecting Cables, Removing Accessories, and Setting the Protective Part
Before starting disassembly, perform the following procedure.
(1) Disconnect the following:
- Telephone line cord, if connected
- USB cable, if connected
- LAN cable, if connected
- External memory card, if connected
(2) Remove the following:
- Paper tray ASSY 1 / 2
- Ink cartridge
- LAN port cap
- EXT cap
LAN port cap
EXT cap
Telephone line cord

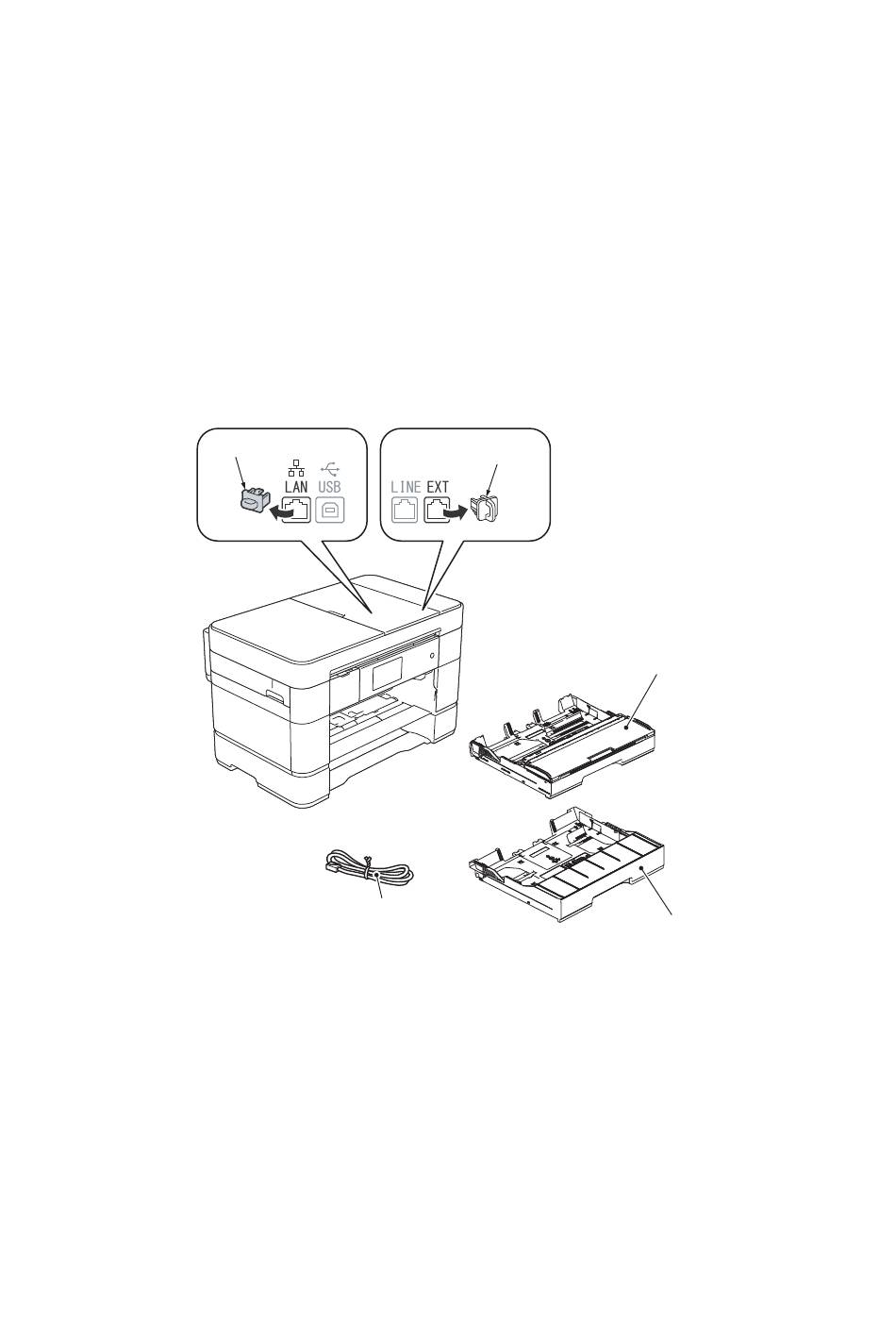

Fig. 3-1
3-25
Paper tray ASSY 1
Paper tray ASSY 2
