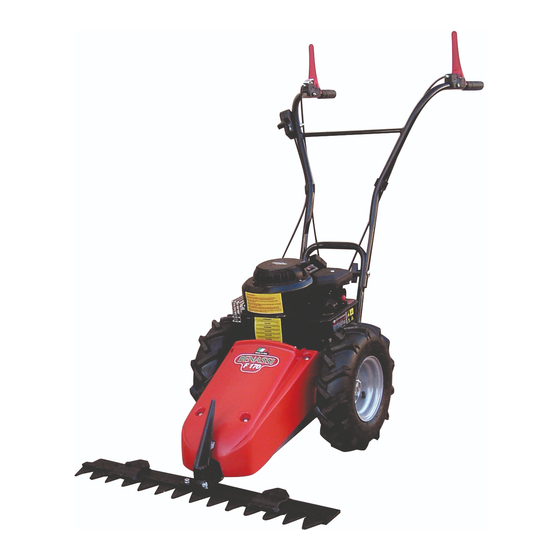

- Page 1 LIBRETTO USO E MANUTENZIONE LIBRO DE USO Y MANTENIMIENTO LIVRET D’UTILISATION ET D’ENTRETIEN BETRIEBS UND WARTUNGSANLEITUNG USE AND MAINTENANCE INSTRUCTION MOTOFALCIATRICE - MOTOSEGADORA - MOTOFAUCHEUSE BALKENMÄHER - SICKLE BAR MOWER F 170 35456440 - 17...
- Page 2 F170 PARTI DELLA MACCHINA PARTES DE LA MAQUINA COMPOSITION DE LA MACHINE ERLÄUTERUNG DER MASCHINENTEILE PARTS OF THE MACHINE 1. Leva innesto 1. Leva traccion 1. Levier enclenchement, 1. Radantriebshebel 1. Wheel engage- trazione alle ruote ruedas traction aux roues release lever 2.
- Page 3 F170...
- Page 4 F170...
- Page 5 F170...
- Page 6 F170...
- Page 7 F170 INDEX INTRODUCTION TECHNICAL DETAILS INSTRUCTION FOR MOTORHOE ASSEMBLY SECURITY TERMS STARTING AND STOPPING SAFETY DEVICE FOR STOPPING THE MOTOR USE AND ADJUSTMENT MAINTENANCE WARRANTY 10. CE DECLARATION INTRODUCTION • Dear user, thank you for preferring , The top performance and the easy use of our machine should give you any satisfaction.
-
Page 8: Technical Details
F170 TECHNICAL DETAILS FOR THE ENGINE FEATURES SEE THE ENGINE INSTRUCTION BOOKLET DELIVERED WITH THE MACHINE. • Acoustic power level LwA = 92 - 104 dB (A). • Acoustic pressure to the operator’s ear: LpA = 81 - 91,5 dB (A) •... - Page 9 F170 INSTRUCTIONS FOR MOTORHOE ASSEMBLY • Remove the power mower from its packing. • Fix the handles to the handlebar support using the two screws and two knobs pre-mounted on the handle. Make sure to position the control cables correctly. •...
-
Page 10: Security Terms
F170 SECURITY TERMS • Read carefully the operation and maintenance manual enclosed with the machine. • The use of the machine is prohibited to persons under 16 years of age. • The operator is liable for damages since the machine is under his control. •... -
Page 11: Use And Adjustment
F170 SAFETY DEVICE FOR STOPPING THE MOTOR The main function of the lever picture 7 is to turn off the motor when releasing your hands from the steering handles. In order to engage the bar, press the security button with the thumb (picture 7 Ref.D) and with the palm of the hand let the bar clutch lever down (picture 7 Ref.C) keeping it pressed on the handle. -
Page 12: Maintenance
F170 MAINTENANCE • For changing the oil and other maintenance operations on the motor (spark plugs, air filter, regulations), refer to the motor manual provided. • NB: To unscrew the oil drain plug of the motor, disassemble the rear cover (picture 8 Ref. D). •... - Page 13 F170 EC DECLARATION OF CONFORMITY The undersigned BENASSI declares under its own responsibility that the new machine Type : SIKLE BAR MOWER Model : F170 S/N : >101501 00000 complies with following Directives 2006/42/EC 2004/108/EC 2002/44/EC. Applicable standard : EN 12733 EN ISO 12100 Person in charge of documentation: R.TASSINARI...
- Page 14 F170 Contenuto busta Inhalt des Umschlags Bag contents Contenido del paquete Contenu du sachet Slitte Barra BALKENSCHLITTEN Bar shoes Guia barra Glissieres Barre Testina KOPF Head Cabeza Tete Vite SCHRAUBEN Screw Tornillo Rondella BEILEGSCHEIBE Washer Arandela Rondelle Nottolino MITNEHMER Pawl tuerca Cliquet Fermo stegola...
- Page 15 F170 VIA LAMPEDUSA, 1 - 40017 S.M.Decima (BO) – ITALY TEL: +39051820534 FAX: +390516826164 Web: www.benassi.eu e-mail: benassi@benassispa.it...
