Summary of Contents for Benassi FC 200 3VS

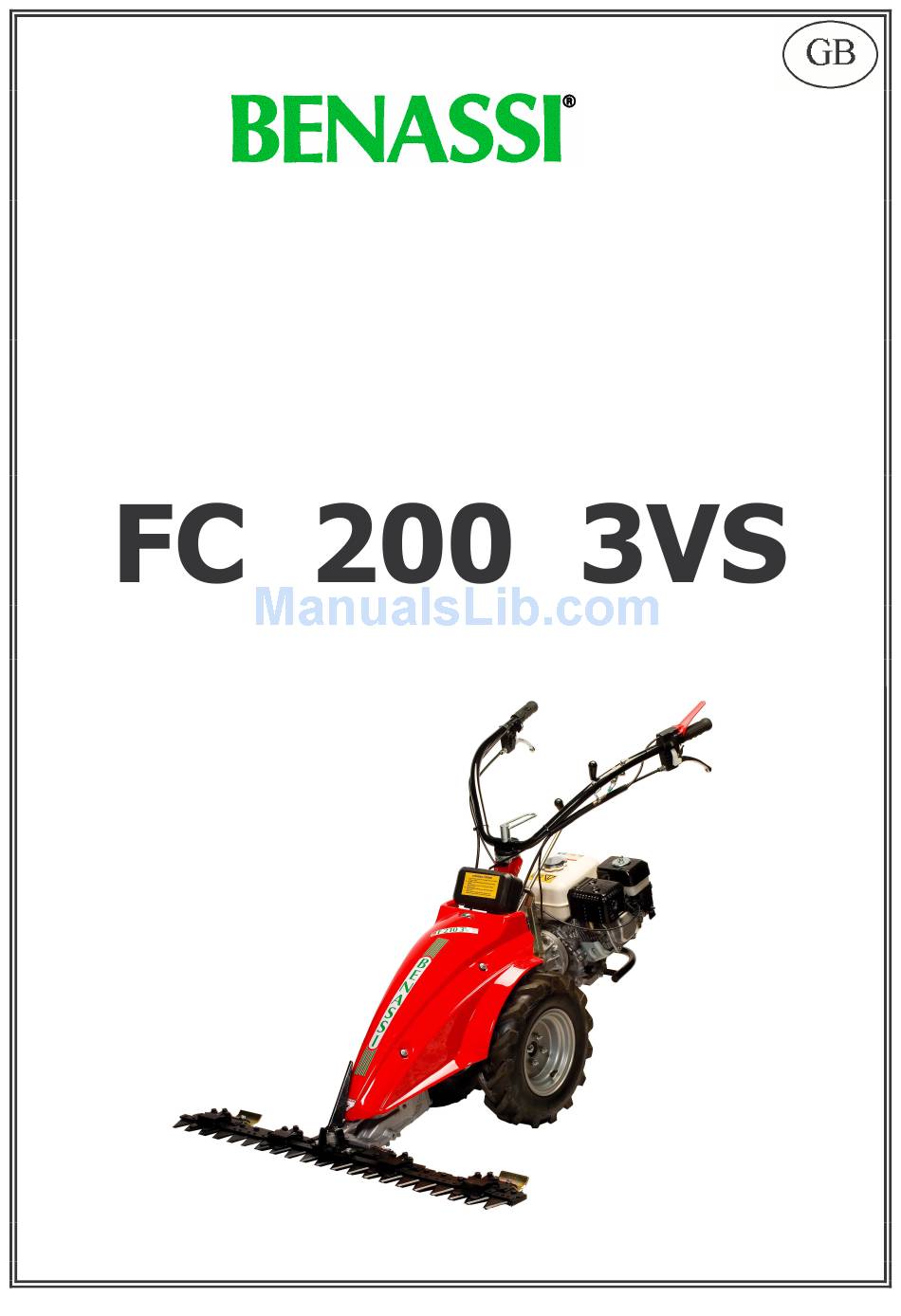

- Page 1 S.p.A. OPERATION AND MAINTENANCE MANUAL SICKLE BAR MOWER SERIES ALL VERSIONS 01/07/2008...
- Page 2 S.p.A. CONTENTS INTRODUCTION STARTING AND STOPPING THE MACHINE DETAILS OF THE MACHINE OPERATING AND REGULATING THE MACHINE IDENTIFICATION AND TECHNICAL MAINTENANCE CHARACTERISTICS ACCESSORI PACKING AND TRANSPORT WARRANTY SAFETY RULES SAFETY TESTS AND CERTIFICATION INTRODUCTION ♦ Thank you for having selected our product. We would like to welcome you among our many customers. ♦...
- Page 3 S.p.A. IDENTIFICATION AND TECHNICAL CHARACTERISTICS OR THE ENGINE FEATURES SEE THE ENGINE INSTRUCTION BOOKLET DELIVERED WITH THE MACHINE • All the engines which can be fitted on this machine have the recoil starter and protection on the exhaust. • Fuel for 4-stroke engine : Unleaded petrol •...
-
Page 4: Safety Rules
S.p.A. PACKING AND TRANSPORT WIDTH: 116 cm DEPTH: 42 cm HEIGHT: 63 cm Remove the power mower from its packing. Secure the handles with the screw (Pict. 10 Ref. “A”). The handle support is secured on anti-vibration devices (see Pict. 4 Ref. “B”). Fit the cutter bar into the machine by the quick coupling (see Pict. - Page 5 S.p.A. Every time you get ready to start the motor, make a careful check of the following: • Make sure that fuel is in the tank. • Check engine oil level. IMPORTANT: ENGINES OF NEWLY MANUFACTURED MACHINES DO NOT CONTAIN OIL. In this case, fill with oil up to the oil plug stick.
- Page 6 S.p.A. OPERATING AND REGULATING THE MACHINE Before you start mowing, oil the cutting blade, then start the motor as follows: • The release of the wheels and bar clutches should be done with the engine running at low speed. • Engaging the transmission to the wheels and the cutting bar by means of the clutch lever must be carried out with the motor at a middle r.p.m.
- Page 7 S.p.A. ACCESSORIES PAIR OF RUBBER WHEELS 4.00.8 PAIR OF RUBBER WHEELS 16/650.8 (with 50 mm spacers) PAIR OF IRON WHEELS PAIR OF “DAISY” TYPE IRON WHEELS (applies to 4.00.8 wheels only) PAIR OF 50 mm SPACERS FOR WHEELS PAIR OF 112 mm SPACERS FOR WHEELS PAIR OF HUBS FOR TWIN-WHEELS PAIR OF SIDE WINDROWING ATTACHMENTS FOR SEMI-DENSE MOWING UNIT PAIR OF EXTENSIONS FOR WINDROWING ATTACHMENTS...
- Page 8 We hereby declare that the machine complies with the essential requirements for health and safety in accordance with Directive 98/37/CE. TYPE: POWER MOWER SERIES: FC 200 3VS MODEL: FC 210 KD 3VS / FC 210 H 3VS For verification of the conformity with the above-mentioned Directives reference has been made to following specifications: UNI EN ISO 12100-1 and UNI EN ISO 12100-2;...
