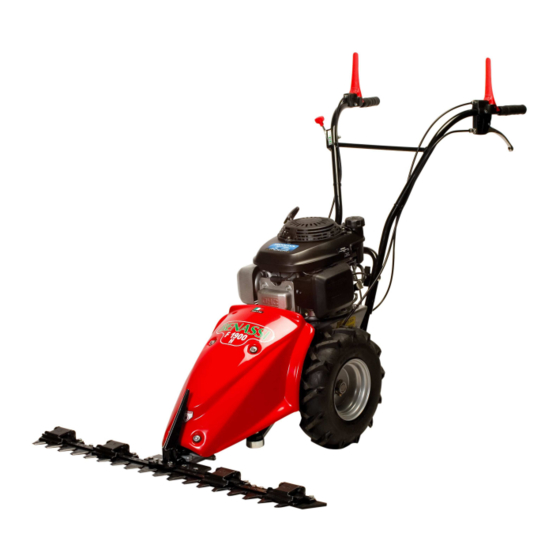

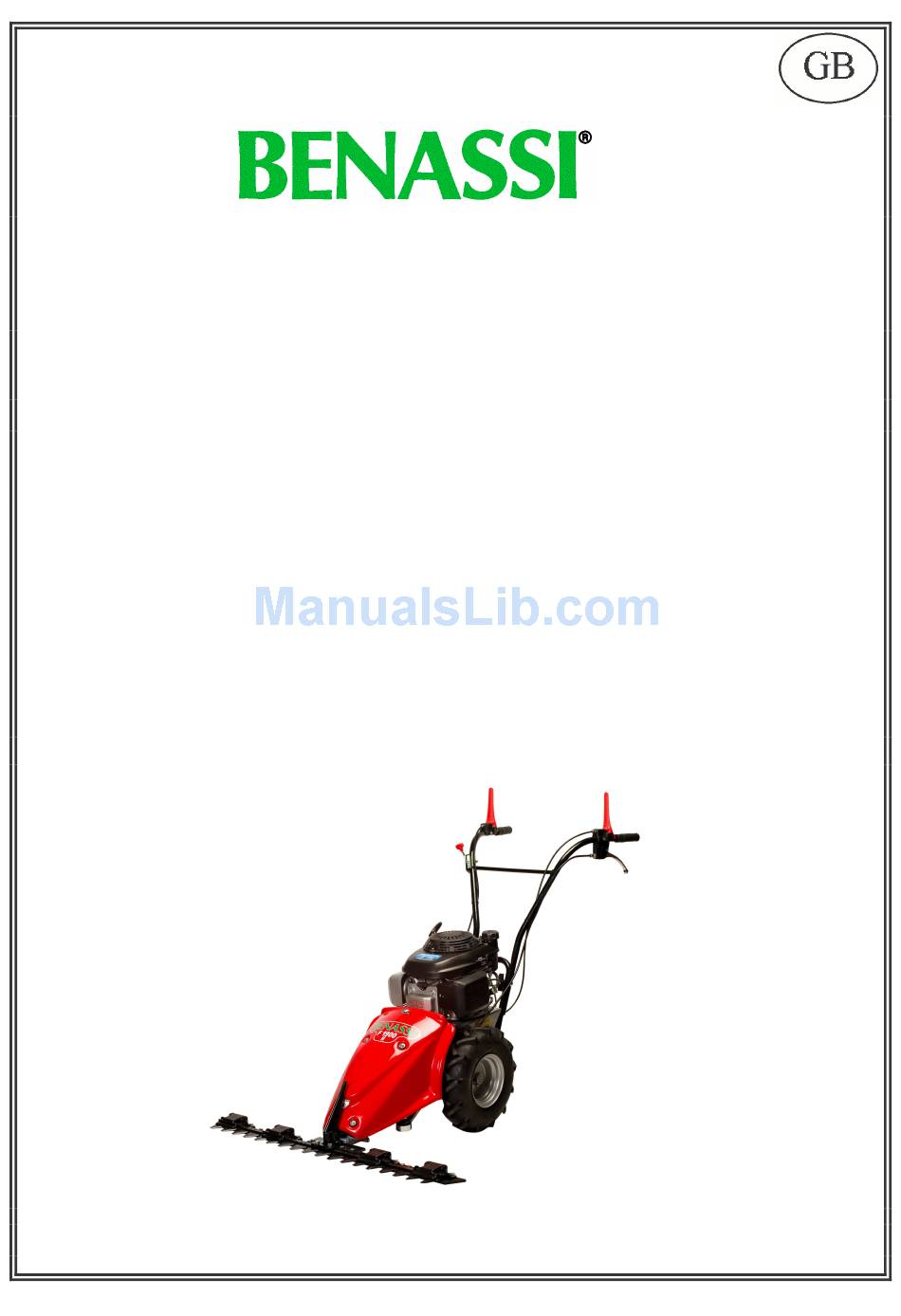

- Page 1 S.p.A. OPERATION AND MAINTENANCE MANUAL SERIES F 1900 POWER MOWER 17/12/2007...
- Page 2 F 1900 S.p.A. ♦ INTRODUCTION ♦ SAFETY DEVICE FOR STOPPING MOTOR ♦ LIST OF MACHINE PARTS ♦ OPERATING AND REGULATING THE MACHINE ♦ IDENTIFICATION AND TECHNICAL ♦ MAINTENANCE CHARACTERISTICS ♦ WARRANTY ♦ PACKING AND TRANSPORT ♦ SAFETY TESTS AND CERTIFICATION ♦...
- Page 3 F 1900 S.p.A. OR THE ENGINE FEATURES SEE THE ENGINE INSTRUCTION BOOKLET DELIVERED WITH THE MACHINE -Picture 2- • Motor fuel: unleaded petrol • Complete with self-winding start-up device • Safety device on handles to stop machine • Dry air filter •...
- Page 4 F 1900 S.p.A. WIDTH: 100 cm DEPTH: 47 cm HEIGHT: 63 cm Remove the power mower from its packing. Fix the handles to the handlebar support using the two screws and two knobs pre-mounted on the handle. Make sure to position the control cables correctly.
- Page 5 F 1900 S.p.A. • Every time you get ready to start the motor, check that the button "f" Fig. 6 is pressed, keeping both the "MOTOR STOP" lever and the clutch lever blocked. • Before you start to mow, check that the motor shuts off with the "STOP" lever raised. MOTOR STOP: lever "e"...
- Page 6 F 1900 S.p.A. • For changing the oil and other maintenance operations on the motor (spark plugs, air filter, regulations), refer to the motor manual provided. • NB: To unscrew the oil drain plug of the motor, disassemble the rear cover (Fig. 8 Ref. B). •...
- Page 7 RESULT AND TESTS TYPE POWER MOWER MODEL F 1900 H - F 1900 B Acoustic power level LwA = from 89 LdB (A) to 105 LdB (A) Acoustic pressure to the operator’s ear: LpA = from 76 dB (A) to 91 dB(A) Testing conditions height 1.6 m handle midpoint.
- Page 8 F 1900 S.p.A. S.p.A. VIA LAMPEDUSA 1 40017 S. MATTEO DELLA DECIMA (BO) - ITALY www.benassispa.it e-mail export@benassispa.it TEL. +39/051/820534 TELEFAX +39/051/820526 Dealer stamp...
