USE AND
MAINTENANCE
ROTARYMOWERS
Versions
FT 530 – FT 533
02/03/2009

Advertisement

loading

Related Manuals for Benassi FT 530

Summary of Contents for Benassi FT 530

  • Page 1 S.p.A. USE AND MAINTENANCE ROTARYMOWERS Versions FT 530 – FT 533 02/03/2009...
  • Page 2 FT 530- FT 533 S.p.A. INDEX ◊ INTRODUCTION ◊ EXPLANATION OF THE MACHINE ◊ TECHNICAL SPECIFICATIONS ◊ PACKING AND ASSEMBLING THE MACHINE ◊ SAFETY RULES AND LIMITS ◊ TRANSPORT ◊ STARTING AND STOPPING ◊ WORKING AND ADJUSTMENTS ◊ MAINTENANCE ◊ GUARANTEE ◊...

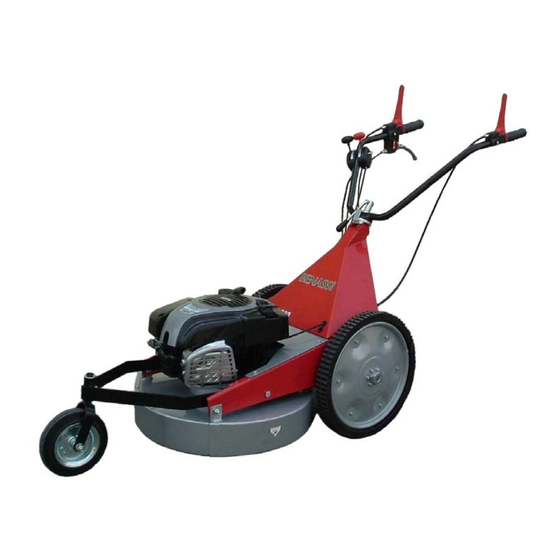

  • Page 3 FT 530- FT 533 S.p.A. EXPLANATION OF THE MACHINE: 1) Motor Stop 9) Side Discharge Guard. 2) Handle Bar 10) Recoil Starter. 3) Handle-bar adjustment 11) Mowing Height Adjustment. 4) Fuel Cap 12) Drive control Lever. 5) Oil Cap 13) Accelerator .
  • Page 4 You can adjust it, if necessary, through the screw Pos. D , Pict. 5. • In the version FT 530 you can adjust the Power drive lever, Pict. 5, Pos..A, considering that the correct adjustment is when the machine starts to move, and the hand lever is around 30° from the vertical position. If necessary, you...
  • Page 5 FT 530- FT 533 S.p.A. • WARNING! When the Drive Lever,Pos..A Pict. 5 is completely pressed, the 2 little levers of the transmission Rif."A and" B" Pict.12 should keep a margin of 2 mms. Extra. You can adjust the cable on this position working on the screw, Pos."F"...

  • Page 6: Safety Rules

    FT 530- FT 533 S.p.A. SAFETY RULES THE OPERATOR MUST ALWAYS WEAR NOISE-PROTECTIONS FOR THE HEARS. • Read carefully this User’s manual, before using the machine. • It is strictly forbidden using the machine to boys under 16 years. •...
  • Page 7 FT 530- FT 533 S.p.A. TRANSPORT • It is very easy pushing the machine – the free wheels transmission and the front support-wheel give a very smooth move. • For an easier transport in car boot, you can turn off the handle-bars, after releasing the blocking screw-lever ( see Pos.
  • Page 8 FT 530- FT 533 S.p.A. FREE WHEEL BLOCKING • The wheels are blocked through two rings at both ends of the transmission shaft. One of these rings is provided with a pivot and can be fixed in two different positions: •...

  • Page 9: Maintenance

    FT 530- FT 533 S.p.A. • Working in extreme conditions, with very high and strong grass, it could happen that the blade is blocked by the grass. In this case, you can increase the mowing height, and reduce the working width of each passage.

  • Page 10: Warranty

    FT 530- FT 533 S.p.A. • Also the front wheel should be greased, through the greasing hole, ( Pos. C in Pict.9). • Lubricate with grease the wheel-hubs , after removing the wheels from the shaft, unscrewing the screw (Pos. 14 in Pict.1),and leave some grease on the bearings.
  • Page 11 FT 530- FT 533 S.p.A. - Via Lampedusa 1 - 40010 San Matteo della Decima BO Italy We hereby declare that the machine conforms with the essential requirements for health and safety in accordance with EEC Directive 89/392 and amendments.
  • Page 12 FT 530- FT 533 S.p.A. S.p.A Via Lampedusa 1 40010 S. MATTEO DELLA DECIMA (BO) - ITALY TEL. 051/820511 TELEFAX 051/682.61.64 Web: www.benassi.eu e-mail: benassi@benassispa.it Timbro Rivenditore...

This manual is also suitable for:

Ft 533
