Summary of Contents for Benassi F 1900

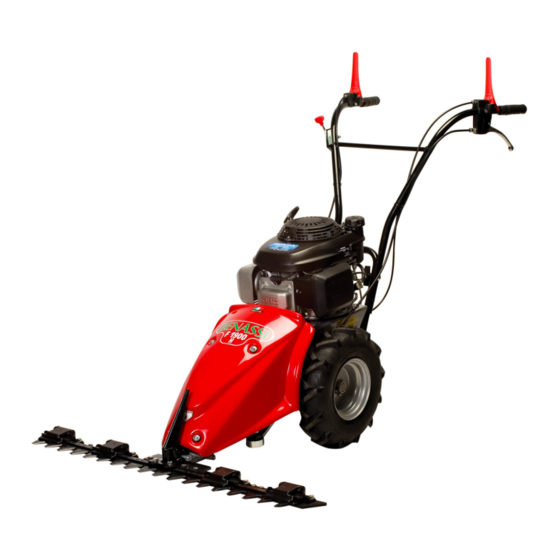

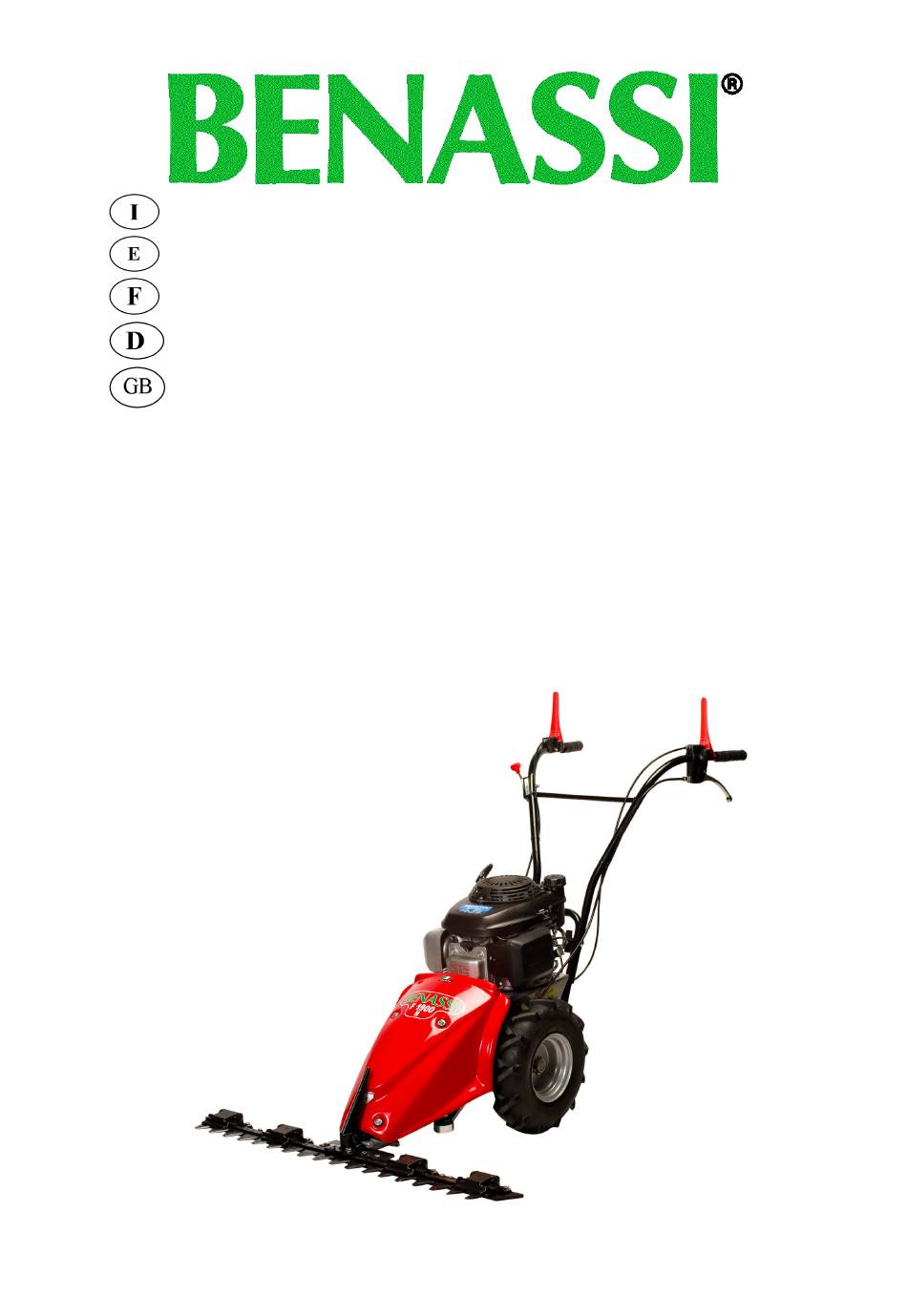

- Page 1 LIBRETTO USO E MANUTENZIONE LIBRO DE USO Y MANTENIMIENTO LIVRET D’UTILISATION ET D’ENTRETIEN BETRIEBS UND WARTUNGSANLEITUNG USE AND MAINTENANCE MANUAL MOTOFALCIATRICE MOTOSEGADORA MOTOFAUCHEUSE BALKENMÄHER SICKLE BAR MOWER F 1900 35456250_ 11/11...
- Page 2 F1900...
- Page 3 F1900 n° 1...
- Page 4 F1900 n° n° n° n° 6 n° 7 n° n° n° n° n° Ingrassatore Greaser Graisseur Engrasador SCHMIERER...
- Page 5 F1900 Conteuto della Contenido del Inhalt des Contenu du sachet Bag contents busta paquete Umschlags Fermo stegole Retenes manillar Befestigung Bloque mancherons Handlebar stop fuhrungholme Testina Cabeza Kopf Tete Head Vite Tornillo Schrauben Screw Rondella Arandela Beilegsscheibe Rondelle Washer Nottolino Tuerca Mitnehmer Cliquet...
-
Page 6: Table Of Contents
F1900 (TRANSLATED FROM THE ORIGINAL) CONTENTS 1. INTRODUCTION 2. TECHNICAL DETAILS 3. MARK CE 4. PARTS OF THE MACHINE 5. INSTRUCTION FOR MOTORHOE ASSEMBLY 6. SECURITY TERMS 7. STARTING AND STOPPING 8. USE AND ADJUSTMENT 9. MAINTENANCE 10. WARRANTY 11. CE DECLARATION INTRODUCTION •... -
Page 7: Technical Details
F1900 TECHNICAL DETAILS FOR THE ENGINE FEATURES SEE THE ENGINE INSTRUCTION BOOKLET DELIVERED WITH THE MACHINE. • Motor fuel: unleaded petrol • Complete with self-winding start-up device • Safety device on handles to stop machine • Dry air filter • Consumption at 3600 r.p.m.: 0.8 Kg/h •... -
Page 8: Parts Of The Machine
F1900 PARTS OF THE MACHINE Wheel engage lever Accelerator hand lever Handles Fuel inlet Motor ignition Grass divider Central cutting blade Oil inlet Wheel release lever Blade engage-release lever INSTRUCTIONS FOR MOTORHOE ASSEMBLY • Remove the power mower from its packing. •... -
Page 9: Security Terms
F1900 SECURITY TERMS • Read carefully the operation and maintenance manual enclosed with the machine. • The use of the machine is prohibited to persons under 16 years of age. • The operator is liable for damages since the machine is under his control. •... -
Page 10: Starting And Stopping
F1900 STARTING AND STOPPING THE MACHINE • Every time you get ready to start the motor, make a careful check of the following: • Make sure that fuel is in the tank. • Check the motor oil level: CAUTION: MACHINES OUT OF THE FACTORY DO NOT CONTAIN OIL IN THE MOTOR. -
Page 11: Use And Adjustment
F1900 USE AND ADJUSTMENT Before beginning to mow grease the moving bar with oil. Then start up the engine following the directions. • Engaging the transmission to the wheels and the cutting bar by means of the clutch lever must be carried out with the motor at a middle r.p.m. -
Page 12: Maintenance
F1900 MAINTENANCE • For changing the oil and other maintenance operations on the motor (spark plugs, air filter, regulations), refer to the motor manual provided. • NB: To unscrew the oil drain plug of the motor, disassemble the rear cover (Pict. 7 Ref. “B”). •... - Page 13 Nous soussignés Fabricants et Dépositaires de la Documentation, als Hersteller und Unterlagenbesitzer erklärt unter ihrer alleinigen Verantwortung, dass die neue Maschine The undersigned of the company BENASSI VIA LAMPEDUSA,1 40017 SAN MATTEO DELLA DECIMA BO dichiara sotto la propria responsabilità che la macchina declaramos que la maquina déclarons sous notre propre responsabilité...
- Page 14 F1900 VIA LAMPEDUSA, 1 40017 S. MATTEO DELLA DECIMA (BO) - ITALY TEL. 051 820511 (Italia) 0039 051 820534 (export) FAX 0039 / 051 / 682 61 64 www.benassi.eu e-mail: benassi@benassispa.it export@benassispa.it...
