Page 1: User Manual

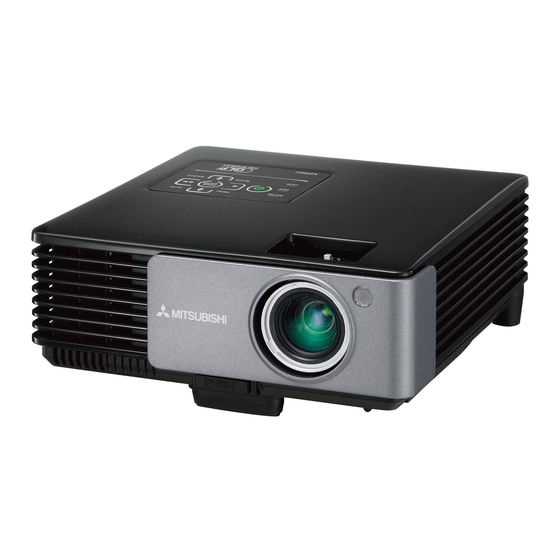

DATA PROJECTOR MODEL XD95U User Manual XD95U This User Manual is important to you. Please read it before using your projector. - Page 2 EN55022 Class B device. Please follow WARNING instructions. Your MITSUBISHI ELECTRIC product is designed and manufactured with high quality materials and components which can be recycled and/or reused. This symbol means that electrical and electronic equipment, batteries and accumula- tors, at their end-of-life, should be disposed of separately from your household waste.
- Page 3 • The lens cap is for protecting the lens. If you leave the lens cap on the lens with the projector turned on, it may be deformed because of heat build-up. Remove the lens cap when you turn on the projector.
-
Page 4: Table Of Contents
XD95U Trade Name : MITSUBISHI ELECTRIC Responsible party : Mitsubishi Digital Electronics America, Inc. 9351 Jeronimo Road, Irvine, CA 92618 U.S.A Telephone number : +1-(949) 465-6000 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 5: Important Safeguards
Water and moisture Do not use this projector near water or in contact with water. Accessories Do not place this projector on an unstable cart, stand, tripod, bracket or table. - Page 6 • Consult the dealer or an experienced Radio / TV technician for help. Changes or modifications not expressly approved by Mitsubishi could void the user’s authority to operate this equipment. COMPLIANCE NOTICE OF INDUSTRY CANADA This Class B digital apparatus complies with Canadian ICES-003.
-
Page 7: Projector Exterior View
This projector has a Kensington Security Standard connector for use with Kensington MicroSaver Security System. Refer to the information that came with the Kensington System for instructions on how to use it to secure the projector. Please contact Kensington Technology Group below. Kensington Technology Group 2855 Campus Drive San Mateo, CA 94403, U.S.A. -
Page 8: Controls And Functions
OSD menu, exits and saves menu settings. See "Using the menus" on page 18 POWER indicator light Lights up or flashes when the projector is under operation. "Indicators" on page 40 Power Toggles the projector between standby mode and on. See "Starting up the projector"... -
Page 9: Remote Control
Remote control Power Toggles the projector between standby mode and on. See "Starting up the projector" on page 17 the projector" on page 29 FREEZE Freezes the projected image. See page 28 for details. Left Selects the desired menu items and makes adjustments. See "Using the menus"... -
Page 10: Remote Control Effective Range
Remote control effective range Infra-Red (IR) remote control sensor is located on the front of the projector. The remote control must be held at an angle within 30 degrees perpendicular to the projector's IR remote control sensor to function correctly. The distance between the remote control and the sensor should not exceed 8 meters (~ 26 feet). -
Page 11: Positioning Your Projector
Mitsubishi has provided a table of 4:3-aspect-ratio screen sizes to assist you in determining the ideal location for your projector. There are two dimensions to consider, the perpendicular horizontal distance from the center of the screen (projection distance), and the vertical offset height of the projector from the horizontal edge of the screen (offset). -
Page 12: How To Determine The Position Of The Projector For A Given Screen Size
Zoom position wide. If you place the projector in a different position (to that recommended), you will have to tilt it down or up to center the image on the screen. In these situations, some image distortion will occur. Use the Keystone function to correct the distortion. - Page 13 There is 3% tolerance among these numbers due to optical component variations. Mitsubishi recommends that if you intend to permanently install the projector, you should physically test the projection size and distance using the actual projector in suit before you permanently install it, so as to make allowance for this projector's optical characteristics.
-
Page 14: Connection
The final connection path should be like that shown in the following diagram: Many notebooks do not turn on their external video ports when connected to a projector. Usually a key combo like FN + F3 or CRT/LCD key turns the external display on/off. Locate a function key labeled CRT/LCD or a function key with a monitor symbol on the notebook. -
Page 15: Connecting A Component Video Source Device
The final connection path should be like that shown in the following diagram: If the selected video image is not displayed after the projector is turned on and the correct video source has been selected, check that the Video source device is turned on and operating correctly. Also check that the signal cables have been connected correctly. -
Page 16: Connecting A Composite Video Source Device
• If the selected video image is not displayed after the projector is turned on and the correct video source has been selected, check that the Video source device is turned on and operating correctly. Also check that the signal cables have been connected correctly. -
Page 17: Operation
If the frequency/resolution of the input signal exceeds the projector's operating range, you will see the message 'Out of Range' displayed on a blank screen. Please change to an input signal which is compatible with the projector's resolution or set the input signal to a lower setting. -
Page 18: Using The Menus
Using the menus The projector is equipped with On-Screen Display (OSD) menus for making various adjustments and settings. Below is the overview of the OSD menu. Main menu icon Main menu Highlight Sub-menu Current input signal To use the OSD menus, please set them to your familiar language first. -
Page 19: Utilizing The Password Function
(if necessary) and write the password you used in this manual, and keep the manual in a safe place for later recall. Setting a password Once a password has been set, the projector cannot be used unless the correct password is entered every time the projector is started. -
Page 20: Changing The Password
Switching input signal The projector can be connected to multiple devices at the same time. However, it can only display one full screen at a time. Be sure the Quick Auto Search function in the SOURCE menu is On (which is the default of this projector) if you want the projector to automatically search for the signals. -
Page 21: Adjusting The Projected Image
Adjusting the projected image Adjusting the projection angle The projector is equipped with 1 quick-release adjuster foot and 1 rear adjuster foot. These adjusters change the image height and projection angle. To adjust the projector: Press the quick-release button and lift the front of the projector. Once the image is positioned where you want it, release the quick-release button to lock the foot in position. -
Page 22: Correcting Keystone
Keystoning refers to the situation where the projected image is noticeably wider at either the top or bottom. It occurs when the projector is not perpendicular to the screen. To correct this, besides adjusting the height of the projector, you will need to manually correct it following one of these steps. -
Page 23: Selecting The Aspect Ratio
The 'aspect ratio' is the ratio of the image width to the image height. Most analog TV and computers are in 4:3 ratio, which is the default for this projector, and digital TV and DVDs are usually in 16:9 ratio. -
Page 24: Optimizing The Image
Brightest mode: Maximizes the brightness of the projected image. This mode is suitable for environments where extra-high brightness is required, such as using the projector in well lit rooms. Presentation mode: Is designed for presentations. The brightness is emphasized in this mode to match PC and notebook coloring. -
Page 25: Fine-Tuning The Image Quality In User Modes
It enables a greater than 50% brightness increase in mid-tone images, which are common in video and natural scenes, so the projector reproduces images in realistic and true colors. If you prefer images with that quality, select On. If you don’t need it, select Off. -
Page 26: Using Wall Color
(color light meter), and provide a set of suitable source images to measure color reproduction. These tools are not provided with the projector, however, your projector supplier should be able to provide you with suitable guidance, or even an experienced professional installer. -
Page 27: Setting The Presentation Timer
Setting the presentation timer The presentation timer can indicate the presentation time on the screen to help you achieve better time management when giving presentations. Follow these steps to utilize this function: Press TIMER SET UP on the remote control or go to the SYSTEM SETUP: Basic >... -
Page 28: Hiding The Image
Locking control keys With the control keys on the projector locked, you can prevent your projector settings from being changed accidentally (by children, for example). When the Panel Key Lock is on, no control keys on the projector will operate except Power. -
Page 29: Operating In A High Altitude Environment
In cases like this, you should switch to High Altitude Mode to solve these symptoms. However, this is not to state that this projector can operate under any and all harsh or extreme conditions. -
Page 30: Menu Operation
Always/1 min/2 min/3 min/Never Top-Left/Bottom-Left/Top-Right/Bottom- Timer position Right Timer counting Count Down/Count Up direction On/Off Front Table/Rear Table Disable/5 min/10 min/15 min/20 min/25 min/30 min Disable/5 min/10 min/15 min/20 min/25 min/30 min On/Off Disable/30 min/1 hr/2 hr/3 hr/4 hr/8 hr/12 hr MITSUBISHI/Black/Blue... - Page 31 6. INFORMATION Current System Status Note that the menu items are available when the projector detects at least one valid signal. If there is no equipment connected to the projector or no signal detected, limited menu items are accessible. On/Off...
-
Page 32: Description Of Each Menu
22 for details. Pre-defined picture modes are provided so you can optimize your projector image set-up to suit your program type. See mode" on page 24 for details. Selects a picture mode that most suits your need for the image quality and further fine-tune the image based on the selections listed on the same page below. - Page 33 30 minutes and 12 hours. Allows you to select which logo screen will display during projector start-up. Three options are available: MITSUBISHI logo, Black screen, or Blue screen. Selecting On enables the function and the projector cooling time will be shortened to a few seconds.
-
Page 34: Security Settings
"Utilizing the password function" on page 19 Returns all settings to the factory preset values. The following settings will still remain: Position, Phase, H. Size, User 1, User 2, Language, Projector Position, High Altitude Mode, Security Settings. Source Shows the current signal source. -
Page 35: Maintenance
Care of the projector Your projector needs little maintenance. The only thing you need to do on a regular basis is to keep the lens clean. Never remove any parts of the projector except the lamp. Contact your dealer if other parts need replacing. -
Page 36: Lamp Information
= 1 (hours used in Low mode) + 3/2 (hours used in Standard mode) "Setting Lamp mode as Low" The lamp hour in Low mode is calculated as 2/3 of that in Standard mode. That is, using the projector in Low mode helps to extend the lamp hour by 1/2. -
Page 37: Timing Of Replacing The Lamp
The LAMP indicator light and TEMPerature indicator light will light up if the lamp becomes too hot. Turn the power off and let the projector cool for 45 minutes. If the Lamp or LAMP indicator light still lights up after turning the power back on, please contact your dealer. - Page 38 This lamp contains mercury. Consult your local hazardous waste regulations to dispose of this lamp in a proper manner. • To assure optimal performance from the projector, it is recommended that you purchase a Mitsubishi projector lamp for lamp replacement.
- Page 39 • Do not over tighten the screw. Ensure the handle is fully laid flat and locked in place. As shown in the figure, replace the lamp cover on the projector. 10. Tighten the screws that secure the lamp cover. •...
-
Page 40: Indicators
• The projector needs to cool for 90 seconds after the power is turned off. The projector has shutdown automatically. If you try to re-start the projector, it will shutdown again. Please contact your dealer for assistance. -
Page 41: Troubleshooting
You do not remember the password. Remedy Plug the power cord into the AC inlet on the projector, and plug the power cord into the power outlet. If the power outlet has a switch, make sure that it is switched on. -
Page 42: Specifications
Environmental requirements Operating temperature Operating relative humidity Operating altitude EN-42 DATA Projector XD95U 1024 x 768 XGA 1-CHIP DMD F = 2.56 to 2.67, f = 21.36 to 23.45 mm 200 W lamp AC100–240V, 2.9 A, 50/60 Hz (Automatic) 285 W (Max) 190 mm (W) x 84.2 mm (H) x 205.2 mm (D) -
Page 43: Timing Chart
Dimensions 190 mm (W) x 84.2 mm (H) x 205.2 mm (D) Timing chart Supported timing for PC input Resolution 720 x 400 720 x 400_70 640 x 480 800 x 600 1024 x 768 1280 x 1024 1280 x 800 1280 x 960 1280 x 960_60 640 x 480@67Hz... - Page 44 Supported timing for Component-YP Signal Format 480i(525i)@60Hz 480p(525p)@60Hz 576i(625i)@50Hz 576p(625p)@50Hz 720p(750p)@60Hz 720p(750p)@50Hz 1080i(1125i)@60Hz 1080i(1125i)@50Hz Displaying a 1080i(1125i)@60Hz or 1080i(1125i)@50Hz signal may result in slight image vibration. Supported timing for Video and S-Video inputs Video mode NTSC SECAM PAL-M PAL-N PAL-60 NTSC4.43 What’s included in the box AC power cord...
