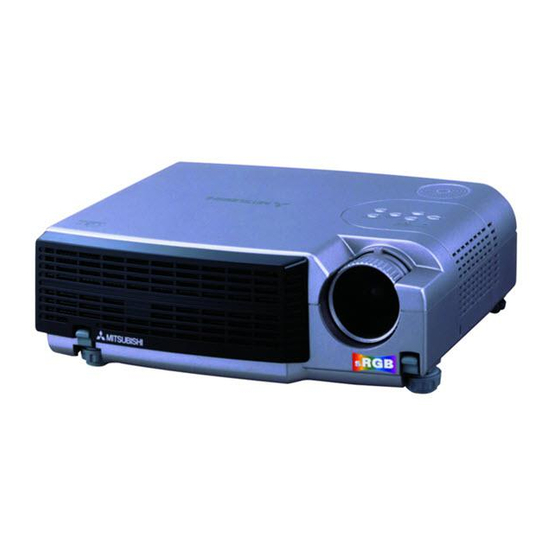

Mitsubishi SD200U User Manual

Mitsubishi data projector user manual
Hide thumbs Also See for SD200U:

Advertisement

Quick Links

DATA
Projector
User Manual
X D200
SD200
XD200U / SD200U
MODEL
EN – 1

Advertisement

Table of Contents
loading

Summary of Contents for Mitsubishi SD200U

  • Page 1 DATA Projector User Manual X D200 SD200 XD200U / SD200U MODEL EN – 1...
  • Page 2 CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. NOTE: SINCE THIS PROJECTOR IS PLUGGABLE EQUIPMENT, THE SOCKET-OUTLET SHALL BE IN- STALLED NEAR THE EQUIPMENT AND SHALL BE EASILY ACCESSIBLE. WARNING Use the attached specified power supply cord. If you use another power-supply cord, it may cause interfer- ence with radio and television reception.
  • Page 3: Table Of Contents

    What’s included in the box ... 26 Replacement part ... 26 Specification of RGB signals in each computer mode of the projector ... 27 Trademark, Registered trademark Windows 98 and Windows 95 are registered trademarks of Microsoft in the U.S. and other countries.
  • Page 4: Important Safeguards

    Water and moisture Do not use this projector near water or in con- tact with water. Accessories Do not place this projector on an unstable cart, stand, tripod, bracket or table.
  • Page 5 • Never put any heat-producing device under the projector so that the projector does not overheat. • Do not attach the projector to a place that is unstable or subject to vibration. • Do not install the projector near any equipment that produces a strong magnetic field.
  • Page 6: Overview

    Overview Control panel POWER LAMP/TEMP STATUS KEYSTONE COMPUTER AUTO POSITION POWER VIDEO Terminal board VIDEO 1 VIDEO 2 S-VIDEO MAIN AC IN VIDEO COMPUTER AUDIO IN AUDIO EN – 6 Air inlet grille (Front) Lens Foot adjustment buttons Kensington Security Lock Standard connec- Air inlet grille (Side) Speaker Control panel...
  • Page 7: Bottom Side

    RADIATION IS EMITTED FROM THIS APERTURE. Rear adjustment feet Lamp cover Front adjustment feet Caution: Do not replace the lamp right after using the projector. The lamp is very hot. Transmitter indicator Power button COMPUTER button Mouse button Right click button (For mouse)
  • Page 8: Using The Remote Control

    The range for operation is about 10 m (33 feet) when the remote control points to the projector. The distance to the screen back to the projector must be less than 6 m (20 feet). Depending on the type of screen, the effective distance may be different.
  • Page 9: Installation

    Installation Orientation of the projector Picture size can be set by changing the distance between the screen and the projector. Front projection Screen (between the screen and the head of the projector) Screen Diagonal size Height Width (inch) (inch) (inch) 40 "...
  • Page 10: Basic Connections

    Basic connections This projector can be connected to equipment such as PC, VCRs, video cameras and DVD players. Important: • Make sure that your equipment is turned off before connection. • Plug in firmly and unplug by holding the plug, not by pulling the AC power cord.
  • Page 11: Projector + Personal Computer

    Please contact your dealer. • The audio input for this projector is a stereo pin jack. (Speaker output is mono.) Please check the available cable for the audio input terminal of the PC. Some personal computer may not have the audio output terminal.
  • Page 12: Preparing The Projector For Operation

    2. Connect the power cord to the wall power outlet. 3. Remove the lens cap. Warning: • Do not look directly into the lens when projector is “ON”. • The lens cap is for protecting the lens. If you leave the power on with the cap on, the cap may be warped.
  • Page 13: To Operate Projector Power On

    POWER LAMP/TEMP POWER 1. Turn on the equipment connected to the projector. 2. Put the projector into standby mode by pressing the main power switch. The POWER indicator lights up red. 3. Turn the projector on by pressing the POWER but- ton.
  • Page 14 It will take another 60 seconds before the STATUS indicator goes off. If you wish to turn on the projector again, wait until the indicator is off then press the POWER button. • The exhaust fan rotates faster when the tempera- ture around the projector rises.
  • Page 15: Menu Operation

    Menu operation IMAGE INSTALLATION AUTO POWER OFF FEATURE CINEMA MODE SIGNAL * 1: The item can not be selected when the sRGB is set to ON. * 2: The item can not be selected with certain signals. * 3: Setting range is different with certain signals. * 4: The item can not be selected when the source is selected VIDEO or S-VIDEO.
  • Page 16 • The projector will be in the stand-by mode when the lamp is off. Use the remote control to turn on the lamp. AUTO POWER OFF .. Set the time elapsed before the projector enters into the stand-by mode when there is no signal present at the selected source.
  • Page 17 VERT. POSITION ... Use to adjust the vertical position of the image. TRACKING ... Use to avoid image noise such as wide stripes. FINE SYNC..Use to synchronize the projector with PC input signals so that the image is not blurred.
  • Page 18: Picture Adjustment

    Picture adjustment Adjusting the image You can adjust the picture by using the IMAGE menu. opt. TV60 IMAGE CONTRAST BRIGHTNESS sRGB COLOR MATRIX COLOR TEMP STANDARD TINT COLOR SHARPNESS To control the level of white-to-black in the image : Adjust CONTRAST in the IMAGE menu. Press the % button to increase the contrast and the $ button to reduce it.
  • Page 19: Adjustment From Personal Computer

    Adjustment from personal computer This projector should automatically display the full computer image on the projection screen. However, with some computers signals this may not occur, in this case press the AUTO POSITION button. If the images are still not projected correctly, use the MENU display to adjust the projected images.
  • Page 20: Advanced Features For Presentation

    Advanced features for presentation Expand By pressing the EXPAND button on the remote con- trol, you can magnify the detailed image of the picture. Using the Expand mode 1. Press the EXPAND button. • You can magnify different areas of the active pic- ture by pressing the {, }, $, % button.
  • Page 21: Mouse Remote Control

    MOUSE / RS-232C terminal • Turn off the PC and the projector before connecting to the PCs PS/2 port. If you connect the PS/2 cable when the personal computer is on, the remote control mouse may not work. In that case, turn the projec-tor on, then restart the personal computer.
  • Page 22: Lamp Replacement

    • Be sure that the projector guide is firmly inserted between the right and left lamp guides. Important: • The projector will not turn on if you do not secure the lamp lid. • You must reset the operation time meter after you replace the lamp.
  • Page 23: Indicators

    Blinking green/red Blinking Maintenance Caution: Be sure to turn off the projector and unplug the power cord from the wall outlet before you perform any main- tenance on the projector. Cleaning the projector and the ventilation grille Use a soft cloth to clean the projector and the ventila- tion grille.
  • Page 24: Troubleshooting

    The image is clogged with dust or obstructed. turned off. (In this case, the STATUS indicator does not light up.) • The projector is not at a right angle to the screen. The image is distorted. The image is dark.
  • Page 25: Specifications

    Phone : (650)572-2700 Fax : (650)572-9675 768 (Total 786,432 pixels), 500 Video lines (XD200U) 600 (Total 480,000 pixels), 500 Video lines (SD200U) : 640 x400 - 800 x 600 + Compressed 1,024 x 768 (SD200U) (burst signal) (negative sync.) or more : Y: Vp-p=1.0V (negative sync.)
  • Page 26: Connectors

    (Option / Not included in the box) Spare Mercury lamp EN – 26 RS-232C input Use to control the projector with the personal computer, or control the personal computer with remote control. Use the RS-232C cable (Mini DIN 9P- D-SUB 9P) for the connection. For more details, consult your dealer.
  • Page 27: Specification Of Rgb Signals In Each Computer Mode Of The Projector

    Specification of RGB signals in each computer mode of the projector (For XD200U) Signal mode resolution (H x V) TV60 – TV50 – 525p – 1080i – 720p – PC98 640 x 400 CGA70 640 x 400 CGA84 640 x 400...
  • Page 28 Specifications (continued) Specification of RGB signals in each computer mode of the projector (For SD200U) Signal mode resolution (H x V) TV60 – TV50 – 525p – 1080i – 720p – PC98 640 x 400 CGA70 640 x 400 CGA84...
  • Page 30 Manufactured by Mitsubishi Electric Corporation 1 Zusho Baba, Nagaokakyo-City, Kyoto Japan 871D349A10 Printed in Japan...
  • Page 31 • Turn on the projector after the computer is started up. (If you do not follow this order, the Comport may not function.) • Adapters may be necessary depending on the PC connected to this projector. Contact your dealer for details. 1) Interface...
  • Page 32 (1) Send the command from a personal computer to the projector. (The commands must be sent at least 400ms apart.) (2) The projector will send a return command 400ms* after it has received an end code. If the command is not received correctly, the projector will not send the return command.
  • Page 33 INPUT VIDEO 1 INPUT VIDEO 2 When a personal computer sends the command, data code will not be attached. On the other hand, the projector which has received a command will attach the recent operating status and then send. [Example ] Input was Video 1 when the operating status of the input terminal was confirmed.
  • Page 34 Sending commands from the PC etc. 30 30 53 0D '0' '0' 'S' ' Status code from projector 30 30 4D 55 54 45 31 0D '0' '0' 'M' 'U' 'T' 'E' '1' ' Status code from projector 30 30 53 2B 31 30 0D...
