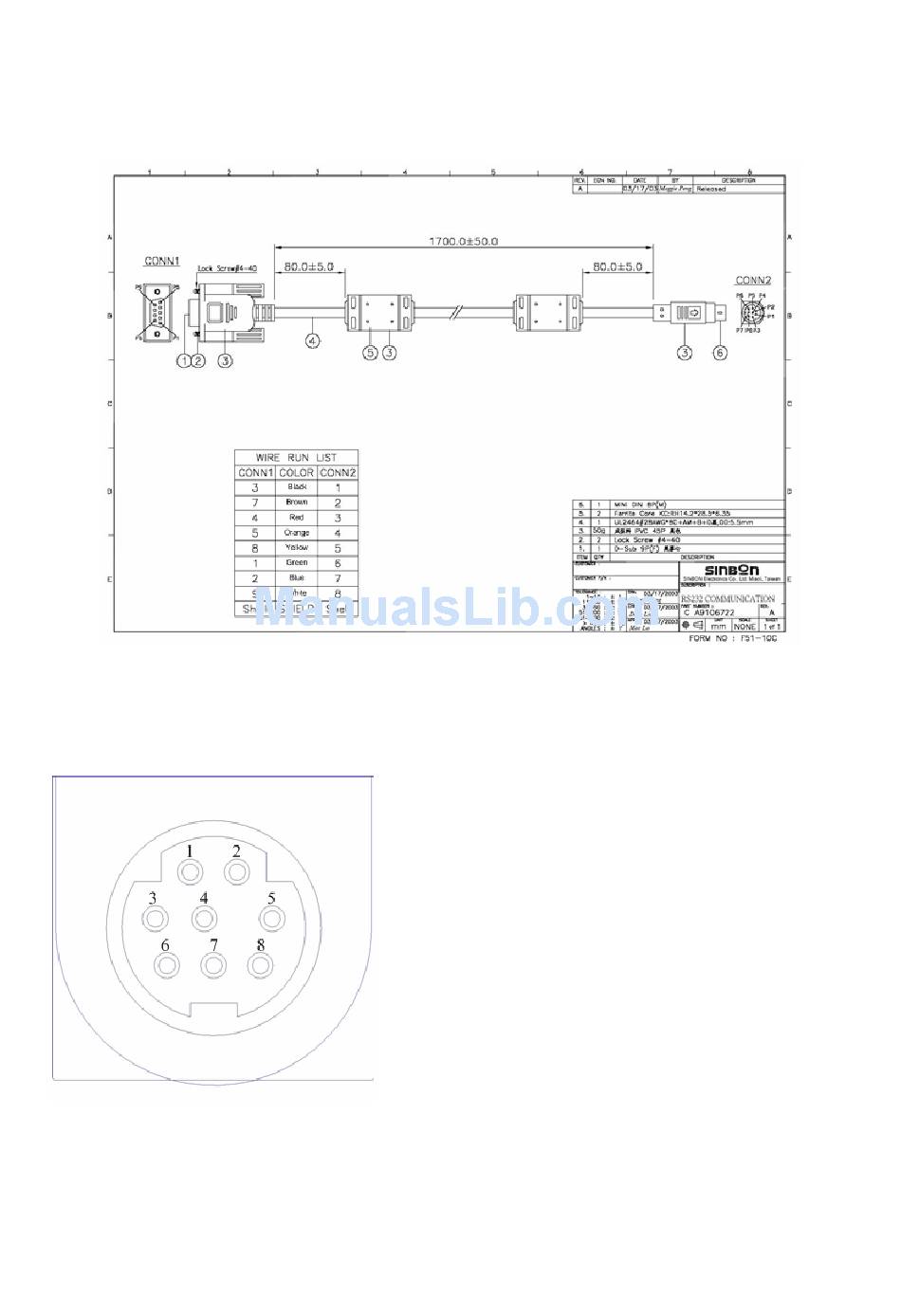

XD95U Projector – RS232 Operation Manual
1. Hardware requirement
a. Mini-DIN to DB-9 RS232 cable
b. Desktop or laptop with DB-9 connector
2. Physical layout of RS232 connector
a. Projector-side female connector pin definition
Pin 1 – PC RS232 TX (Projector RS232 RX)
Pin 4, 8 – GND
Pin 7 – PC RS232 RX (Projector RS232 TX)
Other Pins – floating
b. PC-side male connector pin definition
1
Advertisement
Related Manuals for Mitsubishi XD95U
Summary of Contents for Mitsubishi XD95U
- Page 1 XD95U Projector – RS232 Operation Manual 1. Hardware requirement a. Mini-DIN to DB-9 RS232 cable b. Desktop or laptop with DB-9 connector 2. Physical layout of RS232 connector a. Projector-side female connector pin definition Pin 1 – PC RS232 TX (Projector RS232 RX) Pin 4, 8 –...
- Page 2 Pin 2 – PC RS232 TX Pin 3 – PC RS232 RX Pin 5 – GND Other Pins -- floating 3. Setup for RS232 communication a. Baud rate – 115200 bps b. Data bits – 8 bits c. Parity – none d.
- Page 3 d. Select “115200” bps for baud rate and “none” for flow control...
- Page 4 e. Input a valid RS232 command (refer to next section – RS232 command list) at terminal window...
- Page 5 6.Press Enter right after ">" wouldn't get any echo 7.Press Space after ">" then Enter would echo“Illegal format＂ Notice XD95U can detect the capital letter and the small letter for input character, but ACK is only the capital letter. State(The command is acceptable in green state.)
