Delta 160 T6 Series Installation Instructions Manual

13
14
15
4
2
Slip Joint Nut Installation
PLEASE LEAVE this sheet with the owner,
maintenance plumber, etc. as items
relating to ongoing maintenance suggestions
and procedures are included.
Electronic
Concealed
Flushvalve
9
8
23
11A 11B
10
12A
1
16
18
6
17
3
19
20
5
Optional Filter
Screen
22
160 __ T6 __ __ __ Series
25
26
21
12B
24VAC
6.4 VDC
24

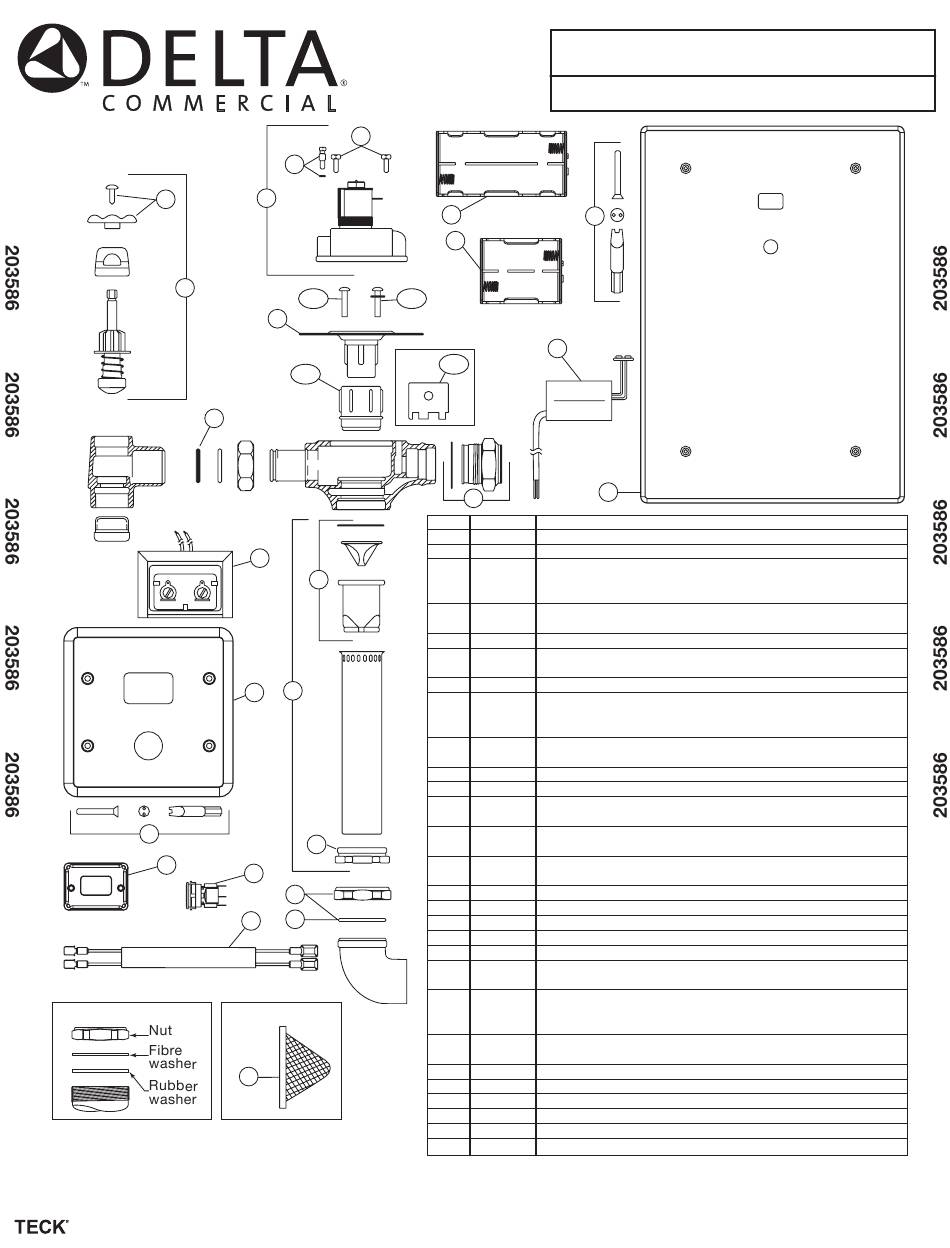

Item # Part # Description
76600 Universal TECK washers and "O" rings repair kit
76601 Universal TECK parts washers and "O" rings repair kit
1 30393 Transformer (110 to 24V A.C.) for 5 sensor modules*
30558 Transformer (110 to 24V A.C.) for 10 sensor modules*
30559 Transformer (110 to 24V A.C.) for 25 sensor modules*
2 060677A Sensor module – urinal flush valve
060678A Sensor module – water closet flush valve
3 060679A Over-ride button assembly
4 060072A 4 pieces No. 6 – 32 x 2" flat head stainless steel screws and security
spanner bit package for 124mm (4 7/8") cover
5 060680A Solenoid Extension Wire
6 060672A 4 7/8" x 4 7/8" (shown) stainless steel cover with studs and screws
060674A 14" x 14" (not shown) stainless steel cover with studs and screws
060675A 14" x 20" (shown) stainless steel cover with studs and screws
7 060073A 4 pieces No. 10 – 32 x 2" flat head s/s screws and security spanner bit
package for 356mm (14") covers
8 70278 Regulating screw and "O" ring
9 060078A Screw for cast cap (12 pcs.)
10 70230 Diaphragm/Guide Assembly Complete
060079A Diaphragms only (12 pcs.)
11A 060507A Water closet poppet pin pack (3/pkg)
11B 060508A Urinal poppet pin pack (3/pkg)
12A 060182A Brass renewable seat with gasket
12B 060096A Wrench for brass renewable seat
13 70303 Handle and screw
14 190041A Retro-fit check stem unit, capnut and handle complete
15 060082A "O" rings (20 pcs.)
16 70267 Vacuum breaker sleeve complete
17 060094A Coupling ring
18 70255 1 1/2" x 10" V.B., coupling ring and tube complete
70257 1 1/2" x 22 3/4" V.B., coupling ring and tube complete
19 70227 1 1/2" rough coupling nut and washer
50023 1 1/4" rough coupling nut and washer
060463A 3/4" polished chrome coupling nut, 3/4" washer and 3/4" spud flange
20 060083A 1 1/2" rubber slip joint washers (12 pcs.)
060049A 3/4" rubber and fibre slip joint washers (12 pcs.)
21 060683A 24VAC to 6VDC converter
22 060344A Filter screen kit (12/pkg)
23 060682A Electronic flush valve cap assembly with screws
24 060342A Plug and "O" ring for handle end
25 060681A Flat battery holder (4 "C" cell batteries)
26 060684A Square battery holder (4 "C" cell batteries)
NOTE: Refer to TECK flushometer repair parts and maintenance manual for additional
parts and information.
*Each individual sensor module requires its own 24VAC to 6VDC hardwire converter.
www. specselectonline.com
Page 1 of 6
Write purchase model number here for future reference
7
6
203586
Rev.A
