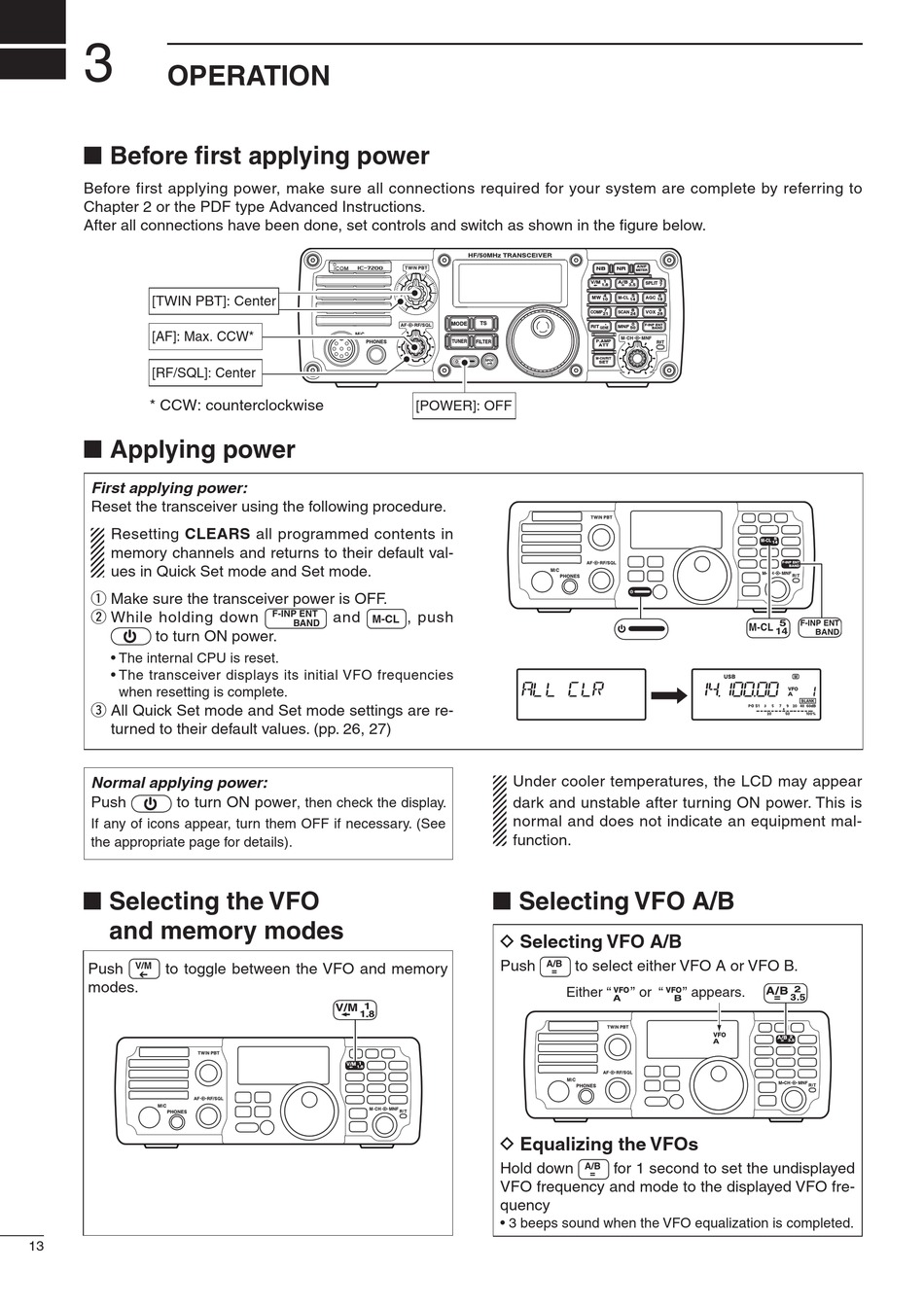

OPERATION

Before first applying power

■
Before first applying power, make sure all connections required for your system are complete by referring to
Chapter 2 or the PDF type Advanced Instructions.
After all connections have been done, set controls and switch as shown in the figure below.
[TWIN PBT]: Center
[AF]: Max. CCW*
[RF/SQL]: Center
* CCW: counterclockwise
■

Applying power

First applying power:
Reset the transceiver using the following procedure.
Resetting CLEARS all programmed contents in
memory channels and returns to their default val-
ues in Quick Set mode and Set mode.
q Make sure the transceiver power is OFF.
w While holding down
to turn ON power.
• The internal CPU is reset.
• The transceiver displays its initial VFO frequencies
when resetting is complete.
e All Quick Set mode and Set mode settings are re-
turned to their default values. (pp. 26, 27)
Normal applying power:
Push to turn ON power
If any of icons appear, turn them OFF if necessary. (See
the appropriate page for details).
■
Selecting the VFO
and memory modes
V/M
Push to toggle between the VFO and memory
modes.
13
i7200
F-INP ENT
and , push
M-CL
BAND
, then check the display.
ANF
NB NR
METER
V/M 1 A/B 2 3
SPLIT
1.8 = 3.5 7
4 5 6
MW M-CL AGC
10 14 18
7 8 9
COMP SCAN VOX
21 24 28
.
MODE TS 0
F-INP ENT
RIT MNF
GENE
50 BAND
TUNER FILTER P.AMP
ATT
M-CH/RIT
SPCH
SET
MODE TS
TUNER FILTER
SPCH
[POWER]: OFF
Under cooler temperatures, the LCD may appear
dark and unstable after turning ON power. This is
normal and does not indicate an equipment mal-
function.

Selecting VFO A/B

■
Selecting VFO A/B
D
A/B
Push to select either VFO A or VFO B.
Either "
D
Equalizing the VFOs
A/B
Hold down
VFO frequency and mode to the displayed VFO fre-
quency
• 3 beeps sound when the VFO equalization is completed.
