2.2.1
ADC Operational Mode
By default, the ADC is configured to operate in parallel-mode operation, since jumper (JP11) asserts a
3.3V state to the ADC reset pin. Consequently, the SW1 reset pushbutton must be pressed only when the
device is configured in serial operation mode. Since the ADC is in parallel operation mode, voltages are
used to set the ADC configuration modes. Users can use the information printed on the EVM silkscreen to
set the operation modes.
SLAU237A – May 2008 – Revised April 2009
Submit Documentation Feedback

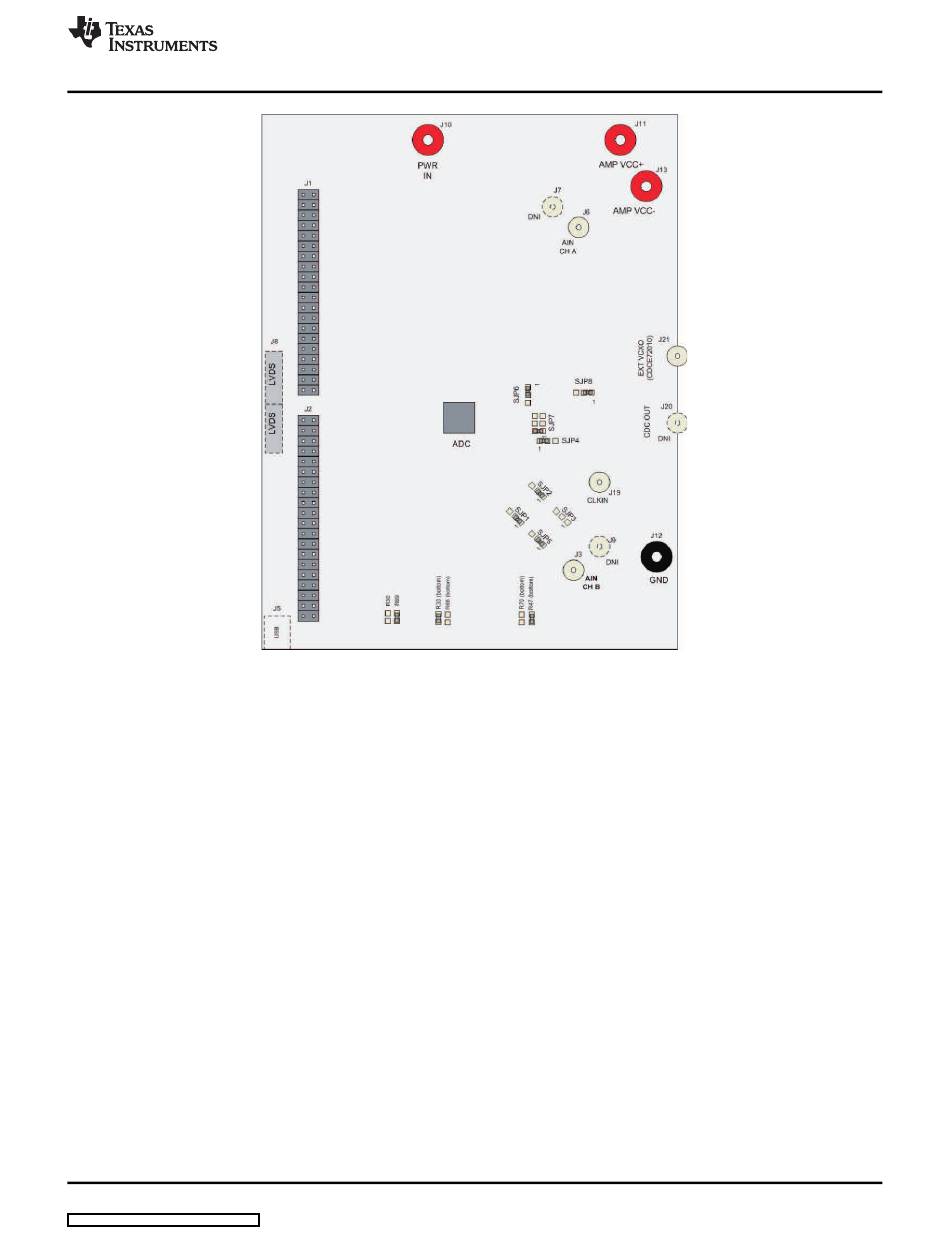

Figure 2. ADS62PXX Surface Jumpers
Circuit Description
ADS62PXXEVM
9
