2.
2.3.2
Mounting the Device to a Panel
For panel installations, the RUGGEDCOM RS401 can be equipped with panel/DIN rail
adapters pre-installed on each side of the chassis. The adapters allow the device to
be attached to a panel using screws.
Note
The device is available with a front panel or side panel mount option.
To mount the device to a panel, do the following:
1.
RUGGEDCOM RS401
Installation Manual, 11/2022, C79000-G8976-1017-12
Panel/DIN Rail Adapter
1
DIN Rail
2
Screw
3

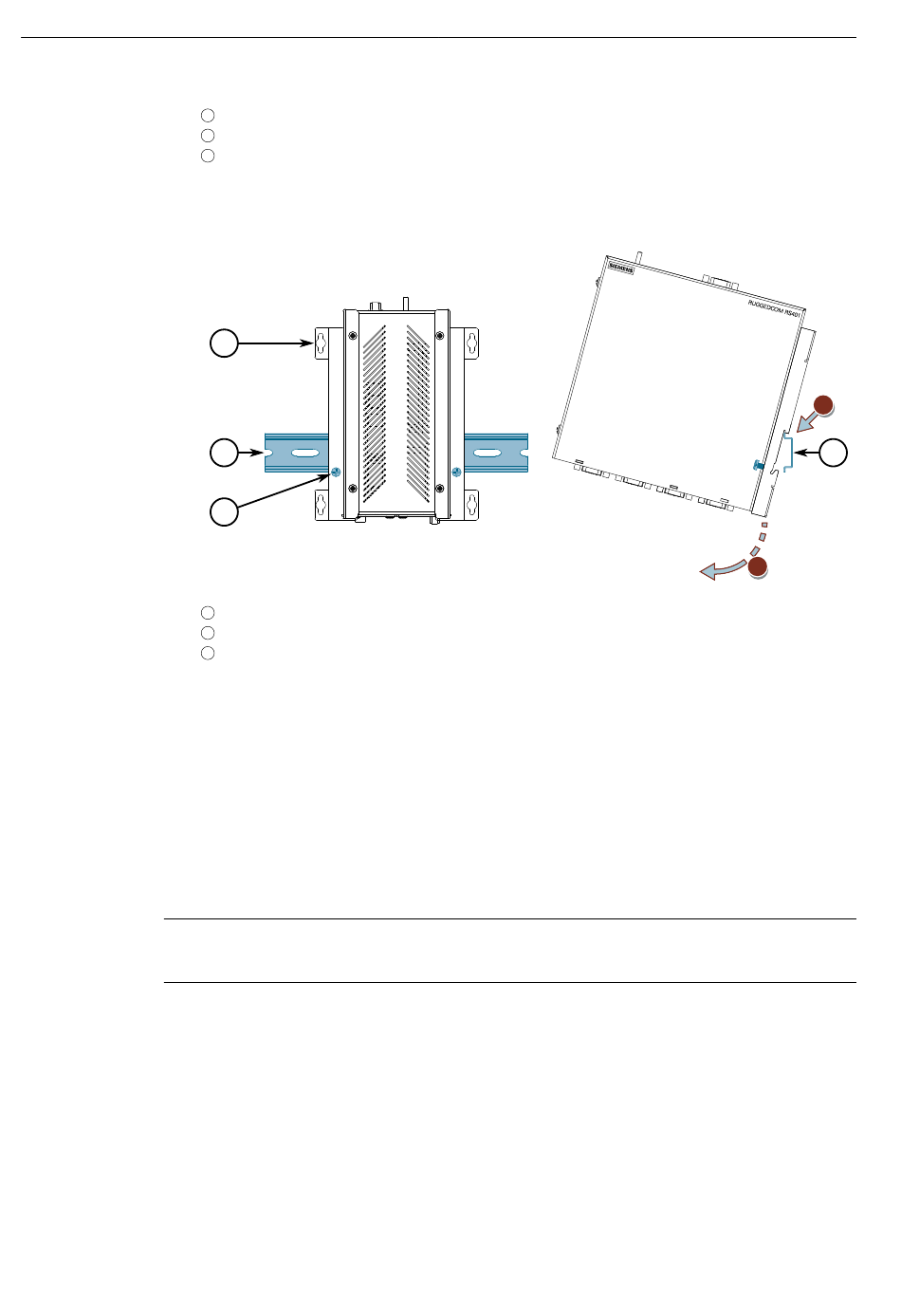

Figure 2.3
Removing the Device from a DIN Rail (Front Panel Mount Option)
1
2
3
Panel/DIN Rail Adapter
1
DIN Rail
2
Screw
3
Figure 2.4
Removing the Device from a DIN Rail (Side Panel Mount Option)
Lift the device off the DIN rail.
Place the device against the panel and align the adapters with the mounting
holes.
Installing the Device
2.3.2 Mounting the Device to a Panel
2
2
1
11
