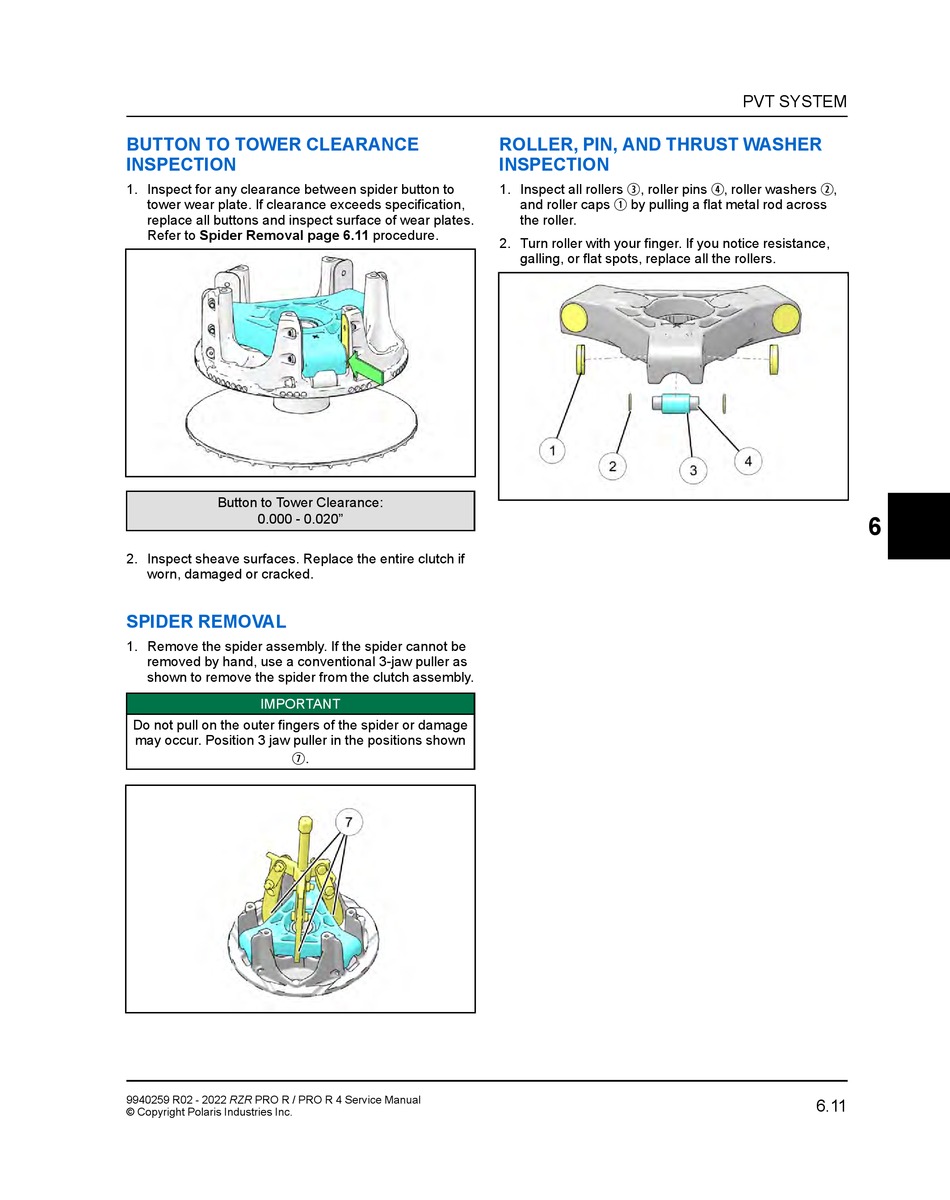

BUTTON TO TOWER CLEARANCE
INSPECTION
1. Inspect for any clearance between spider button to
tower wear plate. If clearance exceeds specification,
replace all buttons and inspect surface of wear plates.
Refer to Spider Removal page 6.11 procedure.
Button to Tower Clearance:
0.000 - 0.020"
2. Inspect sheave surfaces. Replace the entire clutch if
worn, damaged or cracked.

SPIDER REMOVAL

1. Remove the spider assembly. If the spider cannot be
removed by hand, use a conventional 3-jaw puller as
shown to remove the spider from the clutch assembly.
IMPORTANT
Do not pull on the outer fingers of the spider or damage
may occur. Position 3 jaw puller in the positions shown
u
.
9940259 R02 - 2022 RZR PRO R / PRO R 4 Service Manual
© Copyright Polaris Industries Inc.
ROLLER, PIN, AND THRUST WASHER
INSPECTION
e
1. Inspect all rollers , roller pins
q
and roller caps by pulling a flat metal rod across
the roller.
2. Turn roller with your finger. If you notice resistance,
galling, or flat spots, replace all the rollers.
PVT SYSTEM
r w
, roller washers ,
6
6.11
