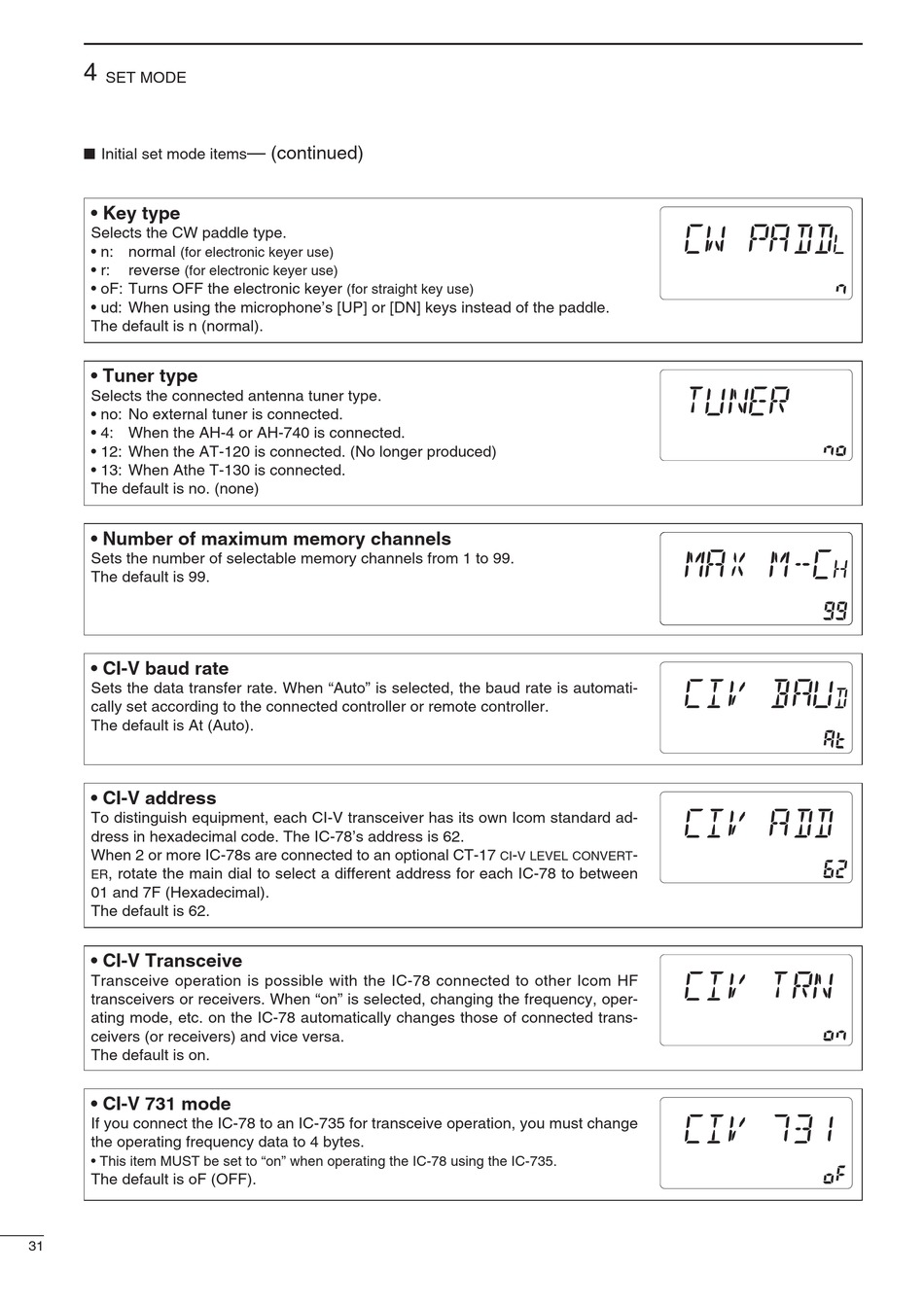

Icom IC-78 Instruction Manual page 34

4
SET MODE
n
Initial set mode items
• Key type
Selects the CW paddle type.
• n: normal
(for electronic keyer use)
• r: reverse
(for electronic keyer use)
• oF: Turns OFF the electronic keyer
• ud: When using the microphone's [UP] or [DN] keys instead of the paddle.
The default is n (normal).
• Tuner type
Selects the connected antenna tuner type.
• no: No external tuner is connected.
• 4: When the AH-4 or AH-740 is connected.
• 12: When the AT-120 is connected. (No longer produced)
• 13: When Athe T-130 is connected.
The default is no. (none)
• Number of maximum memory channels
Sets the number of selectable memory channels from 1 to 99.
The default is 99.
• CI-V baud rate
Sets the data transfer rate. When "Auto" is selected, the baud rate is automati-
cally set according to the connected controller or remote controller.
The default is At (Auto).
• CI-V address
To distinguish equipment, each CI-V transceiver has its own Icom standard ad-
dress in hexadecimal code. The IC-78's address is 62.
When 2 or more IC-78s are connected to an optional CT-17
, rotate the main dial to select a different address for each IC-78 to between
ER
01 and 7F (Hexadecimal).
The default is 62.
• CI-V Transceive
Transceive operation is possible with the IC-78 connected to other Icom HF
transceivers or receivers. When "on" is selected, changing the frequency, oper-
ating mode, etc. on the IC-78 automatically changes those of connected trans-
ceivers (or receivers) and vice versa.
The default is on.
• CI-V 731 mode
If you connect the IC-78 to an IC-735 for transceive operation, you must change
the operating frequency data to 4 bytes.
• This item MUST be set to "on" when operating the IC-78 using the IC-735.
The default is oF (OFF).
31
— (continued)
(for straight key use)
- -
CI V LEVEL CONVERT
