KA01242D/06/EN/01.16
71326681
Products

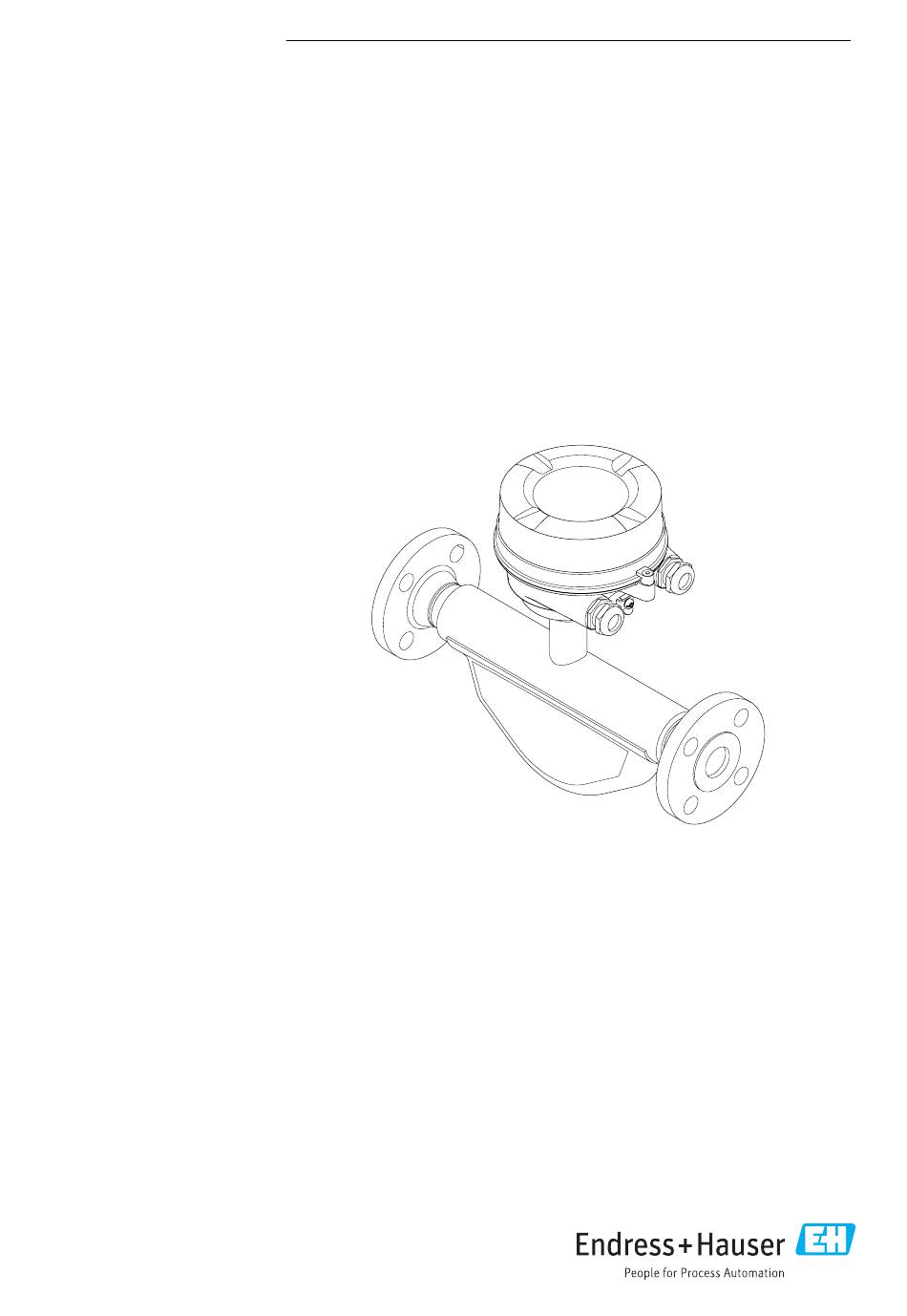

Brief Operating Instructions

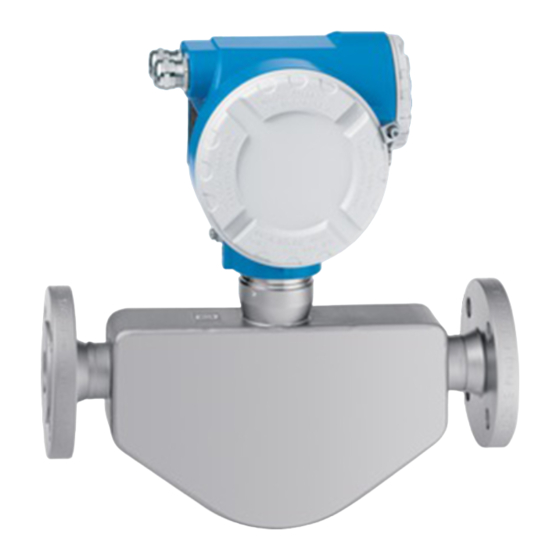

LPGmass
Coriolis flowmeter
These Instructions are Brief Operating Instructions; they are
not a substitute for the Operating Instructions pertaining to
the device.
Detailed information about the device can be found in the
Operating Instructions and the other documentation:
• On the CD-ROM supplied (not included in the delivery for all
device versions).
• Available for all device versions via:
– Internet:
www.endress.com/deviceviewer
– Smart phone/tablet: Endress+Hauser Operations App
Solutions
Services
Advertisement
Table of Contents
Related Manuals for Endress+Hauser LPGmass
Summary of Contents for Endress+Hauser LPGmass
- Page 1 Detailed information about the device can be found in the Operating Instructions and the other documentation: • On the CD-ROM supplied (not included in the delivery for all device versions). • Available for all device versions via: – Internet: www.endress.com/deviceviewer – Smart phone/tablet: Endress+Hauser Operations App...
- Page 2 LPGmass Order code: XXXXX-XXXXXX Ser. no.: XXXXXXXXXXXX Ext. ord. cd.: XXX.XXXX.XX Serial number www.endress.com/deviceviewer Endress+Hauser Operations App A0023555 Endress+Hauser...
-
Page 3: Table Of Contents
LPGmass Table of contents Table of contents Document information ............4 Symbols used . -
Page 4: Document Information
Document information LPGmass Document information Symbols used 1.1.1 Safety symbols Symbol Meaning DANGER! This symbol alerts you to a dangerous situation. Failure to avoid this situation will result in DANGER serious or fatal injury. WARNING! WARNING This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in serious or fatal injury. - Page 5 LPGmass Document information 1.1.3 Tool symbols Symbol Meaning Symbol Meaning Torx screwdriver Flat blade screwdriver Cross-head screwdriver Allen key Open-ended wrench 1.1.4 Symbols for certain types of information Symbol Meaning Symbol Meaning Permitted Preferred Procedures, processes or actions that Procedures, processes or actions that are permitted.
-
Page 6: Basic Safety Instructions
Basic safety instructions LPGmass Basic safety instructions Requirements for personnel The personnel must fulfill the following requirements for its tasks: ‣ Trained, qualified specialists must have a relevant qualification for this specific function and task. ‣ Are authorized by the plant owner/operator. -
Page 7: Workplace Safety
Verification for borderline cases: ‣ For special fluids and fluids for cleaning, Endress+Hauser is glad to provide assistance in verifying the corrosion resistance of fluid-wetted materials, but does not accept any warranty or liability as minute changes in the temperature, concentration or level of contamination in the process can alter the corrosion resistance properties. -
Page 8: Product Description
Product description LPGmass Product description One device version is available: compact version, transmitter and sensor form a mechanical unit. For detailed information on the product description, see the Operating Instructions for the device. Incoming acceptance and product identification Incoming acceptance... -
Page 9: Product Identification
A0029318 • If one of the conditions is not satisfied, contact your Endress+Hauser Sales Center. • Depending on the device version, the CD-ROM might not be part of the delivery! The Technical Documentation is available via the Internet or via the Endress+Hauser Operations App. -
Page 10: Storage And Transport
Storage and transport LPGmass Order code: Ser. no.: Ext. ord. cd.: Order code: Ser. no.: Ext. ord. cd.: A0030196 1 Example of a nameplate Order code Serial number (Ser. no.) Extended order code (Ext. ord. cd.) 2-D matrix code (QR code) For detailed information on the breakdown of the specifications on the nameplate, see the Operating Instructions for the device . - Page 11 LPGmass Storage and transport A0029252 Do not remove protective covers or caps installed on process connections. They prevent mechanical damage to the sealing surfaces and contamination in the measuring tube. 5.2.1 Measuring devices without lifting lugs WARNING Center of gravity of the measuring device is higher than the suspension points of the webbing slings.
-
Page 12: Installation
Installation LPGmass Installation Installation conditions No special measures such as supports are necessary. External forces are absorbed by the construction of the device. 6.1.1 Mounting position Mounting location A0028772 Orientation The direction of the arrow on the sensor nameplate helps you to install the sensor according to the flow direction. - Page 13 LPGmass Installation Orientation Recommendation Horizontal orientation, transmitter head down Exceptions: → 2, 13 A0015590 Horizontal orientation, transmitter head at side A0015592 Applications with low process temperatures may decrease the ambient temperature. To maintain the minimum ambient temperature for the transmitter, this orientation is recommended.
-
Page 14: Mounting The Measuring Device
Installation LPGmass 6.1.2 Requirements from environment and process Ambient temperature range Safety Barrier Promass 100 –40 to +60 °C (–40 to +140 °F) ‣ If operating outdoors: Avoid direct sunlight, particularly in warm climatic regions. System pressure For this reason, the following mounting locations are recommended: •... -
Page 15: Post-Installation Check
LPGmass Installation 6.2.3 Mounting the measuring device WARNING Danger due to improper process sealing! ‣ Ensure that the inside diameters of the gaskets are greater than or equal to that of the process connections and piping. ‣ Ensure that the gaskets are clean and undamaged. -
Page 16: Electrical Connection
Electrical connection LPGmass Electrical connection The measuring device does not have an internal circuit breaker. For this reason, assign the measuring device a switch or power-circuit breaker so that the power supply line can be easily disconnected from the mains. - Page 17 LPGmass Electrical connection Wire cross-section Maximum cable length [AWG] [ft] 0.75 Cable diameter • Cable glands supplied: M20 × 1.5 with cable 6 to 12 mm (0.24 to 0.47 in) • Spring terminals: Wire cross-sections 0.5 to 2.5 mm (20 to 14 AWG) •...
-
Page 18: Connecting The Measuring Device
Electrical connection LPGmass NOTICE Insufficient sealing of the housing! Operational reliability of the measuring device could be compromised. ‣ Use suitable cable glands corresponding to the degree of protection. If measuring device is delivered without cable glands: Provide suitable cable gland for corresponding connecting cable → 16. -
Page 19: Hardware Settings
LPGmass Electrical connection 7.2.2 Ensuring potential equalization Requirements No special measures for potential equalization are required. For devices intended for use in hazardous locations, please observe the guidelines in the Ex documentation (XA). Hardware settings 7.3.1 Enabling the terminating resistor... -
Page 20: Post-Connection Check
Electrical connection LPGmass To guarantee IP66/67 degree of protection, Type 4X enclosure, carry out the following steps after the electrical connection: Check that the housing seals are clean and fitted correctly. Dry, clean or replace the seals if necessary. Tighten all housing screws and screw covers. -
Page 21: Operation Options
LPGmass Operation options Operation options Overview of operating options A0017760 Computer with "FieldCare" operating tool via Commubox FXA291 and service interface Control system (e.g. PLC) Endress+Hauser... -
Page 22: Structure And Function Of The Operating Menu
Operation options LPGmass Structure and function of the operating menu 8.2.1 Structure of the operating menu Operating menu for operators and maintenances Language Operation task-oriented Setup Diagnostics Operating menu for experts Expert function-oriented A0014058-EN 5 Schematic structure of the operating menu 8.2.2... -
Page 23: Access To The Operating Menu Via The Operating Tool
FieldCare Function scope FDT-based plant asset management tool from Endress+Hauser. It can configure all smart field devices in a system and helps you manage them. By using the status information, it is also a simple but effective way of checking their status and condition. - Page 24 Operation options LPGmass Establishing a connection Start FieldCare and launch the project. In the network: Add a device. The Add device window opens. Select the CDI Communication FXA291 option from the list and press OK to confirm. Right-click CDI Communication FXA291 and select the Add device option in the context menu that opens.
-
Page 25: System Integration
LPGmass System integration User interface Xxxxxx/…/…/ Device name: Xxxxxxx kg/h Mass flow: 12.34 Device tag: Xxxxxxx Volume flow: 12.34 m /h ³ Status: Good Xxxxxx Mass flow unit: kg/h Access status tooling Maintenance Volume flow unit: m /h ³ Operation –... -
Page 26: Commissioning
Commissioning LPGmass Commissioning 10.1 Function check Before commissioning the measuring device: ‣ Make sure that the post-installation and post-connection checks have been performed. • "Post-installation check" checklist → 15 • "Post-connection check" checklist → 20 10.2 Setting the operating language Factory setting: English or ordered local language The operating language can be set in FieldCare or DeviceCare: Operation →... -
Page 27: Diagnostic Information
LPGmass Diagnostic information Diagnostic information Any faults detected by the measuring device are displayed as a diagnostic message in the operating tool once the connection has been established and on the home page of the web browser once the user has logged on. - Page 28 www.addresses.endress.com...
