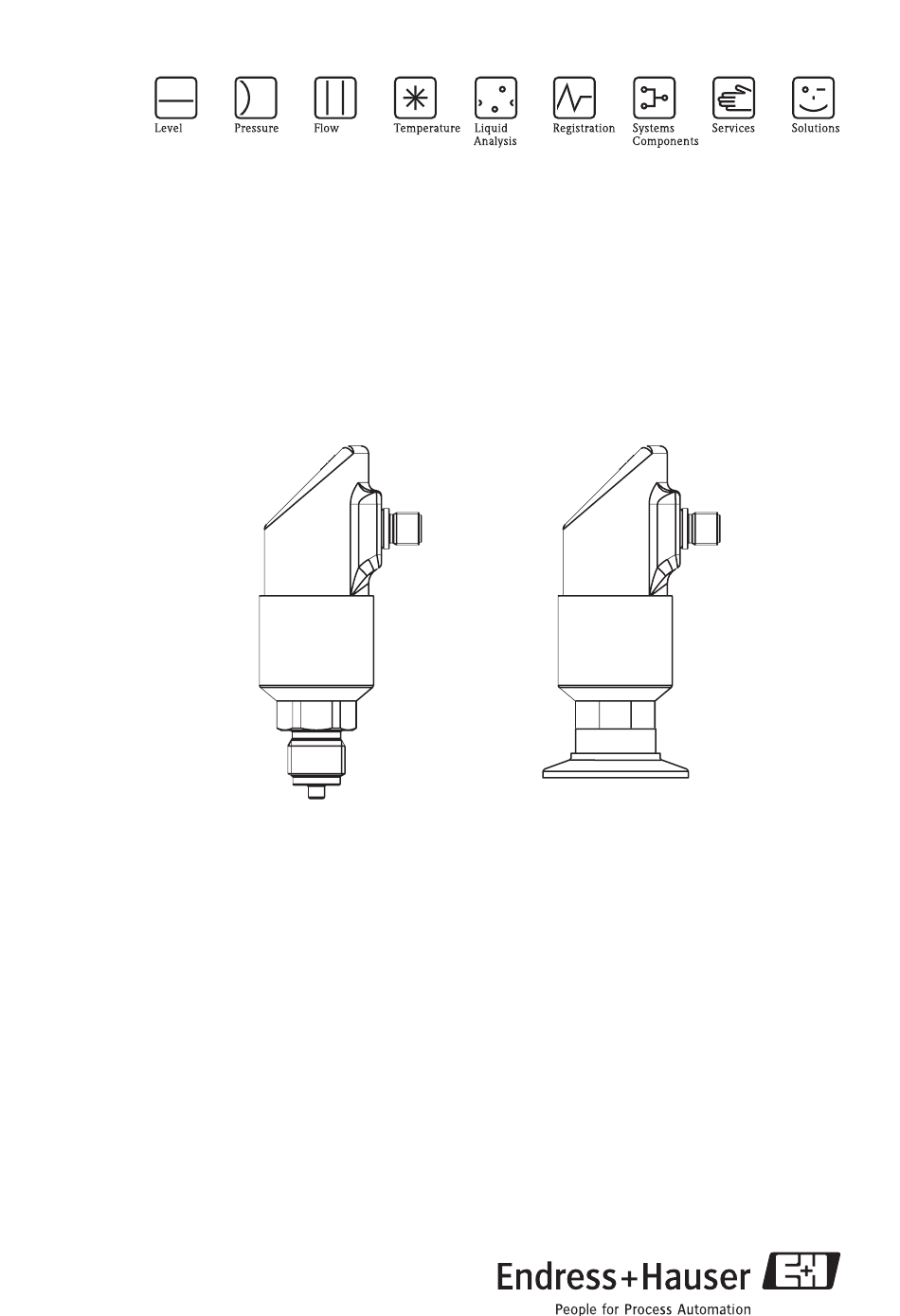

- Page 1 Operating Instructions Ceraphant T PTC31, PTP31, PTP35 Pressure Switch KA225P/00/en/09.08 71063801 Release 1.03...
-
Page 2: Table Of Contents
Table of contents Ceraphant T PTC31, PTP31, PTP35 Table of contents 1 Safety instructions ..........3 1.1 Designated use . -
Page 3: Safety Instructions
The Ceraphant T is not approved for use in Ex-areas. Return The following procedures must be carried out before a device is returned to Endress+Hauser: • Always enclose a fully completed “Declaration of Contamination” form with the device. Only then can Endress+Hauser transport and examine a returned device. A copy of the “Declaration of Contamination”... -
Page 4: Device Identification
Device identification Ceraphant T PTC31, PTP31, PTP35 Device identification Nameplate To identify your device, compare the complete order code and the version information on the delivery papers with the data on the nameplate. Order Code: Mat: Ser.-No.: I out: TAG: Rel.:... -
Page 5: Installation
Ceraphant T PTC31, PTP31, PTP35 Installation Installation Incoming acceptance, storage • Incoming acceptance: Check the packaging and the device for damage. Check that the goods delivered are complete and nothing is missing. • Storage: Storage temperature -40...+85 °C (-40 to +185 °F) -
Page 6: Process Connection
Installation Ceraphant T PTC31, PTP31, PTP35 Process connection The following table illustrates the versions of Ceraphant T A detailed overview of the process connections and their dimensions can be found in the Technical Information TI384P. Ceraphant PTC 31 PTP 31... -
Page 7: Installation Instructions
Ceraphant T PTC31, PTP31, PTP35 Installation Installation instructions For typical possibilities for installing the Ceraphant T - see the diagram below: • Pressure measurement in gases (left) Mount Ceraphant T with shut-off assembly above the sampling nozzle so that any condensate can drain off into the process. -
Page 8: Wiring
Wiring Ceraphant T PTC31, PTP31, PTP35 Wiring DC voltage version with M12 connector A2’ ➀ L– L– A3’ Diag. 4...20mA 4...20mA L– L– P01-PTx3xxxx-04-xx-xx-xx-002 Fig. 4: Ceraphant T with M12x1 connector A1: 1x PNP switch output A2: 2x PNP switch outputs R1 and m (R2) A2’: 2x PNP switch outputs R1 and m (diagnosis/break contact with adjustment "DESINA") -
Page 9: Dc Voltage Version With Cable
Ceraphant T PTC31, PTP31, PTP35 Wiring DC voltage version with cable C2’ ➀ L– L– GNYE GNYE C3’ 4...20mA 4...20mA Diag. L– L– GNYE GNYE P01-PTx3xxxx-04-xx-xx-xx-004 Fig. 6: Ceraphant T with cable connection C1: 1x PNP switch output C2: PNP switch outputs R1 and m(R2) C2’: PNP switch outputs R1 and m (diagnosis/break contact with adjustment "DESINA") -
Page 10: Operation
Operation Ceraphant T PTC31, PTP31, PTP35 Operation On-site operation The Ceraphant T is operated by means of three keys. The digital display and the light emitting diodes (LED) support navigation in the operating menu. Operating key Digital display LED for status Green = ok 22.07... - Page 11 Ceraphant T PTC31, PTP31, PTP35 Operation 5.1.1 Navigating in the operating menu b a r > 3 s SAVE > 3 s P01-PTx3xxxx-19-xx-xx-xx-005 Fig. 8: Navigating in the operating menu A Function group selection B Function selection ➀ Enter the operating menu –...
- Page 12 Operation Ceraphant T PTC31, PTP31, PTP35 5.1.2 Structure of the operating menu The structure below shows all the possible fields of the operating menu. P01-PTx3xxxx-19-xx-xx-xx-100 Fig. 9: Operating menu: A function groups, B functions, C settings Endress+Hauser...
- Page 13 Ceraphant T PTC31, PTP31, PTP35 Operation 5.1.3 Basic settings Base Basic settings Technical unit Select technical unit: kPa/MPa Configure zero point Offset: ±20 % URL Accept zero point Current value as zero point (Offset max. ±20 % URL) Display PV: measured value...
- Page 14 Operation Ceraphant T PTC31, PTP31, PTP35 5.1.4 Output setting • Hysteresis function: The hysteresis function enables two-point control via a hysteresis. Depending on the pressure p, the hysteresis can be set via the switch point SP and the switch-back point RSP.
- Page 15 Ceraphant T PTC31, PTP31, PTP35 Operation OUT/OUT2 Output/output 2 Switching HYNO: characteristic Hysteresis/NO contact HYNC: Hysteresis/NC contact WINO: Window/NO contact WINC: Window/NC contact 4...20 mA: Analog output (only if available) Switch point value Switch point 0.5...100 % URL in increments of 0.1 % of selected unit (min.
- Page 16 Operation Ceraphant T PTC31, PTP31, PTP35 4 - 20 Analog output Value for 4 mA Enter lower range value (LRV) in increments of 0.1 % of selected unit Value for 20 mA Enter upper range value (URV) in increments of 0.1 %...
- Page 17 Ceraphant T PTC31, PTP31, PTP35 Operation SERV Service functions Security locking Locking against undesired configuration Locking code Freely selectable code 1...9999 0 = no locking Reset Reset all entries to the factory setting Revision counter Increases by 1 with each configuration...
-
Page 18: Operation With Personal Computer
Operation Ceraphant T PTC31, PTP31, PTP35 Operation with personal computer The device can be configured with the configuration software ReadWin® 2000 or FieldCare. For the connection between the USB port of the computer and the device a configuration kit (e.g. TXU10 or FXA291)) is necessary. - Page 19 Ceraphant T PTC31, PTP31, PTP35 Operation Function group Description SERV Number of switch changes for output 1 Number of switch changes for output 2 Device status Last error to occur INFO Tag number Order code Limit switch serial number Sensor serial number...
-
Page 20: Accessories
Accessories Ceraphant T PTC31, PTP31, PTP35 Accessories Process connection • Ceraphant T PTC31: The sensor module and the process connection are connected together and cannot be separated. • Ceraphant T PTP31, PTP35: The process connection is an adapter and the sensor module has an adapter thread. As a result, the process connection can easily be changed at a later stage. - Page 21 Ceraphant T PTC31, PTP31, PTP35 Accessories 6.1.1 Adapter change The adapter can be changed on PTP31 and PTP35. PTP 31 PTP 35 P01-PTx3xxxx-17-xx-xx-xx-001 Fig. 14: Changing the adapter ➀ Sensor module with adapter thread ➁ Standard O-ring ➂ Adapter Please note the following when changing the adapter: •...
- Page 22 Accessories Ceraphant T PTC31, PTP31, PTP35 6.1.2 Adapter versions • PTP 31: order numbers for thread adapter versions. Version AC: order no. 52023980 Version AD: order no. 52023981 Version AE: order no. 52023982 Version AF: order no. 52023983 Ø3 (0.12) G1/4 Ø23 (0.9)
- Page 23 Ceraphant T PTC31, PTP31, PTP35 Accessories • PTP 35: order numbers for Clamp adapter versions. SW28 AF28 Version DB: order no. 52023994 Version DL: order no. 52023995 Ø43.5 (1.7) Ø50.5 (2.0) Optional with inspection certificate 3.1: Version DB: order no. 52024001...
-
Page 24: Welding Bosses
Accessories Ceraphant T PTC31, PTP31, PTP35 Welding bosses 6.2.1 Welding boss with sealing taper • Welding boss for flush mounting process connection G1A with metallic sealing taper (version BA for PTP 35) Material: AISI 316L Order number: 52005087 ø50 (1,97) (inch) •... -
Page 25: Electrical Connection
Ceraphant T PTC31, PTP31, PTP35 Accessories Electrical connection 6.3.1 Plug-in jack, connecting cable • M12x1 plug-in jack. Connection to M12x1 housing connector Materials: Body PA, coupling nut Cu Zn, brass, nickeled. Protection: IP 67 (fully locked). P01-PMP13xxx-00-xx-00-xx-003 Order number: 52006263 •... -
Page 26: Trouble-Shooting
Trouble-shooting Ceraphant T PTC31, PTP31, PTP35 Trouble-shooting Errors and warnings If an error in the device occurs, the colour of the status LED changes from green to red and the background illumination of the digital display changes from white to red. The display shows: •... -
Page 27: Repair
Ceraphant T PTC31, PTP31, PTP35 Trouble-shooting W-Code Explanation Remedy W107 Simulation active Switch off the output simulation for output 1 and output 2 W202 Pressure outside the sensor range Operate the device in the specified pressure range W209 Device starts... -
Page 28: Change Status - History
Trouble-shooting Ceraphant T PTC31, PTP31, PTP35 Change status - history Release no. device Changes 1.00 1.01 New analog electronics 1.02 Modification sensor units 1.03 Internal device modification Endress+Hauser... -
Page 29: Most Important Technical Data
Ceraphant T PTC31, PTP31, PTP35 Most important technical data Most important technical data Power supply Supply voltage • DC voltage version 12...30 V DC Current consumption • Without load < 60 mA, with reverse polarity protection Power supply failure • Behaviour in case of overvoltage The device works continuously without any damage up to 34 V DC. -
Page 30: Operating Conditions
Most important technical data Ceraphant T PTC31, PTP31, PTP35 Operating conditions • Any orientation • Any position-dependent zero shift can be corrected Offset: ±20 % URL Operating conditions: Environment • Ambient temperature range –40 to +85 °C (–40 to +185 °F), briefly up to +100 °C (212 °F) •... -
Page 31: Dangerous Goods Sheet
Erklärung zur Kontamination und Reinigung Please reference the Return Authorization Number (RA#), obtained from Endress+Hauser, on all paperwork and mark the RA# clearly on the outside of the box. If this procedure is not followed, it may result in the refusal of the package at our facility. - Page 32 www.endress.com/worldwide KA225P/00/en/09.08 71063801 FM+SGML 6.0 71063801...
