Operating manual
Thermophant T TTR31, TTR35
Temperature switch
BA201R/09/en/02.05
51009833
Release 01.01.00

Advertisement

Table of Contents
loading

Related Manuals for Endress+Hauser Thermophant T TTR31

Summary of Contents for Endress+Hauser Thermophant T TTR31

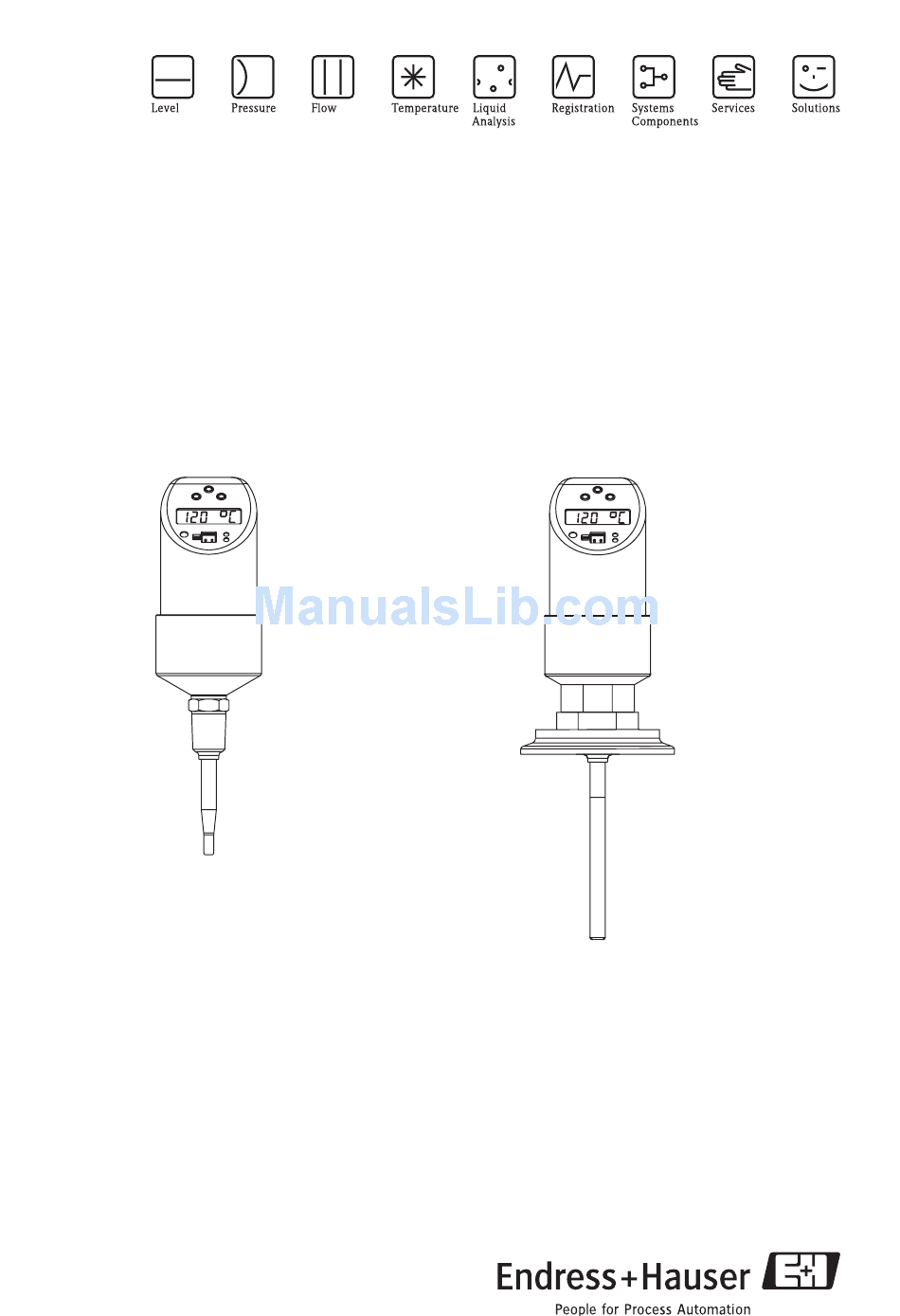

  • Page 1 Operating manual Thermophant T TTR31, TTR35 Temperature switch BA201R/09/en/02.05 51009833 Release 01.01.00...

  • Page 2: Table Of Contents

    8. 2 Output ......25 8. 3 Operating conditions ....25 Endress+Hauser...

  • Page 3: Safety Instructions

    The Thermophant T is not approved for use in Ex-areas. 1. 4 Return The following procedures must be carried out before a device is returned to Endress+Hauser: • Always enclose a fully completed “Declaration of Contamination” form with the device. Only then can Endress+Hauser transport and examine a returned device.

  • Page 4: Device Identification

    Release number (change status) Degree of protection Connection values Approvals Note! The release number indicates the change status of the device. A change in the last two figures does not have any affect on the compatibility - see also → Chap. 7. Endress+Hauser...

  • Page 5: Installation

    Version L in 100 and 200 mm (3.94 and 7.87"), version L* = 50 mm (1.97") with reduced sensor tip M 12x1 connector as per IEC 60947-5-2 M 16x1.5 or ½ NPT valve plug as per DIN 43650A/ISO 4400 Endress+Hauser...

  • Page 6: Process Connection

    (see Section 6.1.2) Sensor length L Version L in 100 and 200 mm (3.94 and 7.87"), version L = 50 mm (1.97") only with reduced sensor tip Measuring range -50 °C to +150 °C (-58 °F to 302 °F) Endress+Hauser...

  • Page 7: Installation Instructions

    • Installation in smaller pipes, inclined against the direction of flow (Fig. 3, Item B) • Installation vertical to the direction of flow (Fig. 3, Item C) • The on-site display can be rotated electronically 180° − see Section 5. 1 "On-site operation" • The housing can be rotated up to 310° Endress+Hauser...

  • Page 8: Wiring

    DESINA (→ Chap. 5.1.3 Basic settings): R2 = Diagnosis/break contact (more informations about DESINA see www.desina.de) 4. 2 DC voltage version with valve connector P01-PTx3xxxx-04-xx-xx-xx-003 Fig. 5: Thermophant T with M 16x1.5 or ½ NPT valve plug B: 1x PNP switch output Endress+Hauser...

  • Page 9: Operation

    The Thermophant T is operated by means of three keys. The digital display and the light emitting diodes (LED) support navigation in the operating menu. T09-TTR31xxx-19-xx-xx-en-001 Fig. 6: Position of operating elements and possibilities for display Background illumination of the digital display: – White = OK status – Red = error status Endress+Hauser...
  • Page 10 Query to save data (select "YES" or "NO" with the + or − key) – Confirm with the E key Note! Changes to the parameter settings only become effective if you choose s 'YES' when asked to save data. Endress+Hauser...
  • Page 11 TTR31, TTR35 Operation 5.1.2 Structure of the operating menu The structure below shows all the possible fields of the operating menu. T09-TTR31xxx-19-xx-xx-xx-003 Fig. 8: Operating menu: A function groups, B functions, C settings Endress+Hauser...

  • Page 12: Basic Settings

    &/ &/ &/ Safety confirmation Operation with increased functional safety (in development). Factory setting NO should not be changed #"+. #"+. 0 0 0 0 #"+. #"+. Safety release code Enter the calculated safety code of the PC Software Endress+Hauser...
  • Page 13 URL = Upper Range Limit LRV = Lower Range Value URV = Upper Range Value T09-TTR31xxx-05-xx-xx-xx-001 Fig. 9: m Hysteresis function, n Window function, o NO contact switch status , p NC contact switch sta- tus SP Switch point; RSP Switch-back point Endress+Hauser...
  • Page 14 (#58 (#58 0...99 s in increments of 0.1 s (.#5 (.#5 (.#5 (.#5 Switch-back point Delay time 0...99 s (.#8 (.#8 (.#8 (.#8 delay in increments of 0.1 s Min. distance between SP and RSP: 0.5 °C/K (0.9 °F) Endress+Hauser...
  • Page 15 Error current Current value in event of >"? >"? >"? >"? error: :/=4 :/=4 :/=4 :/=4 MIN = ≤ 3.6 mA MAX = ≥ 21.0 mA HOLD = last value Min. distance between SETL and SETU: 20 °C/K (36 °F) Endress+Hauser...
  • Page 16 (if analog out- Simulation values for ana- put available) log output in mA (3.5/4.0/8.0/12.0/16.0 /20.0/21.7) >"?3 >"?3 >"?3 >"?3 Max. indicator Display of max. measured process value >'&3 >'&3 >'&3 >'&3 Min. indicator Display of min. measured process value Endress+Hauser...

  • Page 17: Operation With Pc And Readwin® 2000

    Description SERV Number of switch changes for output 1 Number of switch changes for output 2 Device status INFO Tag number Order code Limit switch serial number Sensor serial number Electronics serial number Device release (change status) Hardware version Endress+Hauser...

  • Page 18: Accessories

    (see Section 3. 3, process connection). As a result, the process connection can easily be changed at a later stage. 6.1.1 Adapter change The adapter can be changed on TTR35. T09-TTR31xxx-17-xx-xx-xx-000 Fig. 11: Changing the adapter m Sensor module with adapter thread n Standard O-ring o Adapter Endress+Hauser...
  • Page 19 We recommend to change the O-ring in the same time frame as of all other sealings in your process. 6.1.2 Adapter versions TTR35: order numbers for clamp adapter versions. Version DB: order no. 52023994 Version DL: order no. 52023995 P01-PTx3xxxx-06-xx-xx-en-009 Endress+Hauser...

  • Page 20: Welding Bosses And Coupling

    O-ring 15.54 x 2.62 mm (0.612" x 0.103"), EPDM 70 Shore FDA, order number 52024267 6. 2 Welding bosses and coupling 6.2.1 Welding boss with sealing taper Collar welding boss Seal, moveable coupling, material of parts in contact with process: 316L, PEEK Order number: 51004751 T09-TSM470AX-06-09-00-en-000 Endress+Hauser...

  • Page 21: Electrical Connection

    6. 3 Electrical connection 6.3.1 Plug-in jack M 12x1 plug-in jack Self-made connection to M 12x1 housing connector Order number: 52006263 P01-PMP13xxx-00-xx-00-xx-003 6.3.2 Elbow plug Elbow plug 4-pole M12 connector for customised cable construction, elbowed, IP67, PG7 Order number: 51006327 T09-TTR3xxxx-06-09-xx-en-000 Endress+Hauser...

  • Page 22: Configuration Kit

    PCs with USB port; Adapter for transmitters with 4-pole post connector Order code: TXU10-AA ® • ReadWin 2000 can be downloaded free of charge directly from the internet at the follow- T09-TTR31xxx-00-00-xx-xx-000 ing address: www.endress.com/readwin Endress+Hauser...

  • Page 23: Trouble-Shooting

    Switching contact 2 is not open although it should be E040 VCC (Controller voltage) is out of working area E042 Output current cannot be generated E044 Output current drifts too much (± 0.5 mA) Code Explanation W107 Simulation active W202 Temperature outside the sensor range (not SIL mode) Endress+Hauser...

  • Page 24: Repair

    Compatibility provided. Operating Instructions change. Trouble-shooting and internal modifications. Operating Instructions do not change. 7. 5 Release history Date Release no. Device and software-No. Changes Operating device (Firmware/Software) manual 06.2004 1.00.00 1.00.00 KA174r/09/en (51008032) 12.2004 1.01.00 1.00.00 New analog BA201r/09/en electronics (51009833) Endress+Hauser...

  • Page 25: The Most Important Technical Data

    8. 3 Operating conditions • Any orientation • Any position-dependent zero shift can be corrected Offset: ±20 % URL Operating conditions: Environment • Ambient temperature range –40...+85 °C (-40...+ 185 °F) • Storage temperature –40...+85 °C (-40...+ 185 °F) Endress+Hauser...
  • Page 26 85 °C (185 °F) 100 °C (212 °F) • Process pressure limits p/T load diagram as per DIN 43763 or Dittrich T09-TSM470ZZ-05-00-xx-en-000 Fig. 12: p/T load diagram L = insertion length = medium velocity air = medium velocity water Endress+Hauser...
  • Page 27 Hiermit bestätigen wir, dass die zurückgesandten Teile sorgfältig gereinigt wurden, und nach unserem Wissen frei von Rückständen in gefahrbringender Menge sind. _____________________________________________ ______________________________________________ (place , date / Ort, Datum (Company stamp and legally binding signature) (Firmenstempel und rechtsverbindliche Unterschrift) Endress+Hauser...
  • Page 28 www.endress.com/worldwide BA201R/09/en/02.05 51009833 CCS/FM6.0+SGML...

This manual is also suitable for:

Thermophant t ttr35
