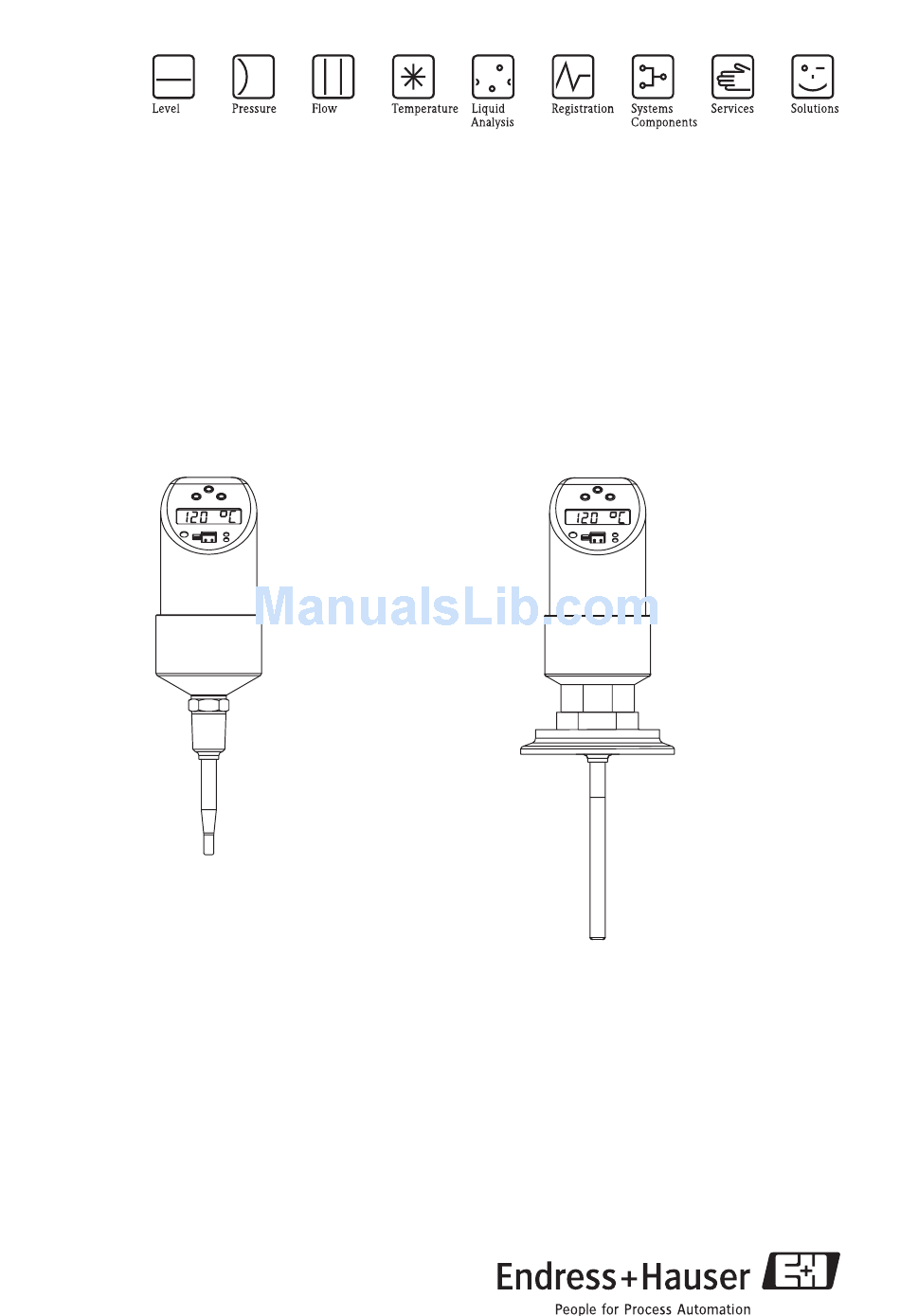

Operating manual Thermophant T TTR 31, TTR 35 Temperature switch KA174R/09/en/10.04 51008032 Release 01.00.00... -
Page 2: Table Of Contents
8. 1 Power supply ..... . 25 8. 2 Output ......25 Endress+Hauser... -
Page 3: Safety Instructions
The Thermophant T is not approved for use in Ex-areas. 1. 4 Return The following procedures must be carried out before a device is returned to Endress+Hauser: • Always enclose a fully completed “Declaration of Contamination” form with the device. Only then can Endress+Hauser transport and examine a returned device. -
Page 4: Device Identification
Degree of protection Connection values Approvals Note! • The release number indicates the change status of the device. A change in the last two figures does not have any affect on the compatibility - see also → Chap. 7. Endress+Hauser... -
Page 5: Installation
Fig. 2: Dimensions in mm Version L in 100 and 200 mm, version L* = 50 mm with reduced sensor tip M 12x1.5 connector as per IEC 60947-5-2 M 16x1.5 or ½ NPT valve plug as per DIN 43650A/ISO 4400 Endress+Hauser... -
Page 6: Process Connection
½" NPT (m = AF27) per ISO 228 (see Section 6.1.2) Sensor length L Version L in 100 and 200 mm, version L = 50 mm only with reduced sensor tip Measuring range -50 °C to +150 °C -50 °C to +150 °C Endress+Hauser... -
Page 7: Installation Instructions
• Installation in smaller pipes, inclined against the direction of flow (Fig. 3, Item B) • Installation vertical to the direction of flow (Fig. 3, Item C) • The on-site display can be rotated electronically 180° − see Section 5. 1 "On-site operation" • The housing can be rotated up to 310°. Endress+Hauser... -
Page 8: Wiring
DESINA (→ Chap. 5.1.3 Basic settings): R2 = Diagnosis/break contact (more informations about DESINA see www.desina.de) 4. 2 DC voltage version with valve connector P01-PTx3xxxx-04-xx-xx-xx-003 Fig. 5: Thermophant T with M 16x1.5 or ½ NPT valve plug B: 1x PNP switch output Endress+Hauser... -
Page 9: Operation
The Thermophant T is operated by means of three keys. The digital display and the light emitting diodes (LED) support navigation in the operating menu. T09-TTR31xxx-19-xx-xx-en-001 Fig. 6: Position of operating elements and possibilities for display Background illumination of the digital display: – White = OK status – Red = error status Endress+Hauser... - Page 10 Query to save data (select "YES" or "NO" with the + or − key) – Confirm with the E key Note! Changes to the parameter settings only become effective if you choose s 'YES' when asked to save data. Endress+Hauser...
- Page 11 Thermophant T Operation 5.1.2 Structure of the operating menu The structure below shows all the possible fields of the operating menu. T09-TTR31xxx-19-xx-xx-xx-003 Fig. 8: Operating menu: A function groups, B functions, C settings Endress+Hauser...
-
Page 12: Basic Settings
PV: measured value dis- play PVRO: measured value display rotated 180° SP: set switch point dis- play SPRO: set switch point display rotated 180° OFF: display off OFFR: display off rotated 180° DESINA Connection in accord- ance with DESINA guide- lines Endress+Hauser... - Page 13 URL = Upper Range Limit LRV = Lower Range Value URV = Upper Range Value T09-TTR31xxx-05-xx-xx-xx-001 Fig. 9: m Hysteresis function, n Window function, o NO contact switch status , p NC contact switch sta- tusSP Switch point; RSP Switch-back point Endress+Hauser...
- Page 14 (URV) increments of 0.1 °C Temperature Take temperature value as applied for 4 mA lower range value (LRV) Temperature Take temperature value as applied for 20 mA upper range value (URV) Error current Current value in event of error Endress+Hauser...
- Page 15 Switch output open CLOS: Switch output closed 3.5: (if analog out- Simulation values for ana- put available) log output in mA (3.5/4.0/8.0/12.0/16.0 /20.0/21.7) Max. indicator Display of max. measured process value Min. indicator Display of min. measured process value Endress+Hauser...
-
Page 16: Operation With Pc And Readwin® 2000
Operation Thermophant T ® 5. 2 Operation with PC and Readwin 2000 T09-TTR31xxx-04-xx-xx-en-004 Fig. 10: Operation with PC T09-TTR31xxx-20-00-xx-en-000 ® Fig. 11: Device configuration with Readwin 2000 Endress+Hauser... - Page 17 Sensor serial number Electronics serial number Device release (change status) Hardware version Software version ® 5.2.2 Operating Instructions for Readwin 2000 ® Comprehensive information on the ReadWin 2000 configuration software may be found in the Operating Instructions BA 137R/09/en. Endress+Hauser...
-
Page 18: Accessories
For this reason, the air-tightness must be checked regu- larly and the thread tightened if necessary. We recommend using Teflon tape as an additional thread seal. • When changing the adapter, make sure that the sensor tube of the sensor is not damaged. Endress+Hauser... - Page 19 Version LB: order no. 52023996 Version LL: order no. 52023997 Ø68 Ø50 Version PH: order no. 52023999 Ø66 Ø84 Version PL: order no. 52023998 Version HL: order no. 52024000 Ø51 Ø39 Ø68 Ø56 Ø61,5 Ø66,2 Ø82 Ø100 P01-PTx3xxxx-06-xx-xx-xx-010 Endress+Hauser...
-
Page 20: Welding Bosses And Coupling
6.2.2 Collar welding boss Material of parts in contact with process: 316L Order no. 51004752 T09-TSM470BX-06-09-00-en-000 6.2.3 Coupling with sealing taper G ½" process connection Seal, moveable coupling, material of parts in contact with process: 316L Order no. 51004753 T09-TSM470AX-06-09-00-en-001 Endress+Hauser... -
Page 21: Electrical Connection
6. 3 Electrical connection 6.3.1 Plug-in jack M 12x1.5 plug-in jack Self-made connection to M 12x1.5 housing connector Order number: 52006263 P01-PMP13xxx-00-xx-00-xx-003 6.3.2 Elbow plug Elbow plug 4-pole M12 connector for customised cable construction, elbowed, IP67, PG7 Order number: 51006327 T09-TTR3xxxx-06-09-xx-de-000 Endress+Hauser... -
Page 22: Configuration Kit
PCs with USB port; Adapter for transmitters with 4-pole post connector Order code: TXU10-AA ® • ReadWin 2000 can be downloaded free of charge directly from the internet at the fol- T09-TTR31xxx-00-00-xx-xx-000 lowing address: www.endress.com/readwin Endress+Hauser... -
Page 23: Trouble-Shooting
Switching contact 2 is not open although it should be Code Explanation W107 Simulation active W202 Temperature outside the sensor range (not SIL mode) W209 Device starts W210 Configuration modified W212 Sensor signal outside the permitted range (not SIL mode) Endress+Hauser... -
Page 24: Spare Parts
Compatibility no longer provided. Device and Operating Instructions change. Change in functionality and operation. Compatibility provided. Operating Instructions change. Trouble-shooting and internal modifications. Operating Instructions do not change. 7. 6 Release history Release no. Device and software no. Changes 01.00.00 Endress+Hauser... -
Page 25: Operating Conditions
0.4 s; max. capacitance load: 14 µF for max. supply voltage (without resistive load). 8. 3 Operating conditions • Any orientation Operating conditions: Environment • Ambient temperature range –40...+85 °C • Storage temperature –40...+85 °C Operating conditions: Process • Process temperature limits -50 to 150 °C Endress+Hauser... - Page 26 120 °C up to 85 °C 100 °C • Process pressure limits p/T load diagram as per DIN 43763 or Dittrich T09-TSM470ZZ-05-00-xx-en-000 Fig. 13: p/T load diagram L = insertion length = medium velocity air = medium velocity water Endress+Hauser...
-
