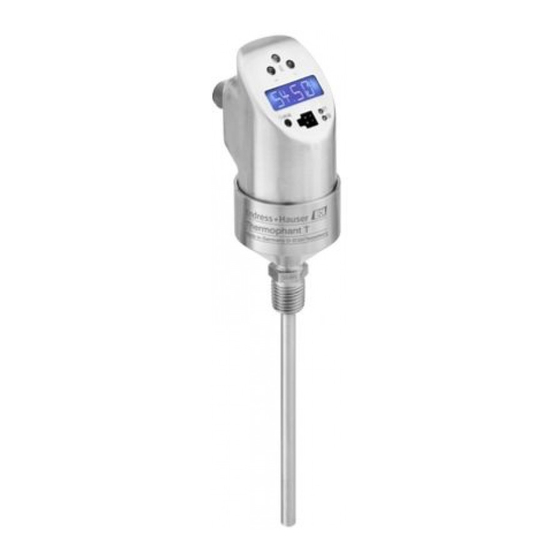

Endress+Hauser Thermophant T TTR31 Operating Manual

Temperature switch
Hide thumbs Also See for Thermophant T TTR31:
Table of Contents

Advertisement

Quick Links

Download this manual

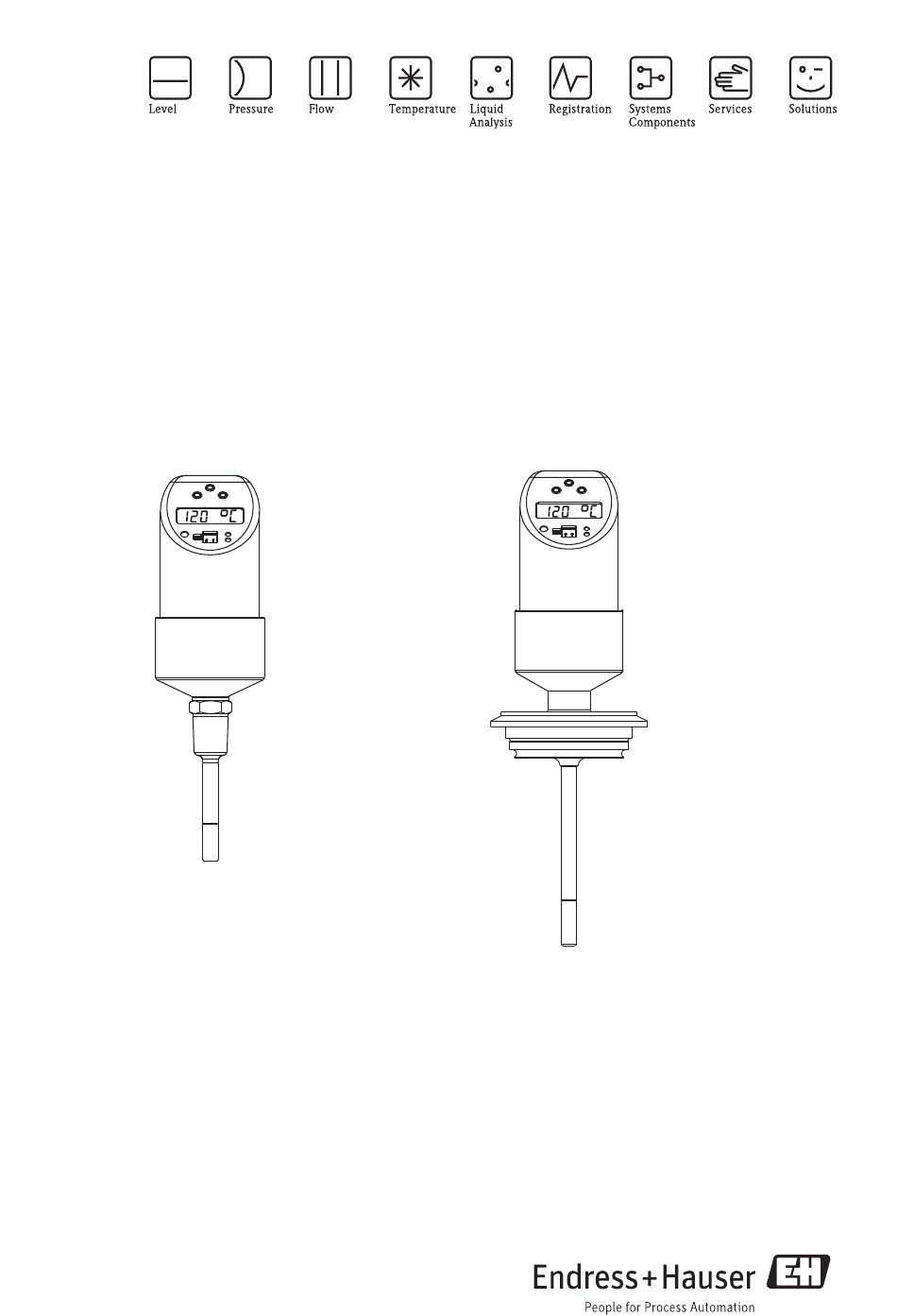

Operating manual
®
Thermophant
T TTR31, TTR35
Temperature switch
BA229R/09/en/06.09
71098142
Release 01.02

Advertisement

Table of Contents
loading

Related Manuals for Endress+Hauser Thermophant T TTR31

Summary of Contents for Endress+Hauser Thermophant T TTR31

  • Page 1 Operating manual ® Thermophant T TTR31, TTR35 Temperature switch BA229R/09/en/06.09 71098142 Release 01.02...
  • Page 2 Brief overview Using the following short form instructions you can commission your system easily and swiftly: → Page 4 Safety instructions Æ → Page 6 Installation Æ → Page 11 Wiring Æ → Page 12 Operation Display and operating elements On-site operation Operation with PC and configuration software Æ...

  • Page 3: Table Of Contents

    Technical data ... . 31 Power supply ..... 31 Endress+Hauser...

  • Page 4: Safety Instructions

    T is not approved for use in Ex-areas. Return The following procedures must be carried out before a device is returned to Endress+Hauser: • Always enclose a fully completed “Declaration of Contamination” form with the device. Only then can Endress+Hauser transport and examine a returned device. A copy of the “Declara- tion of Contamination”...

  • Page 5: Device Identification

    CE mark. Hygiene standard The TTR35 temperature switch meets the requirements of Sanitary Standard no. 74-03. Endress+Hauser confirms this by applying the 3–A symbol (not valid for process connection conical metal-metal). Endress+Hauser...

  • Page 6: Installation

    14 (0.55) ø 6 (0.24) ø 6 (0.24) ø6 (0.24) ø6 (0.24) T09-TTR31xxx-06-xx-xx-en-000 Fig. 2: Dimensions in mm (inches) L = Insertion length M12x1 connector as per IEC 60947-5-2 M16x1.5 or NPT ½" valve plug as per DIN 43650A/ISO 4400 Endress+Hauser...

  • Page 7: Process Connection

    (1.97, 3.94 • 19 mm (0.75") • 8.1 mm (0.32") or 7.87 in) Thread process connection cylindrical as per ISO 228: • G¼" (n = AF14) • 12 mm (0.47") • G½" (n = AF27) • 14 mm (0.55") Endress+Hauser...
  • Page 8 Varivent N DN40-162, PN 40 APV-Inline, DN50, PN40, 316L, B = bores 6 x Ø8.6 (0.34") + 2 x thread M8 DIN 11851, DN50, PN40 (including coupling nut) DIN 11851, DN25, PN40 (including coupling nut) DIN 11851, DN40, PN40 (including coupling nut) Endress+Hauser...

  • Page 9: Installation Instructions

    • Installation vertical to the direction of flow (→ Fig. 5, Item C). Installation of TTR35 by min. 3° inclination, because of self draining. • The on-site display can be rotated electronically 180° − see section 5.1 "On-site operation". • The housing can be rotated up to 310°. Endress+Hauser...
  • Page 10 Fig. 6: Installation in hygienic processes Milk pipe connection as per DIN 11851 (connection PL, PG, PH), only in linkage with EHEDG certified and self centering ring Varivent and APV-Inline (connection LB, LL, HL) Clamp as per ISO 2852 (connection DB, DL, DP) Endress+Hauser...

  • Page 11: Wiring

    To avoid the analog input damaging of a PLC, do not connect the active PNP switch output of the device to the 4...20 mA input of a PLC. Note! More informations about DESINA see www.desina.de (→ Chap. 5.1.4 Basic settings). Endress+Hauser...

  • Page 12: Dc Voltage Version With Valve Connector

    On-site operation ® The Thermophant T is operated by means of three keys. The digital display and the light emitting diodes (LED) support navigation in the operating menu. T09-TTR31xxx-19-xx-xx-en-001 Fig. 9: Position of operating elements and possibilities for display Endress+Hauser...
  • Page 13 Query to save data (select "YES" or "NO" with the + or − key) – Confirm with the E key Note! Changes to the parameter settings only become effective if you choose s 'YES' when asked to save data. Endress+Hauser...
  • Page 14 Operation TTR31, TTR35 5.1.2 Structure of the operating menu for 1x or 2x switch outputs A0008102 Fig. 11: Operating menu: A function groups, B functions, C settings Endress+Hauser...
  • Page 15 At devices with analog output both output 1 and output 2 can be configured as an analog output. Furthermore it is possible to configure both output 1 and output 2 as a switch output. T09-TTR31xxx-19-xx-xx-xx-003 Fig. 12: Operating menu: A function groups, B functions, C settings Endress+Hauser...
  • Page 16 OFFR: display off rotated 180° Factory setting: measured value (PV) Damping: Measured value damping display value, with regard to display output signal value and output: 0 (no damping) or 9 to 40 s (in increments of 1 second) Factory setting: 0 s Endress+Hauser...
  • Page 17 Switch point SP 2: 55 °C (131.0 °F); Switch-back point RSP 2: 54.5 °C (130.1 °F) • Range of adjustment LRL = Lower Range Limit URL = Upper Range Limit LRV = Lower Range Value URV = Upper Range Value Endress+Hauser...
  • Page 18 HYNC: hysteresis/NC contact Output 2, WINO: as option window/NO contact HYNO: hysteresis/NO contact Factory setting: HYNO Switch point value Switch point -49.5 to 150 °C (-57.1 to 302 °F) in increments of 0.1 °C (0.18 °F) Endress+Hauser...
  • Page 19 Output 2, WINO: as option window/NO contact HYNO: hysteresis/NO contact 4 - 20: analog output Factory setting: HYNO Switch point value Switch point -49.5 to 150 °C (-57.1 to 302 °F) in increments of 0.1 °C (0.18 °F) Endress+Hauser...
  • Page 20 Factory setting: 150 °C (302 °F) Temperature Take temperature value applied for 4 mA as lower range value (LRV) (not via PC software) Temperature Take temperature value applied for 20 mA as upper range value (URV) (not vial PC software) Endress+Hauser...
  • Page 21 Reset Reset all entries to the factory setting Revision counter Increases by 1 with each configuration Last device status Displays the last device status to occur ≠ 0 Endress+Hauser...

  • Page 22: Operation With Pc

    USB port of the computer and the device a configuration kit (e.g. TXU10-AA) is necessary. A0008072 Fig. 14: Operation with PC ® Item 1: PC with configuration software ReadWin 2000 or FieldCare Item 2: Configuration kit TXU10-AA or FXA291 Item 3: Temperature switch Endress+Hauser...
  • Page 23 FieldCare is an universal configuration software based on FDT/DTM technology. Note! ® • To configure the Thermophant T TTR31/35 with FieldCare the “PCP (ReadWin) Communication DTM” and the Thermophant Device-DTM are required. • All devices with software version 1.01.00 or higher can be configured with FieldCare. Endress+Hauser...

  • Page 24: Maintenance

    Make sure the process is unpressurized before you remove the device! Do not twist the device out of the process connection thread at the housing. Always use a suitable open-ended wrench for disassembly work (→ Chap. 3.3 and → Fig. 5). Endress+Hauser...

  • Page 25: Accessories

    Material of parts in contact with process: 316L Order no. 51004752 T09-TSM470BX-06-09-00-en-000 7.1.3 Welding boss with sealing taper (metal-metal) Welding boss Seal, metal-metal, Material of parts in contact with process: 316L Max. process pressure 16 bar (232 psi) Order no. 60021387 a0006621 Endress+Hauser...

  • Page 26: Electrical Connection

    (22 AWG) with M12x1 coupling, elbowed, screw plug, length 5 m (16.4 ft), IP 67 Order number: 51005148 Core colours: - 1 = BN brown - 2 = WH white - 3 = BU blue - 4 = BK black T09-TTR31xXX-00-00-xx-xx-002 Endress+Hauser...

  • Page 27: Configuration Kit

    ReadWin 2000 and FieldCare ’Device Setup’ can be downloaded free of charge directly from the internet at the following addresses: • www.endress.com/readwin • www.products.endress.com/fieldcare For the order of the FieldCare ’Device Setup’ software please ask your Endress+Hauser sales organization. Endress+Hauser...

  • Page 28: Trouble-Shooting

    Output current can no longer be Check load. generated (only for 4 to 20 mA output, Switch off analog output via e.g. load at analog output too high or configuration, if it isn’t required, → Chap. 5.1.6. open analog output) Endress+Hauser...

  • Page 29: Repair

    Extend the load resistance at output 2 Repair A repair is not planned. Disposal Please pay particular attention to the local disposal regulations of your country. When disposing, ensure that the materials of the device components are separated and processed accordingly. Endress+Hauser...

  • Page 30: Software History And Compatibility Overview

    06.2004 01.00.00 KA174r/09/en (51008032) 12.2004 01.01.00 New analog electronics BA201r/09/en/02.05 (51009833) 02.2005 01.02.00 Internal BA201r/09/en/02.05 (51009833) 02.2006 01.02.01 Parameter functional safety for the optional BA229r/09/en/03.06 analog output is not applicable (71025405) 02.2006 01.02 BA229r/09/en/01.08 (71025405) 02.2006 01.02 BA229r/09/en/06.09 71098142 Endress+Hauser...

  • Page 31: Output

    • Any orientation • Any position-dependent zero shift can be corrected Offset: ±20% URL 9.3.1 Environment • Ambient temperature range: –40...+85 °C (-40...+ 185 °F) • Storage temperature: –40...+85 °C (-40...+ 185 °F) ≥ Guaranteed value for setting ’MAX’: 21.6 mA Endress+Hauser...
  • Page 32 L = insertion length p = process pressure The diagram takes into consideration not only the overpressure but also the pressure load caused by the flow, whereby a safety factor of 1.9 has been specified for operation with flow. The Endress+Hauser...
  • Page 33 (1.9). Calculation was performed for the specified limit operating conditions of 200°C (392°F) and ≤10 MPa (1450 PSI) process pressure. Endress+Hauser...

  • Page 34: Dangerous Good Sheet

    Dangerous good sheet TTR31, TTR35 Dangerous good sheet Endress+Hauser...
  • Page 35 TTR31, TTR35 Dangerous good sheet Endress+Hauser...
  • Page 36 BA229R/09/en/06.09 71098142 FM9.0...
