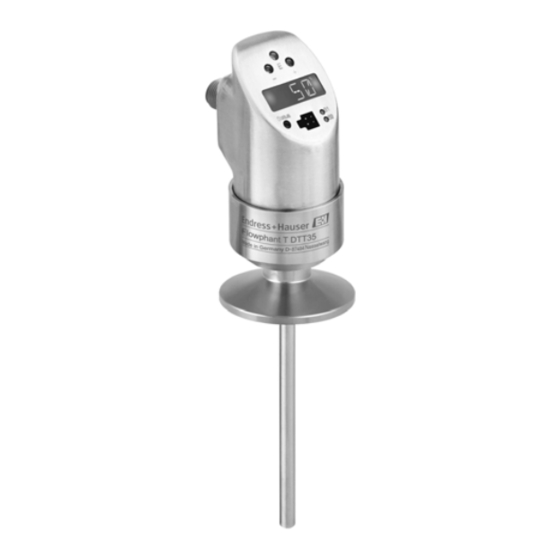

Operating Instructions

Flowphant T
DTT31, DTT35
Flow Switch
Solutions
Services

Advertisement

Table of Contents
loading

Related Manuals for Endress+Hauser Flowphant T DTT31

Summary of Contents for Endress+Hauser Flowphant T DTT31

  • Page 1: Operating Instructions

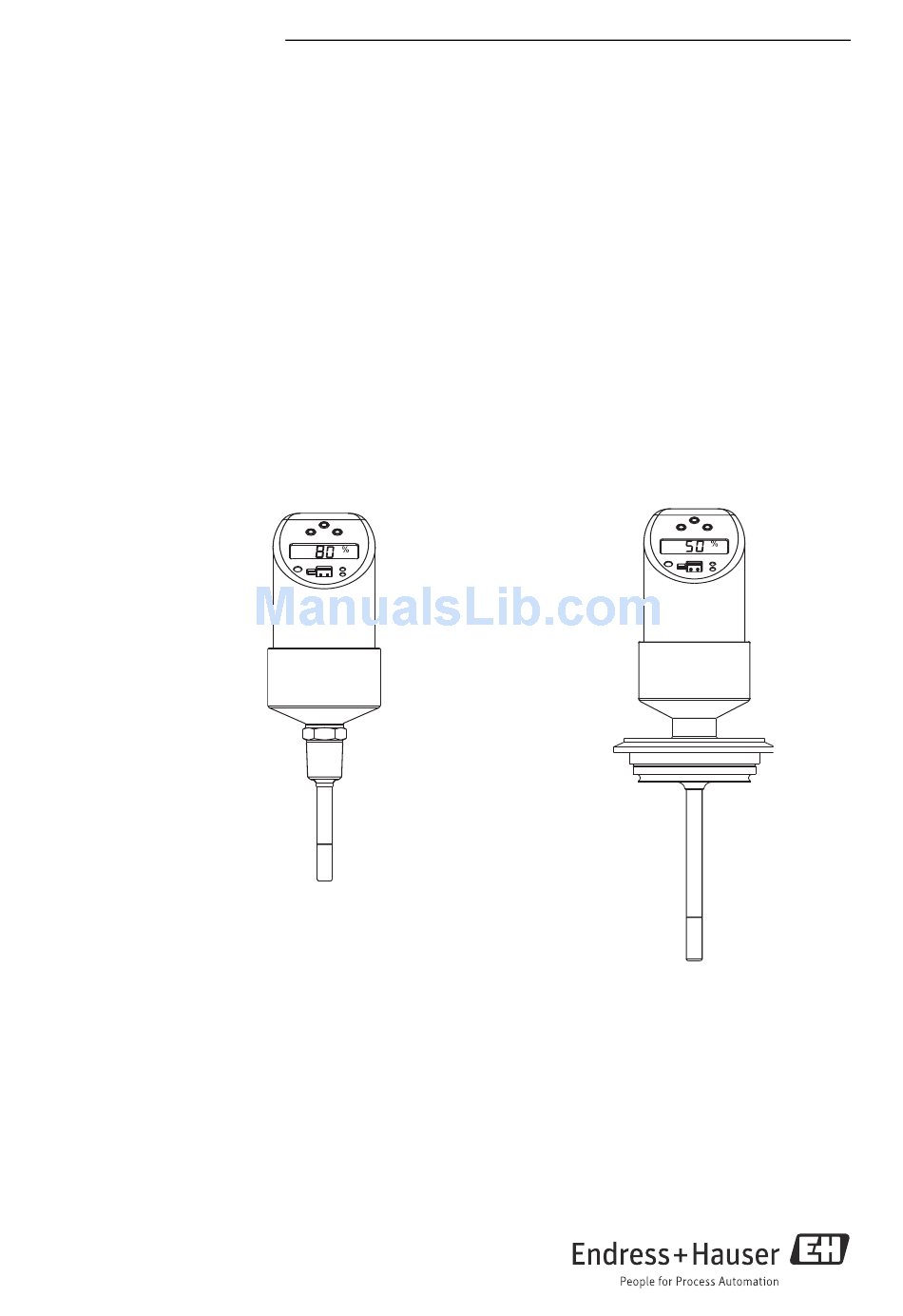

    Products Solutions Services BA00235R/09/EN/16.14 71252244 SW Version 01.00 Operating Instructions Flowphant T DTT31, DTT35 Flow Switch AUTHORIZED DISTRIBUTOR: InstrumentsAndControl.com Houston, Texas USA sales@InstrumentsAndControl.com 832-615-3588...
  • Page 2 Brief overview For quick and easy commissioning: Safety instructions → Page 4 Æ Installation → Page 7 Æ Wiring → Page 13 Æ Operation → Page 14 Display and operating elements Onsite operation Operation with PC and configuration software Æ Troubleshooting →...

  • Page 3: Table Of Contents

    Change status (release) ... . . 33 Software history ....33 Endress+Hauser...

  • Page 4: Safety Instructions

    The Flowphant T is not approved for use in Ex-areas. Return The following procedures must be carried out before a device is returned to Endress+Hauser: • Always enclose a fully completed “Declaration of Contamination” form with the device. Only then can Endress+Hauser transport and examine a returned device. A copy of the “Declaration of Contamination”...

  • Page 5: Notes On Safety Conventions And Icons

    This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in minor or medium injury. A0011191-EN NOTICE This symbol contains information on procedures and other facts which do not result in personal injury. A0011192-EN Indicates additional information, Tip A0011193 Endress+Hauser...

  • Page 6: Device Identification

    CE mark. Hygiene standard The DTT35 flow switch meets the requirements of Sanitary Standard no. 74-06. Endress+Hauser confirms this by applying the 3–A symbol (not valid for process connection conical metal-metal). Endress+Hauser...

  • Page 7: Installation

    Version L with 30 and 100 mm (1.18 and 3.94 in) for DTT31 Version L with 30, 50 and 100 mm (1.18, 1.97 and 3.94 in) for DTT35 M12x1 connector as per IEC 60947-5-2 M16x1.5 or NPT ½" valve connector as per DIN 43650A/ISO 4400 Endress+Hauser...

  • Page 8: Process Connection

    (1.18 or 3.94 in) • 19 mm (0.75 in) • 8.1 mm (0.32 in) Thread process connection cylindrical as per ISO 228: • G¼" (n = AF19) • 12 mm (0.47 in) • G½" (n = AF27) • 14 mm (0.55 in) Endress+Hauser...
  • Page 9 DIN 11851, DN50, PN40 (including coupling nut) DIN 11851, DN25, PN40 (including coupling nut) DIN 11851, DN40, PN40 (including coupling nut) The maximum process pressure for the conical metal-metal process connection (→ Fig. 4, item MB) is 16 bar! Endress+Hauser...

  • Page 10: Installation Instructions

    Installation from above (see Fig. 5) only if the pipe is completely filled with medium during operation. • For vertical pipes: installation in the ascending pipeline. • Installation of DTT35 by min. 3° inclination, because of self draining. 3° A0006977 Fig. 6: Correct orientation Endress+Hauser...
  • Page 11 Fig. 8: Installation in hygienic processes Milk pipe connection as per DIN 11851 (connection PL, PG, PH), only in linkage with EHEDG certified and self centering ring Varivent and APV-Inline (connection LB, LL, HL) Clamp as per ISO 2852 (connection DB, DL) Endress+Hauser...
  • Page 12 15 × DN 3 × DN 10 × DN 3 × DN 5 × DN 3 × DN A0023225 Fig. 9: Inlet and outlet run Reduction Expansion 90° elbow or T-section Pump Control valve 2x 90° elbow 2- or 3-dimensional Endress+Hauser...

  • Page 13: Wiring

    R2 = diagnosis/NC contact (more information on DESINA can be found at www.desina.de). NOTICE Once connected to the power supply, the sensor tip of the device heats up! The temperature can reach up to approx. 90 °C (194 °F). Endress+Hauser...

  • Page 14: Dc Voltage Version With Valve Connector

    Red = error/fault Yellow LEDs for switching states LED red/green blinking = warning LED on = switch closed LED off = switch open Communication jack for personal computer A0020825-EN Fig. 11: Position of operating elements and possibilities for display Endress+Hauser...
  • Page 15 Query to save data (select "YES" or "NO" with the + or − key) –Confirm with the E key Changes to the parameter settings only become effective if you choose s ' Y ES' when asked to save data. Endress+Hauser...
  • Page 16 Return to the CAL function group (Home position) with the E key The device is still operative if message W432 appears. There can be large measuring uncertainties however. Recommendation: Repeat ' L earn' process (points 1 to 4) until "OK" appears on the display. Endress+Hauser...
  • Page 17 Return to the OUT function group (Home position) with the E key The device is still operative if message "W432" or "NOK" appears. However, large deviations at the switch point may result. Recommendation: Repeat ' L earn' process (points 1 to 4) until "OK" appears on the display. Endress+Hauser...
  • Page 18 Operation DTT31, DTT35 5.1.4 Structure of the operating menu for 2 switch outputs A0005784 Fig. 15: Operating menu: A function groups, B functions, C settings Endress+Hauser...
  • Page 19 DTT31, DTT35 Operation 5.1.5 Structure of the operating menu for 1 x analog output (4 to 20 mA) and 1 x switch output. A0006819 Fig. 16: Operating menu: A function groups, B functions, C settings Endress+Hauser...

  • Page 20: Basic Settings

    Learn High RUN, WAIT: setting for the maximum flow rate Calibration Flow WAIT occurring. 100% value (→ Page 16) LOWF Learn Low RUN, WAIT: setting for the minimum flow rate Flow WAIT occurring. 0% value (→ Page 16) Endress+Hauser...
  • Page 21 FLOW: flow rate or TEMP: temperature OUT2 Factory setting: FLOW Output 2, optional UNIT Technical ×C Temperature unit selection °C or °F unit ×F Function only visible if the switching mode MODE is set to temperature TEMP in the 2nd output. Factory setting: °C Endress+Hauser...
  • Page 22 Can be set anywhere between 0 and 99 s in TSP2 point delay increments of 1 second. Factory setting: 0 s Switchback Can be set anywhere between 0 and 99 s in TRSP point delay increments of 1 second. TRSP2 Factory setting: 0 s Endress+Hauser...
  • Page 23 1 °C (1 °F) if the switching mode MODE is set to temperature TEMP. Factory setting: 55 °C Switch point RUN, WAIT: take the current flow rate as the ’Learn’ WAIT switch point SP. See ’Navigating the Learn function’ (→ Page 16). Endress+Hauser...
  • Page 24 Can be set anywhere between 0 and 99 s in delay increments of 1 second. Factory setting: 0 s TRSP Switchback Can be set anywhere between 0 and 99 s in point delay increments of 1 second. Factory setting: 0 s Endress+Hauser...
  • Page 25 OFF: no simulation version (4 to 20 for 1 x OPEN OPEN: switch output open analog CLOS CLOS: switch output closed output SIMA (SIMA) 3.5, 4, 8...: and 1 x Simulation values for analog output in mA switch (3.5/4.0/8.0/12.0/16.0/20.0/21.7) output (SIM) Endress+Hauser...

  • Page 26: Operation With Pc And Configuration

    1; optionally switch output 2 INFO TAG 1 Tagging, 18-digit (device TAG 2 information) Order code Order code Device serial number Sensor serial number Electronics serial number Device revision Display of entire revision Hardware revision Software revision Endress+Hauser...

  • Page 27: Maintenance

    FieldCare is an universal configuration software based on FDT/DTM technology. NOTICE To configure the Flowphant T DTT31/35 with FieldCare the “PCP (ReadWin) Communication DTM” and the Flowphant Device-DTM are required. The device supports only offline configuration and up-/download of parameters. The online configuration is not supported.

  • Page 28: Accessories

    Order no. 51004752 30 (1.18) A0020710 7.1.3 Welding boss with sealing taper (metal - metal) Welding boss 30 (1.18) Seal, metal-metal, Material of parts in contact with process: 316L G½” Max. process pressure 16 bar (232 psi) Order no. 60021387 A0006621 Endress+Hauser...

  • Page 29: Electrical Connection

    Connection to M12x1 housing connector Order number: 52006263 P01-PMP13xxx-00-xx-00-xx-003 Coupling M12x1 for own assembly of the 35 (1.38) connecting cable; elbowed Connection to M12x1 housing connector Degree of protection (connected): (0.79) IP67, PG7 Order number: 51006327 (1.61) 14.8 (0.58) A0020722 Endress+Hauser...

  • Page 30: Configuration Kit

    PCs with USB port, Order code: TXU10-AA • Configuration kit "Commubox FXA291" with interface cable for PCs with USB port. Intrinsically safe CDI interface (Endress+Hauser Common Data A0008067 Interface) for transmitters with 4-pole post connector. Suitable device configuration tool is e.g. FieldCare.

  • Page 31: Configuration Software

    The ReadWin 2000 and FieldCare ' D evice Setup' configuration programs can be downloaded free of charge from the Internet at the following address: • www.endress.com/readwin • www.products.endress.com/fieldcare FieldCare ' D evice Setup' can also be ordered from an Endress+Hauser sales office. Endress+Hauser...

  • Page 32: Troubleshooting

    Device configuration faulty Reset device (→ Chap. 5.1.10) E012 Error in measurement or medium temperature outside Check medium temperature, return device measurable range to Endress+Hauser where necessary E013 Sensor heating defective Return device to Endress+Hauser E019 Power supply outside specification...

  • Page 33: Repair

    Repair A repair is not planned. Disposal Please pay particular attention to the local disposal regulations of your country. When disposing, ensure that the materials of the device components are separated and processed accordingly. Endress+Hauser...

  • Page 34: Change Status (Release)

    Calibration function: Variable BA235r/09/en/11.08 configuration for HIF (70 to (71036991) 100%) and LOWF (0 to 20%); Warning message W200 11.2008 01.00.04 BA235r/09/en/06.09 (71098494) 11.2008 01.00.04 BA235r/09/en/13.10 (71098494) 07.2013 01.00.08 BA00235R/09/EN/14.13 (71226085) 01.2014 01.00.08 BA00235R/09/EN/15.14 (71243850) 04.2014 01.00.08 BA00235R/09/EN/16.14 (71252244) Endress+Hauser...
  • Page 35 Linear drop to 3.8 mA • Over ranging: Linear rise to 20.5 mA • Sensor breakage; sensor short-circuit: ≤ 3.6 mA or ≥ 21.0 mA (output 21.7 mA is guaranteed for setting ≥ 21.0 mA) • Switch outputs: with safe status (switch open) Endress+Hauser...

  • Page 36: Operating Conditions

    • Process pressure limits Maximum permitted process pressure p ≤ 10 MPa = 100 bar (1450 psi) max. NOTICE The maximum process pressure for the conical metal-metal process connection (MB option) for the DTT35 is 1.6 MPa = 16 bar (232 psi)! Endress+Hauser...
  • Page 37 DTT31, DTT35 Technical data Endress+Hauser...
  • Page 38 Technical data DTT31, DTT35 Endress+Hauser...
  • Page 39 DTT31, DTT35 Technical data Endress+Hauser...
  • Page 40 www.addresses.endress.com...
