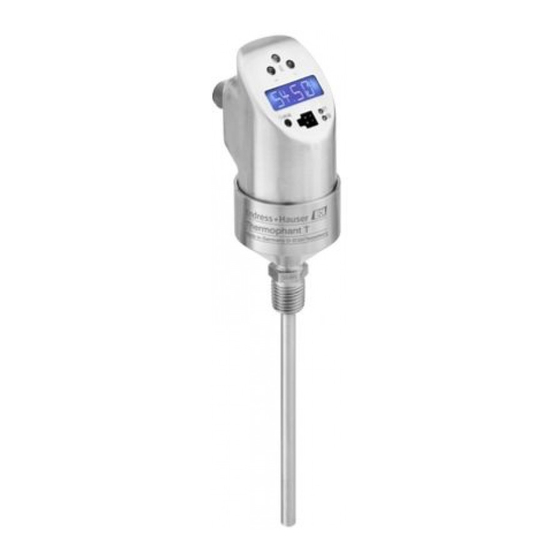

Endress+Hauser Thermophant T TTR31 Operating Manual

Endress+Hauser Thermophant T TTR31 Operating Manual

Temperature switch
Hide thumbs Also See for Thermophant T TTR31:
Table of Contents

Advertisement

Quick Links

Download this manual
Operating manual
®
Thermophant
T TTR31, TTR35
Temperature switch
BA229R/09/en/03.06
71025405
Release 01.02.01

Advertisement

Table of Contents
loading

Related Manuals for Endress+Hauser Thermophant T TTR31

Summary of Contents for Endress+Hauser Thermophant T TTR31

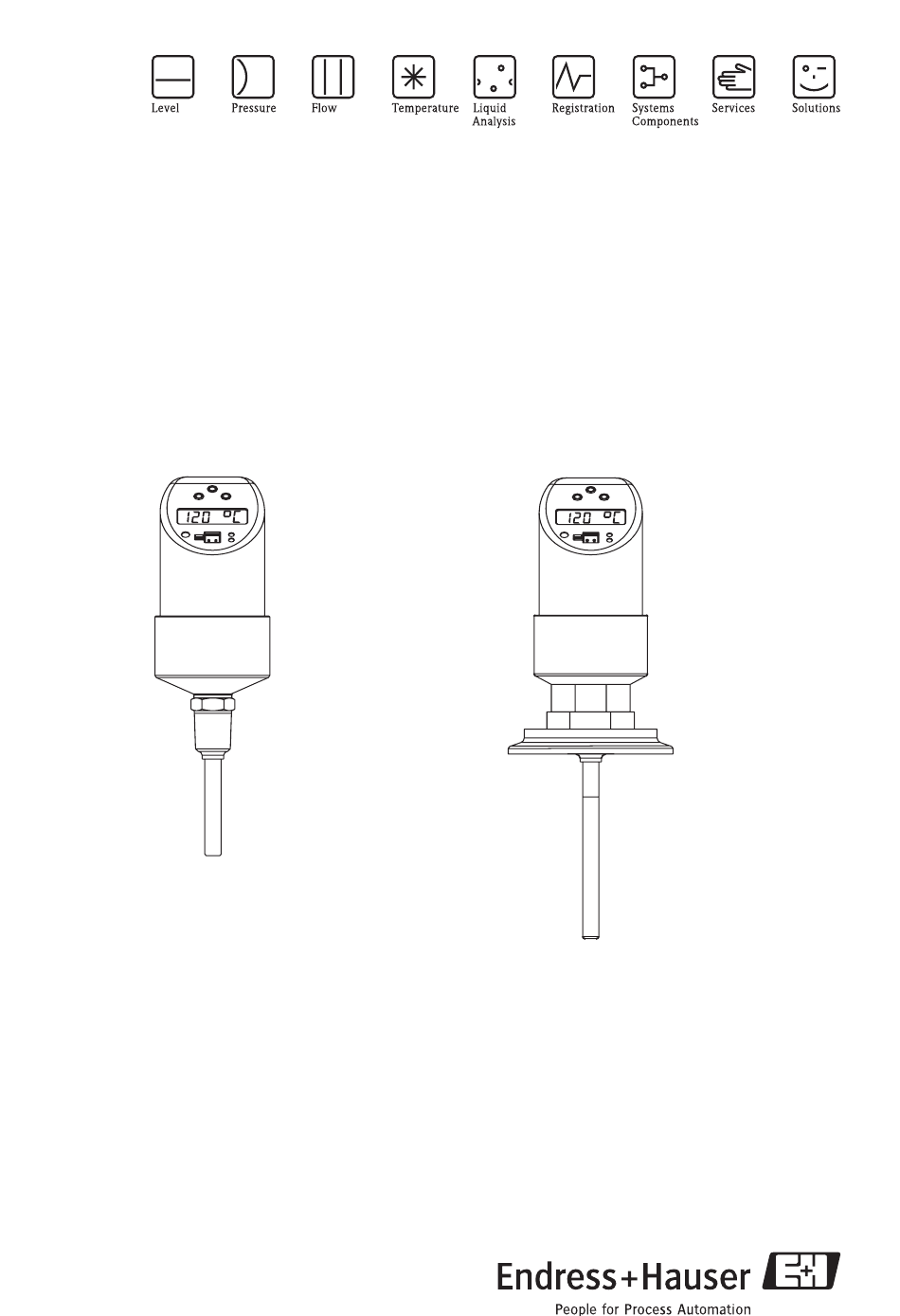

  • Page 1 Operating manual ® Thermophant T TTR31, TTR35 Temperature switch BA229R/09/en/03.06 71025405 Release 01.02.01...
  • Page 2 Brief overview Using the following short form instructions you can commission your system easily and swiftly: → Page 4 Safety instructions Æ → Page 6 Installation Æ → Page 9 Wiring Æ → Page 10 Operation Display and operating elements On-site operation Operation with PC and configuration software Æ...

  • Page 3: Table Of Contents

    8. 2 Output ......28 8. 3 Operating conditions ....28 Endress+Hauser...

  • Page 4: Safety Instructions

    T is not approved for use in Ex-areas. 1. 4 Return The following procedures must be carried out before a device is returned to Endress+Hauser: • Always enclose a fully completed “Declaration of Contamination” form with the device. Only then can Endress+Hauser transport and examine a returned device. A copy of the “Declara- tion of Contamination”...

  • Page 5: Device Identification

    Release number (change status) Degree of protection Connection values Approvals Note! The release number indicates the change status of the device. A change in the last two figures does not have any affect on the compatibility - see also → Chap. 7. Endress+Hauser...

  • Page 6: Installation

    ø6 (0.24) T09-TTR31xxx-06-xx-xx-en-000 Fig. 2: Dimensions in mm (inches) Version L in 50, 100 and 200 mm (1.97, 3.94 and 7.87") M 12x1 connector as per IEC 60947-5-2 M 16x1.5 or ½ NPT valve plug as per DIN 43650A/ISO 4400 Endress+Hauser...

  • Page 7: Process Connection

    (see section 6) ½" NPT (m = AF27) per ISO 228 (see section 6.1.2) Sensor length L Version L in 50, 100 and 200 mm (1.97, 3.94 and 7.87") Measuring range -50 °C to +150 °C (-58 °F to 302 °F) Endress+Hauser...

  • Page 8: Installation Instructions

    • The housing can be rotated up to 310° " Caution! Do no thread into process connection by turning housing. Always use a wrench on the process connnection fluts (→ Fig. 3, Pos. 1) to tighten the sensor into the process connection. Endress+Hauser...

  • Page 9: Wiring

    DESINA (→ Chap. 5.1.3 Basic settings): R2 = Diagnosis/break contact (more informations about DESINA see www.desina.de) 4. 2 DC voltage version with valve connector P01-PTx3xxxx-04-xx-xx-xx-003 ® Fig. 5: Thermophant T with M 16x1.5 or ½ NPT valve plug B: 1x PNP switch output Endress+Hauser...

  • Page 10: Operation

    T is operated by means of three keys. The digital display and the light emitting diodes (LED) support navigation in the operating menu. T09-TTR31xxx-19-xx-xx-en-001 Fig. 6: Position of operating elements and possibilities for display Digital display illumination: – White = OK status – Red = error status Endress+Hauser...
  • Page 11 Query to save data (select "YES" or "NO" with the + or − key) – Confirm with the E key Note! Changes to the parameter settings only become effective if you choose s 'YES' when asked to save data. Endress+Hauser...
  • Page 12 Operation TTR31, TTR35 5.1.2 Structure of the operating menu The structure below shows all the possible fields of the operating menu. T09-TTR31xxx-19-xx-xx-xx-003 Fig. 8: Operating menu: A function groups, B functions, C settings Endress+Hauser...
  • Page 13 180° SP: set switch point display SPRO: set switch point display rotated 180° OFF: display off OFFR: display off rotated 180° Damping: 0...40 s display value, out- put signal DESINA Connection in accord- ance with DESINA guidelines Endress+Hauser...
  • Page 14 URL = Upper Range Limit LRV = Lower Range Value URV = Upper Range Value T09-TTR31xxx-05-xx-xx-xx-001 Fig. 9: m Hysteresis function, n Window function, o NO contact switch status , p NC contact switch sta- tus SP Switch point; RSP Switch-back point Endress+Hauser...
  • Page 15 0.1 °C (0.18 °F) Switch point delay Delay time 0...99 s in increments of 0.1 s Switch-back point Delay time 0...99 s delay in increments of 0.1 s Min. distance between SP and RSP: 0.5 °C/K (0.9 °F) Endress+Hauser...
  • Page 16 (not vial (URV) PC software) Error current Current value in event of error: MIN = ≤ 3.6 mA MAX = ≥ 21.0 mA HOLD = last value Min. distance between SETL and SETU: 20 °C/K (36 °F) Endress+Hauser...
  • Page 17 Switch output open CLOS: Switch output closed 3.5: (if analog out- Simulation values for ana- put available) log output in mA (3.5/4.0/8.0/12.0/16.0 /20.0/21.7) Max. indicator Display of max. measured process value Min. indicator Display of min. measured process value Endress+Hauser...

  • Page 18: Operation With Pc And Readwin® 2000

    Description SERV Number of switch changes for output 1 Number of switch changes for output 2 Device status INFO Tag number Order code Limit switch serial number Sensor serial number Electronics serial number Device release (change status) Hardware version Endress+Hauser...

  • Page 19: Accessories

    (see section 3. 3, process connection). As a result, the process connection can easily be changed at a later stage. 6.1.1 Adapter change The adapter can be changed on TTR35. T09-TTR31xxx-17-xx-xx-xx-000 Fig. 11: Changing the adapter m Sensor module with adapter thread n Standard O-ring o Adapter Endress+Hauser...
  • Page 20 EN10204-3.1 = Material certificate (melt analysis) DTT35: order numbers for clamp adapter ver- sions. • Version DB Without EN10204-3.1: order no. 71020524 With EN10204-3.1: order no. 51008165 • Version DL Without EN10204-3.1: order no. 71020525 With EN10204-3.1: order no. 51008166 P01-PTx3xxxx-06-xx-xx-en-009 Endress+Hauser...
  • Page 21 • Version PL Without EN10204-3.1: order no. 71020528 With EN10204-3.1: order no. 51008169 Coupling nut: order no. 51009525 P01-PTx3xxxx-06-xx-xx-en-010 6.1.3 O-ring for adapter replacement O-ring 15.54 x 2.62 mm (0.61 x 0.1 in), EPDM 70 Shore FDA, order no. 51008363 Endress+Hauser...
  • Page 22 6.2.2 Collar welding boss Material of parts in contact with process: 316L Order no. 51004752 T09-TSM470BX-06-09-00-en-000 6.2.3 Coupling with sealing taper G ½" process connection Seal, moveable coupling, material of parts in con- tact with process: 316L Order no. 51004753 T09-TSM470AX-06-09-00-en-001 Endress+Hauser...

  • Page 23: Electrical Connection

    LED, elbowed, 316L screw plug, length 5 m (16.4 ft), especially for hygienic ye 2 applications, degree of protection (connected): IP 69K Order no. 52018763 Display: − gn: device operational − ye1: switch status 1 − ye2: switch status 2 T09-TTR31xxx-00-00-xx-xx-001 Endress+Hauser...

  • Page 24: Configuration Kit

    PCs with USB port; Adapter for transmitters with 4-pole post connector Order code: TXU10-AA ® • ReadWin 2000 can be downloaded free of charge directly from the internet at the fol- T09-TTR31xxx-00-00-xx-xx-000 lowing address: www.endress.com/readwin Endress+Hauser...

  • Page 25: Trouble-Shooting

    VCC (Controller voltage) is out of working area E042 Output current cannot be generated (e. g. output is not connected, unloaded) E044 Output current drifts too much (± 0.5 mA) Code Explanation W107 Simulation active W202 Temperature outside the sensor range Endress+Hauser...

  • Page 26: Repair

    Compatibility provided. Operating Instructions change. Trouble-shooting and internal modifications. Operating Instructions do not change. 7. 5 Release history Date Release no. Device and soft- Changes Operating manual device ware-No. (Firmware/Software) 06.2004 01.00.00 01.00.00 KA174r/09/en (51008032) 12.2004 01.01.00 01.00.00 New analog BA201r/09/en/02.05 electronics (51009833) Endress+Hauser...
  • Page 27 TTR31, TTR35 Trouble-shooting Date Release no. Device and soft- Changes Operating manual device ware-No. (Firmware/Software) 02.2005 01.02.00 01.01.00 Internal BA201r/09/en/02.05 (51009833) 02.2006 01.02.01 01.01.01 Parameter BA229r/09/en/03.06 functional (71025405) safety for the optional ana- log output is not applicable Endress+Hauser...

  • Page 28: The Most Important Technical Data

    8. 3 Operating conditions • Any orientation • Any position-dependent zero shift can be corrected Offset: ±20 % URL Operating conditions: Environment • Ambient temperature range –40...+85 °C (-40...+ 185 °F) • Storage temperature –40...+85 °C (-40...+ 185 °F) Endress+Hauser...
  • Page 29 85 °C (185 °F) 100 °C (212 °F) • Process pressure limits p/T load diagram as per DIN 43763 or Dittrich T09-TSM470ZZ-05-00-xx-en-000 Fig. 12: p/T load diagram L = insertion length = medium velocity air = medium velocity water Endress+Hauser...
  • Page 30 Hiermit bestätigen wir, dass die zurückgesandten Teile sorgfältig gereinigt wurden, und nach unserem Wissen frei von Rückständen in gefahrbringender Menge sind. _____________________________________________ ______________________________________________ (place , date / Ort, Datum (Company stamp and legally binding signature) (Firmenstempel und rechtsverbindliche Unterschrift) Endress+Hauser...
  • Page 31 TTR31, TTR35 Dangerous good sheet Endress+Hauser...
  • Page 32 www.endress.com/worldwide BA229R/09/en/03.06 71025405 CCS/FM6.0+SGML...
