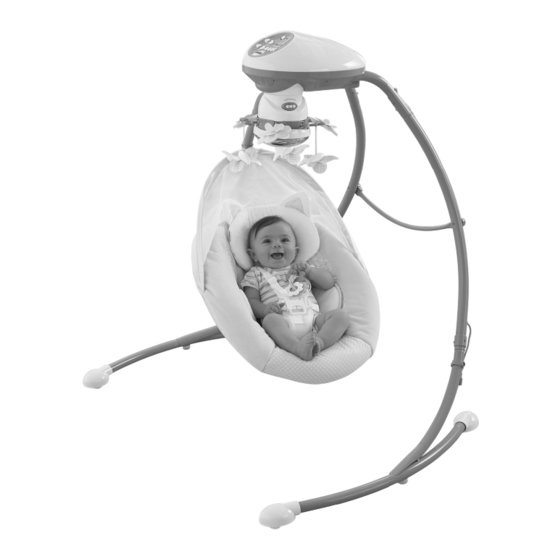

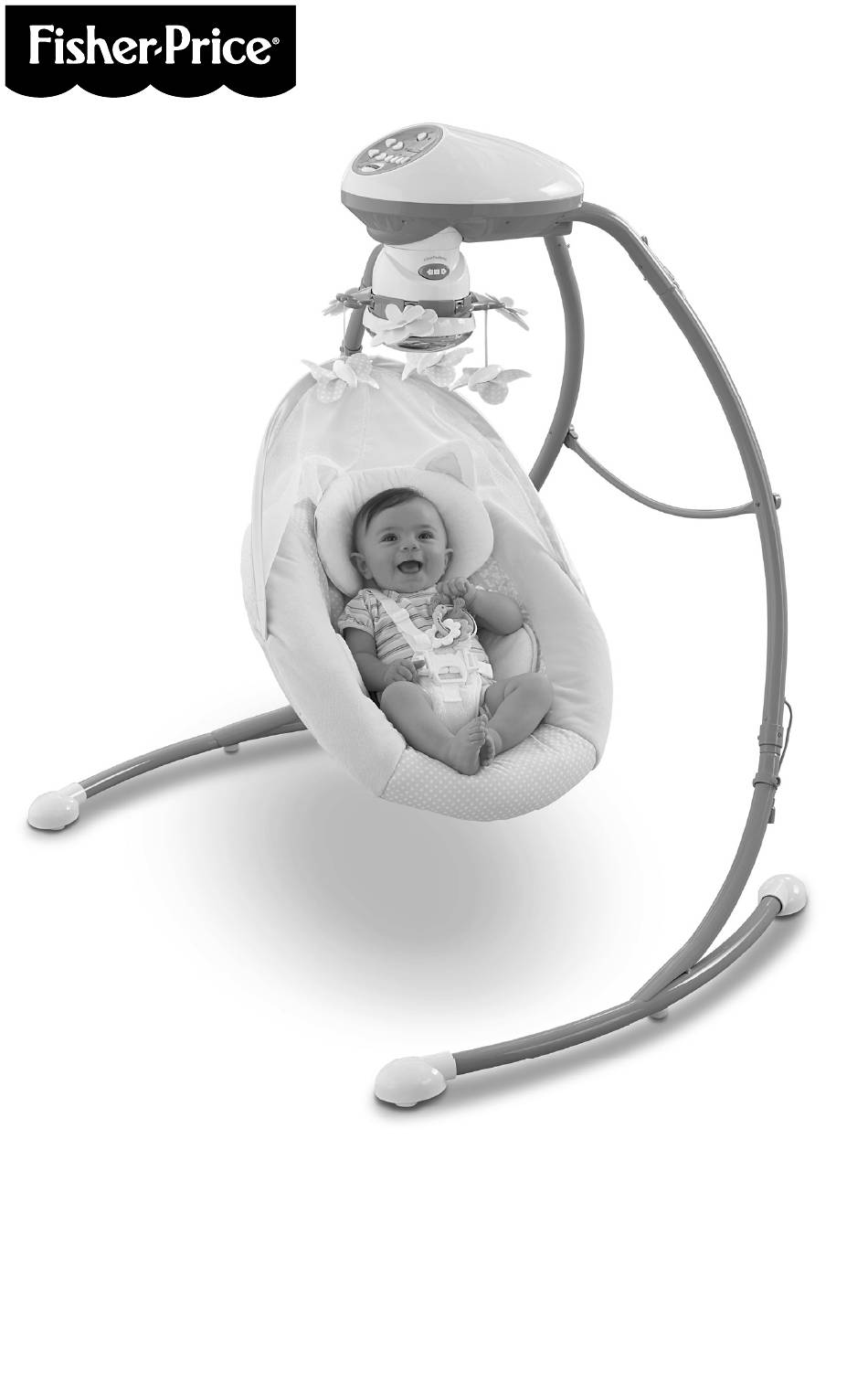

BGB32
IMPORTANT! Please keep these instructions for future reference.
Please read these instructions before assembly and use of this product.
IMPORTANT! Conserver ce mode d'emploi pour s'y référer en cas de besoin.
Lire attentivement ce mode d'emploi avant d'assembler et d'utiliser le produit.
fisher-price.ca
1
Advertisement
Related Manuals for Fisher-Price BGB32
Summary of Contents for Fisher-Price BGB32
- Page 1 BGB32 IMPORTANT! Please keep these instructions for future reference. Please read these instructions before assembly and use of this product. IMPORTANT! Conserver ce mode d’emploi pour s’y référer en cas de besoin. Lire attentivement ce mode d’emploi avant d’assembler et d’utiliser le produit.
- Page 2 Consumer Information Renseignements pour les consommateurs WARNING Prevent death: Keep seat fully reclined until child is at least 4 months old AND can hold head up without help. Young infants have limited head and neck control. If seat is too upright, infant’s head can drop forward and compress the airway, resulting in DEATH.
- Page 3 Consumer Information Renseignements pour les consommateurs IMPORTANT! Maximum Weight Limit: 25 lb (11,3 kg). If your child weighs less than 25 lb (11,3 kg), but is really active and appears to be able to climb out of the swing, immediately discontinue its use. •...
- Page 4 Parts Pièces Motorized Frame Mobile Dome Boîtier motorisé Dôme du mobile 2 Lower Legs 2 pattes inférieures 2 Upper Legs 2 pattes supérieures Pad with Headrest 2 Side Rails Coussin avec appuie-tête 2 montants latéraux Seat with Restraint System Siège avec système de retenue Body Support 4 Feet Canopy Stay...
- Page 5 NE PAS utiliser le produit si des pièces manquent ou sont endommagées. Communiquer avec Fisher-Price pour obtenir des pièces de rechange et des instructions au besoin. N’utiliser que des pièces du fabricant.
- Page 6 Assembly Assemblage Upper Leg Patte supérieure Lower Leg Patte inférieure • Fit an upper leg onto a lower leg. Hint: The upper legs are designed to fit the lower legs one way. If it does not seem to fit, try the other upper leg.
- Page 7 Assembly Assemblage Motorized Frame Tube Tube du boîtier motorisé PRESS APPUYER • While pressing the button on a leg assembly, fit it into a tube on the motorized frame. • Make sure the button on the leg “snaps” into the hole in the tube. •...
- Page 8 Assembly Assemblage • Plug the power cord from the motorized frame assembly into the power cord in the frame assembly. • Brancher le cordon d’alimentation du boîtier motorisé sur le cordon d’alimentation du cadre. Side Rail Montant latéral Side Rail Montant latéral Seat Siège...
- Page 9 Assembly Assemblage Lower Seat Tube Tube inférieur du siège Short Tube Tube court SIDE VIEW VUE DE CÔTÉ • Fit the lower seat tube into the short tube on the seat back. • Insérer le tube inférieur du siège dans le tube court du dossier. M5 x 40 mm Bolt Boulon M5 de 40 mm •...
- Page 10 Assembly Assemblage Upper Seat Tube Tube supérieur du siège Lower Seat Tube Tube inférieur du siège • Fit the lower seat tube onto the upper seat tube. • Insérer le tube inférieur du siège dans le tube supérieur du siège. M5 x 40 mm Bolt Boulon M5 de 40 mm FRONT VIEW...
- Page 11 Assembly Assemblage Coussin Waist Belts Courroies abdominales • Insert the waist belts through the lowest slots in the pad. Make sure the waist belts are not twisted. • Fold the top of the pad down. • Insérer les courroies abdominales dans les fentes inférieures du coussin. S’assurer que les courroies ne sont pas tortillées.
- Page 12 Assembly Assemblage Upper Slots Fentes supérieures Larger Baby • Insert the shoulder belts through the upper slots in the seat pad back. Enfant plus grand • Insérer les courroies d’épaule dans les fentes supérieures à l’arrière du coussin. • Fit the pad edges around the rim of the seat. •...
- Page 13 Assembly Assemblage Elastic Loops Boucles élastiques SIDE VIEW VUE DE CÔTÉ • Hook both elastic loops at the top of the seat pad around the pegs at the top of the seat. • Hook both elastic loops at the bottom of the seat pad around the pegs at the bottom of the seat.
- Page 14 Assembly Assemblage • Fit the end of the canopy stay into the button hole in the canopy sleeve . Slide the canopy stay through the canopy sleeve • Fit the free end of the canopy stay into the button hole •...
- Page 15 Battery Installation Installation des piles Hint: Install batteries if you need to use this swing away from an outlet. We recommend using alkaline batteries for longer battery life. Remarque : Installer des piles dans le produit pour pouvoir l’utiliser dans un endroit où il n’y a pas de prise de courant.
- Page 16 Battery Safety Information Mises en garde au sujet des piles In exceptional circumstances, batteries may leak fluids that can cause a chemical burn injury or ruin your product. To avoid battery leakage: • Do not mix old and new batteries or batteries of different types: alkaline, standard (carbon-zinc) or rechargeable (nickel-cadmium).
- Page 17 Setup and Use Installation et utilisation WARNING Prevent death: Keep seat fully reclined until child is at least 4 months old AND can hold head up without help. Young infants have limited head and neck control. If seat is too upright, infant’s head can drop forward and compress the airway, resulting in DEATH.
- Page 18 Setup and Use Installation et utilisation Shoulder Belt Courroie d’épaule Shoulder Belt Courroie d’épaule Waist Belt Courroie abdominale Waist Belt Courroie abdominale Restraint Pad Coussinet de retenue Restraint System • Place your child in the seat. Position the restraint pad between your child’s legs. •...
- Page 19 Setup and Use Installation et utilisation TIGHTEN LOOSEN SERRER DESSERRER • To tighten the waist belts: Feed the anchored end of the belt up through the buckle to form a loop . Pull the free end of the belt . Repeat this procedure to tighten the other belt. •...
- Page 20 Setup and Use Installation et utilisation PRESS APPUYER TURN TURN TOURNER TOURNER Cradle Swing Berceau Balancelle You can adjust the motion of the swing: side to side or front to back. • Press the seat tube button to unlock the seat tube. •...
- Page 21 Setup and Use Installation et utilisation Upright Upright Redressée Redressée Recline Recline Inclinée Inclinée PRESS APPUYER You can adjust the seat to two different positions: Recline or Upright. • From behind the seat, press both seat position buttons. • Push the seatback up until the buttons “snap” into the upright position. •...
- Page 22 Setup and Use Installation et utilisation AC Power Use • Place the swing near a standard wall outlet. • Plug the AC adaptor into the power cord extending from the back of a leg. • Plug the AC adaptor into the wall outlet. •...
- Page 23 Swing Use Utilisation de la balancelle Power Switch Interrupteur Swing Speed Buttons Boutons de vitesse de balancement Mobile Button Bouton du mobile Volume Buttons Boutons du volume Music & Sounds Buttons Boutons de la musique et des sons Swing • Slide the power switch •...
- Page 24 Care and Storage Entretien et rangement • Unbuckle the restraint system. • Remove the top of the canopy from the clip on swing tube. Slide the canopy stay out of the canopy sleeve through the buttonhole on the right hand side. •...
- Page 25 Care and Storage Entretien et rangement • Pull the end of the frame support bar off the leg and lower it • Push the legs together • Tirer sur l’extrémité de la barre de soutien et la baisser • Rapprocher les pattes •...
- Page 26 Adults Note: If you use this product with the AC adaptor, periodically examine the AC adaptor for damage to the cord, housing or other parts that may result in the risk of fire, electric shock or injury. If the AC adaptor is damaged, do not use the product with the AC adaptor.
- Page 27 Consumer Information Renseignements pour les consommateurs FCC Statement (United States Only) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 28 CANADA Mattel Canada Inc., 6155 Freemont Blvd., Mississauga, Ontario L5R 3W2. 1-800-432-5437 UNITED STATES 1-800-432-5437. Fisher-Price, Inc., 636 Girard Avenue, East Aurora, NY 14052. Hearing-impaired consumers: 1-800-382-7470. ©2014 Mattel. All Rights Reserved. Tous droits réservés. PRINTED IN MEXICO/IMPRIMÉ AU MEXIQUE...
