Care & Cleaning
DOS
• Read these cleaning instructions and the 'Safety and warnings'
section before you start cleaning your cooker.
• Before cleaning or removing any part, make sure that
everything on the cooker has been turned off.
• Unless suggested otherwise in the chart following, allow any
part to cool to a safe temperature before cleaning. If you do
need to handle a warm or hot part, take extreme care. Wear
long protective mitts to avoid burns from steam or hot surfaces.
• Try using any cleaner on a small area first, to ensure it doesn't
stain.
• See the pages following this chart for instructions on removing
and replacing different parts of the cooker for cleaning or
maintenance.
• To help you identify any parts, see illustrations in section
'Introduction' and after this cleaning chart.
• Ensure the anti-tip device is re-engaged if you move the cooker
for cleaning. Failure to do this may result in the oven tipping,
and adults and children may be killed.
• To prevent soiling from becoming 'baked on' and stubborn, we
recommend removing any easy-to-reach spills, food or grease
stains from the oven cavity enamel after each use.
• Always clean the inner glass pane before starting a Self Clean
cycle. Failure to do this will mean that residue will bake on and
be impossible to remove.
• Always remove oven shelves before starting a Self Clean cycle.
https://producthelp.fisherpaykel.com/us/Cook/Ranges/Dual_Fuel/OR30SCG6R1/User_Guide_OR30SCG6R1/07_Care_and_...
DON'TS
• Do not use aerosol cleaners until the
range has completely cooled. The
propellant substance in these
cleaners could catch fire in the
presence of heat.
• Do not let soiling or grease
accumulate anywhere in or on the
range. This will make future cleaning
more difficult and may present a fire
hazard.
• Do not use any abrasive or harsh
cleaners, cloths, scouring pads or
steel wool. These will scratch your
range and damage its appearance.
• Do not use a steam cleaner to clean
any part of the range.
• Do not perform any cleaning or
maintenance on parts not specifically
named in the chart below. If in doubt,
contact Customer Care.
• Only an service technician can take
apart the door.
• Do not attempt to take the door apart
for cleaning. If the inner panes of
glass in the door become dirty,
please contact your Repairer or
Customer Care.
Updated: Sat, 09 Jul 2022 14:42:33 GMT
Powered by
1
Advertisement
Table of Contents

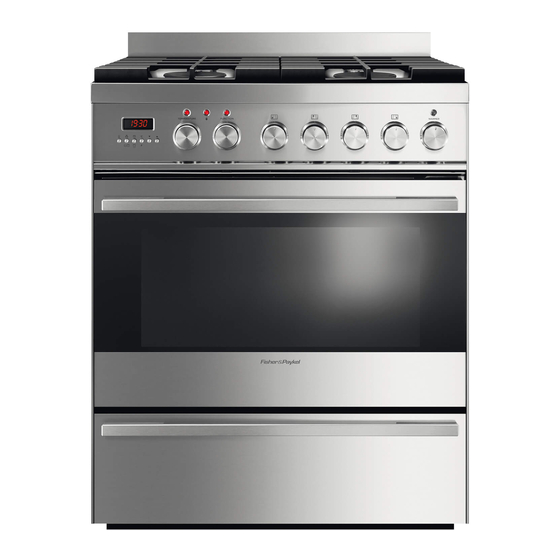

Related Manuals for Fisher & Paykel OR30
Summary of Contents for Fisher & Paykel OR30
- Page 1 Care & Cleaning DON’TS • Do not use aerosol cleaners until the • Read these cleaning instructions and the ‘Safety and warnings’ range has completely cooled. The section before you start cleaning your cooker. propellant substance in these • Before cleaning or removing any part, make sure that cleaners could catch fire in the everything on the cooker has been turned off.
-
Page 2: Manual Cleaning Chart
Manual Cleaning Chart WHAT? HOW? IMPORTANT! HOW OFTEN? Cooker Exterior 1. Soften any stubborn stains under a hot soapy cloth. • Always read the label to make sure your Door frame 2. Clean with a solution of mild stainless steel cleaner does not contain exterior, detergent and hot water, then chlorine compounds as these are corrosive... - Page 3 WHAT? HOW? IMPORTANT! HOW OFTEN? 1 Wipe with a damp cloth and a solution of hot water and mild detergent. 2 Wipe dry with a soft cloth. The oven • To prevent soiling from becoming ‘baked on’ and stubborn, we recommend removing any door may Enamel oven easy-to-reach spills, food or greasy stains...
- Page 4 WHAT? HOW? IMPORTANT! HOW OFTEN? running smoothly. 1. Pre-soak any stubborn soiling in Broil pan and a solution of mild detergent and • Never leave any of these parts in the oven hot water. rack during a Self Clean cycle. They will become discoloured or damaged.
- Page 5 WHAT? HOW? IMPORTANT! HOW OFTEN? solution of hot water and mild detergent. and stubborn, we recommend removing any easy-to-reach spills, food or greasy stains from the enamel after each use. 1. Wipe dry with a soft cloth. Note: the drawer may be removed to make cleaning easier.
- Page 6 WHAT? HOW? IMPORTANT! HOW OFTEN? 1. Check that the burner is turned OFF. • The ignitors must be kept clean and dry to work correctly. Dirty or wet ignitors could 2. Clean the ignitor with a small Ignitors cause constant clicking and sparking, even if brush (eg old toothbrush) or a flame is present.
-
Page 7: Removing And Replacing The Oven Door
Removing & Replacing the Oven Door • Do not lift the oven door by its handle. Doing so may damage the door. • Make sure the oven and the door are cool before you begin to remove the door. • Before removing the door, make sure there is a large enough clear, protected surface in the kitchen to rest the door on. -
Page 8: To Replace The Oven Door
3. Holding the door firmly on both sides, gently close it 4. Disengage the hinges and remove the door. Place on about halfway a protected surface. To Replace the Oven Door 1. Hold the door firmly in an approximately halfway open 2. - Page 9 4. Fully close the levers on the left and right hinges, as 3. Open the door fully. shown, then close the door. Removing & Replacing the Oven Side Racks Always turn off the cooker at the wall first. Ensure the oven has cooled down completely before starting.
- Page 10 To Remove the Side Racks 2. Use a small coin or a flat-head screwdriver to loosen 3. Remove the side racks. and remove the fixing screws. To Replace the Side Racks 1. Make sure the side racks are the right way up, as 2.
- Page 11 shown. Removing & Replacing the Warming Drawer • Always turn off the cooker at the wall first. • Ensure the oven and warming drawer have cooled down completely before starting. • Ensure the drawer is completely empty before removing it. •...
-
Page 12: Replacing The Burner Parts
2. Gently close the drawer completely. The safety catches will automatically hook into place. Burner Parts • You can remove and clean these parts with hot soapy water or non-abrasive detergents. Clean spills regularly before they become burnt on. Do not wash these parts in a dishwasher. •... - Page 13 Both the ignitor and probe must be very carefully cleaned using a toothbrush and methylated spirits. Replacing the Semi-rapid Burners Correct positioning of semi-rapid burner parts Replacing the semi-rapid burner caps https://producthelp.fisherpaykel.com/us/Cook/Ranges/Dual_Fuel/OR30SCG6R1/User_Guide_OR30SCG6R1/07_Care_and_… Updated: Sat, 09 Jul 2022 14:42:33 GMT Powered by...
- Page 14 Replacing the Triple-ring Wok and Dual Burners Correct positioning of flame spreader – triple-ring wok burner Correct positioning of flame spreader – dual burner https://producthelp.fisherpaykel.com/us/Cook/Ranges/Dual_Fuel/OR30SCG6R1/User_Guide_OR30SCG6R1/07_Care_and_… Updated: Sat, 09 Jul 2022 14:42:33 GMT Powered by...
-
Page 15: Replacing Oven Light Bulb
Correct positioning of cap and ring – triple-ring wok Incorrect and correct positioning of cap and ring – and dual burner triple-ring wok and dual burner Replacing Oven Light Bulb Use a 25W, 120V 60HZ G9 halogen bulb for replacement. Do not use a standard light bulb in any oven, the heat will break it. - Page 16 8. Replace the lamp cover. ◦ Upper lights: turn the cover clockwise to tighten and then back a quarter turn 9. Turn the power supply to the cooker back on at the main fuse or circuit breaker panel. OR30 Models OR36 Models https://producthelp.fisherpaykel.com/us/Cook/Ranges/Dual_Fuel/OR30SCG6R1/User_Guide_OR30SCG6R1/07_Care_and_…...
-
Page 17: Using The Self Clean Function
Using the Self Clean Function Using Self Clean Self Clean uses extremely high temperatures to break down and burn off grease and grime. All that is left is a small amount of grey ash that you can easily wipe up. There are two self clean cycles: •... - Page 18 • You must clean the inside glass door panel BEFORE starting a self-clean cycle. Failure to do this may result in permanent staining or marking of the door glass. See ‘Care and cleaning’ for our recommendations on how to do this. •...
- Page 19 Avoid cleaning the seal itself as this may cause damage.. 3. Check the inner glass pane of the oven door. If it has soiling on it (eg stains from greasy splatter), you will need to clean it manually before starting a Self Clean cycle. For instructions, see ‘Care and cleaning’. •...
- Page 20 • Press and hold to confirm. • If the oven door is not closed properly, the display will also prompt you to close the door 4. Press 3. Scroll to choose between Standard Clean and Light Clean. to confirm. Self Clean is Now Set. •...
- Page 21 When Self Clean is Finished • A tone will sound. • Self Clean Complete will show in the display. • The display will flash. • The door will unlock. 1. Press any button to stop the display flashing. 2. Wait for the oven to cool completely. 3.
- Page 22 https://producthelp.fisherpaykel.com/us/Cook/Ranges/Dual_Fuel/OR30SCG6R1/User_Guide_OR30SCG6R1/07_Care_and_… Updated: Sat, 09 Jul 2022 14:42:33 GMT Powered by...
