Lorex SG21FD3044-161 Quick Installaion Manual

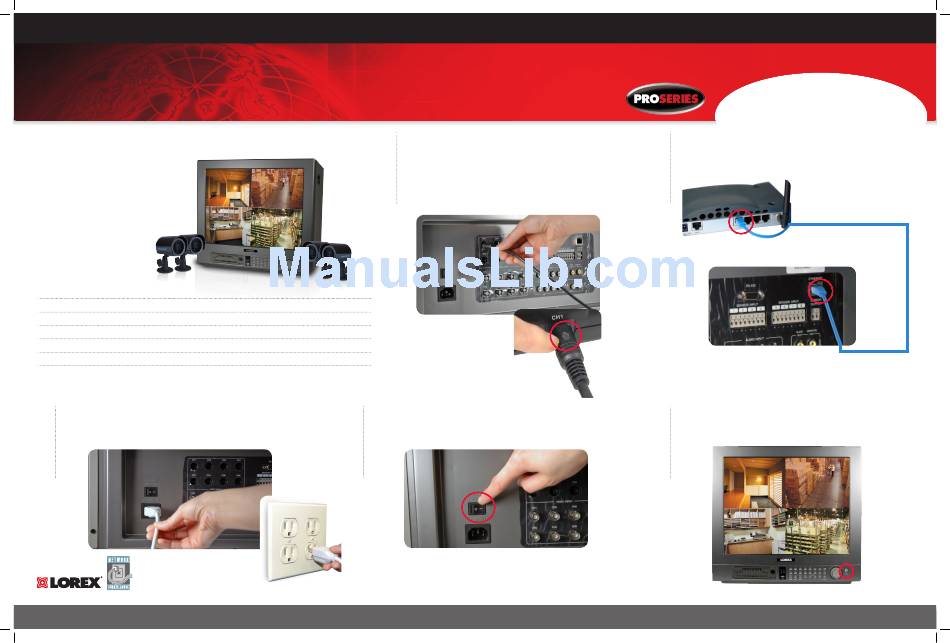

STEP 1
SETTING UP YOUR MONITOR FIRST
21" FLAT SCREEN CRT/DVR OBSERVATION SYSTEM WITH 4
NIGHT VISION CAMERAS
Package Contents
1 - Set up CD Rom (placed inside the owner's manual)
1 - 21" Color Monitor with Built-in Digital Video Recorder
1 - 160 GB Hard Disk Drive (installed inside hard drive bay) 1 - Owner's Manual
1 - Quick Installation Guide
1 - Remote Control with batteries
4 - Colour cameras with sunshade housing 1 - Power Cord
2 - keys (for Hard Drive Bay)
4 - Camera brackets with mounting screws
4 - 100ft (30m) Extension Cables for camera 1 - Network Viewer Guide
1 - 10ft (3m) Ethernet network cable 2 - Warning Decals
1 - Broadband Router and Computer Required, not Included
3
Connect one end of the power adapter (stan-
dard power cable) to the monitor, the other
end to an electrical outlet.
BACK OF THE MONITOR
Information in this document is subject to change without notice. As our products are subject to continuous improvement, Lorex Technology and our subsidiaries reserve the right to modify product design, specifications and prices, without notice and without incurring any obligation. E&OE © 2006 LOREX. All rights reserved.
SG21FD3044-161
Page 1
Version 1.01
1
Connect cameras to the monitor
4 Color cameras are included with the Observation System. These cameras have
a single cable, and receive power directly from the Observation System.
1. Connect the female end of the supplied 57' extension' cable to the camera
2. Connect the male end of the supplied 57' extension cable to an open DIN
channel on the back of the Observation System. Continue connecting
additional DIN cameras.
BACK OF THE MONITOR
4
Turn the Master power switch located at
the back of the monitor 'ON'.
BACK OF THE MONITOR
10 : 00
2
Connect one end of the ethernet cable to a
broadband router (not included) and the other
end to the back of the monitor.
ROUTER (NOT INCLUDED)
NOTE: The arrow mark on
top of the 6 PIN camera
cable(s) should face
BACK OF THE MONITOR
UP while inserting the
6 PIN camera cable(s)
to the Monitor's 6 PIN
connector(s).
5
Press the Standby button to view
picture images.
FRONT OF THE MONITOR
www.lorexcctv.com
STEP 1 SHOULD TAKE
APPROXIMATELY 5 - 10
MINUTES TO COMPLETE
