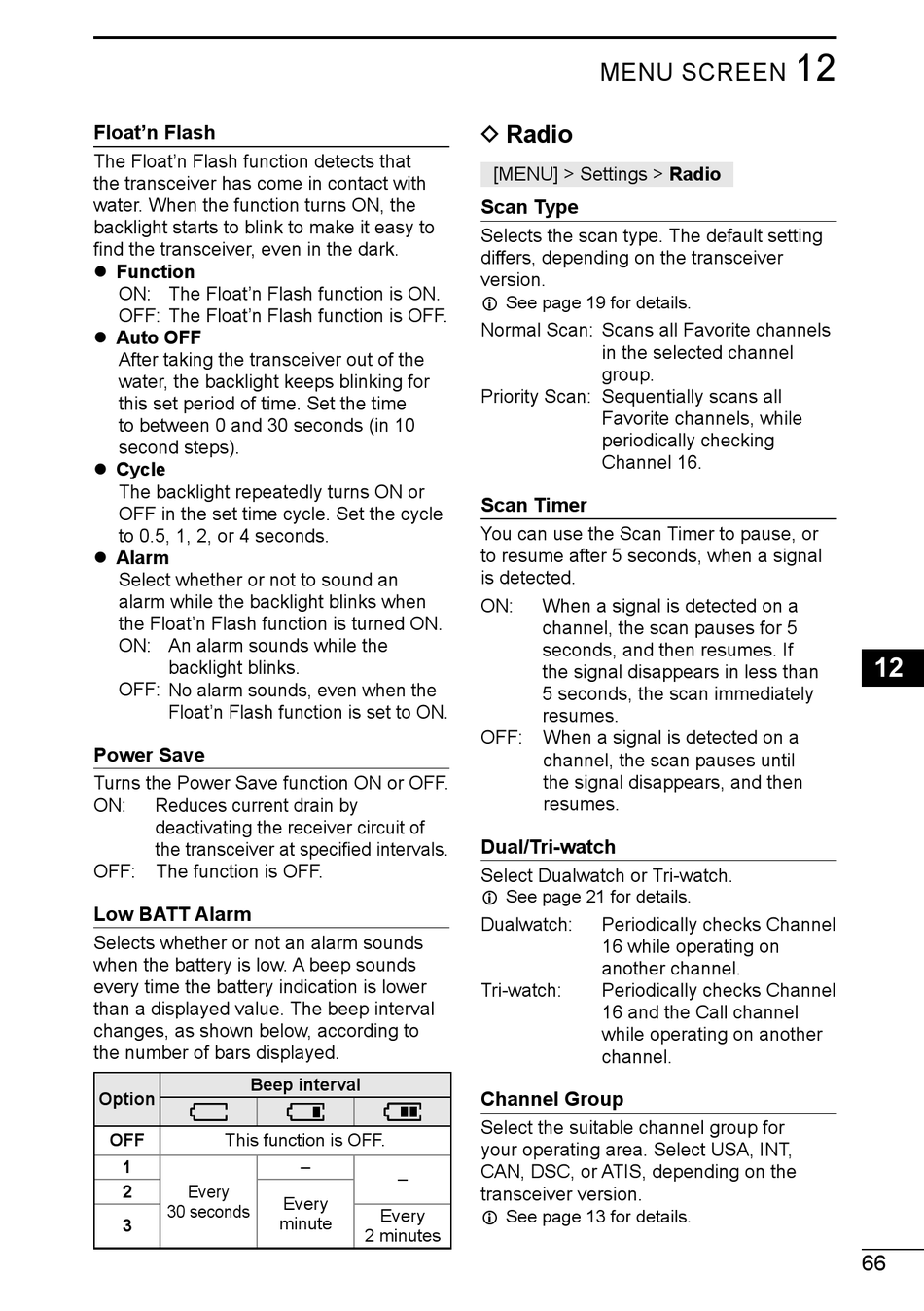

Float'n Flash
The Float'n Flash function detects that
the transceiver has come in contact with
water. When the function turns ON, the
backlight starts to blink to make it easy to
find the transceiver, even in the dark.
z Function
ON: The Float'n Flash function is ON.
OFF: The Float'n Flash function is OFF.
z Auto OFF
After taking the transceiver out of the
water, the backlight keeps blinking for
this set period of time. Set the time
to between 0 and 30 seconds (in 10
second steps).
z Cycle
The backlight repeatedly turns ON or
OFF in the set time cycle. Set the cycle
to 0.5, 1, 2, or 4 seconds.
z Alarm
Select whether or not to sound an
alarm while the backlight blinks when
the Float'n Flash function is turned ON.
ON: An alarm sounds while the
backlight blinks.
OFF: No alarm sounds, even when the
Float'n Flash function is set to ON.
Power Save
Turns the Power Save function ON or OFF.
ON:
Reduces current drain by
deactivating the receiver circuit of
the transceiver at specified intervals.
OFF:
The function is OFF.
Low BATT Alarm
Selects whether or not an alarm sounds
when the battery is low. A beep sounds
every time the battery indication is lower
than a displayed value. The beep interval
changes, as shown below, according to
the number of bars displayed.
Beep interval
Option
OFF
This function is OFF.
1
2
Every
30 seconds
3
–
–
Every
Every
minute
2 minutes
MENU SCREEN
D Radio
[MENU] > Settings > Radio
Scan Type
Selects the scan type. The default setting
differs, depending on the transceiver
version.
L See page 19 for details.
Normal Scan: Scans all Favorite channels
in the selected channel
group.
Priority Scan: Sequentially scans all
Favorite channels, while
periodically checking
Channel 16.
Scan Timer
You can use the Scan Timer to pause, or
to resume after 5 seconds, when a signal
is detected.
ON:
When a signal is detected on a
channel, the scan pauses for 5
seconds, and then resumes. If
the signal disappears in less than
5 seconds, the scan immediately
resumes.
OFF:
When a signal is detected on a
channel, the scan pauses until
the signal disappears, and then
resumes.
Dual/Tri-watch
Select Dualwatch or Tri-watch.
L See page 21 for details.
Dualwatch:
Periodically checks Channel
16 while operating on
another channel.
Tri-watch:
Periodically checks Channel
16 and the Call channel
while operating on another
channel.
Channel Group
Select the suitable channel group for
your operating area. Select USA, INT,
CAN, DSC, or ATIS, depending on the
transceiver version.
L See page 13 for details.
12
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
66
