2

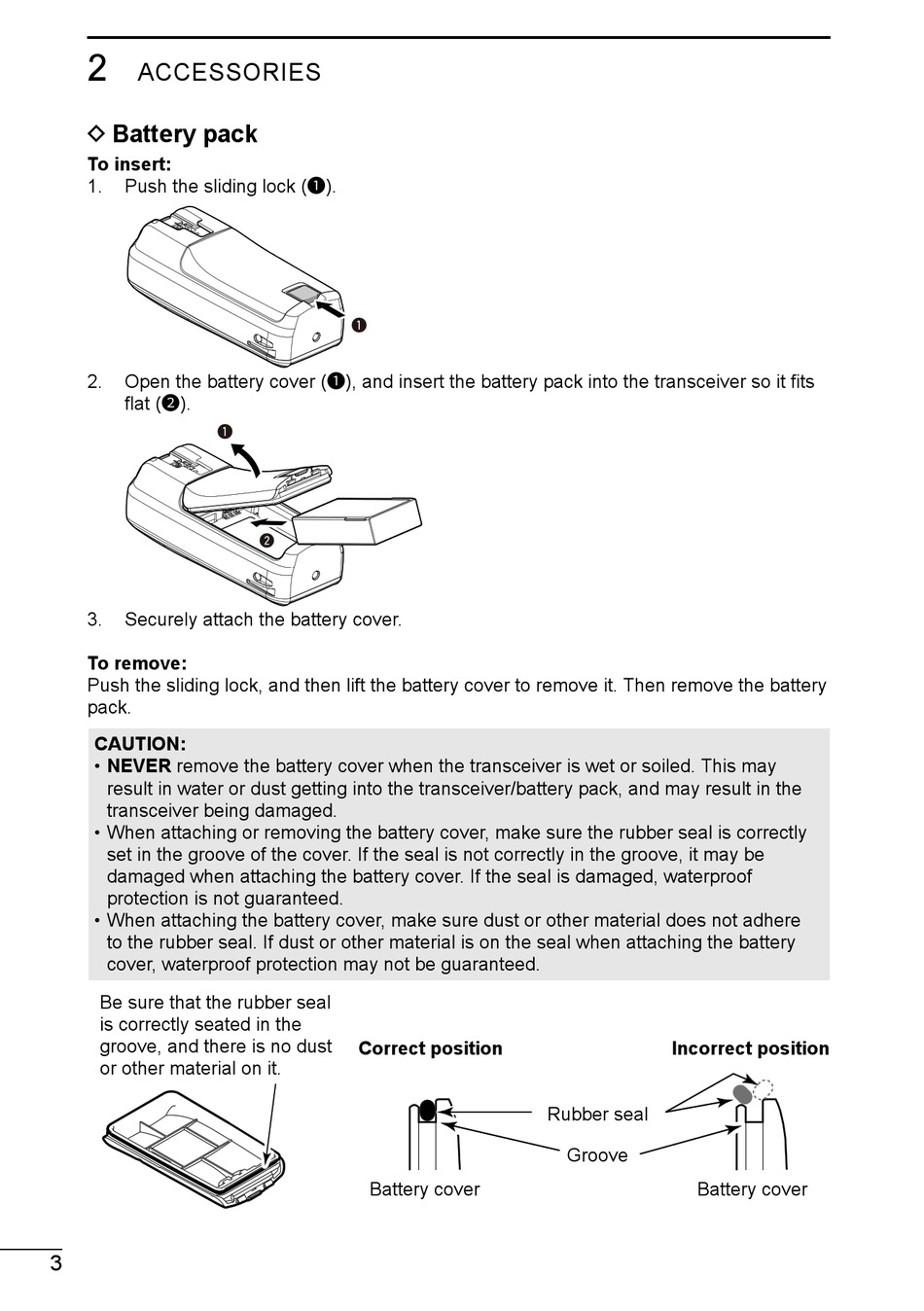

ACCESSORIES
D Battery pack
To insert:
1.
Push the sliding lock (1).
2.
Open the battery cover (1), and insert the battery pack into the transceiver so it fits
flat (2).
3.
Securely attach the battery cover.
To remove:
Push the sliding lock, and then lift the battery cover to remove it. Then remove the battery
pack.
CAUTION:
• NEVER remove the battery cover when the transceiver is wet or soiled. This may
result in water or dust getting into the transceiver/battery pack, and may result in the
transceiver being damaged.
• When attaching or removing the battery cover, make sure the rubber seal is correctly
set in the groove of the cover. If the seal is not correctly in the groove, it may be
damaged when attaching the battery cover. If the seal is damaged, waterproof
protection is not guaranteed.
• When attaching the battery cover, make sure dust or other material does not adhere
to the rubber seal. If dust or other material is on the seal when attaching the battery
cover, waterproof protection may not be guaranteed.
Be sure that the rubber seal
is correctly seated in the
groove, and there is no dust
or other material on it.
3
Correct position
Battery cover
Incorrect position
Rubber seal
Groove
Battery cover
