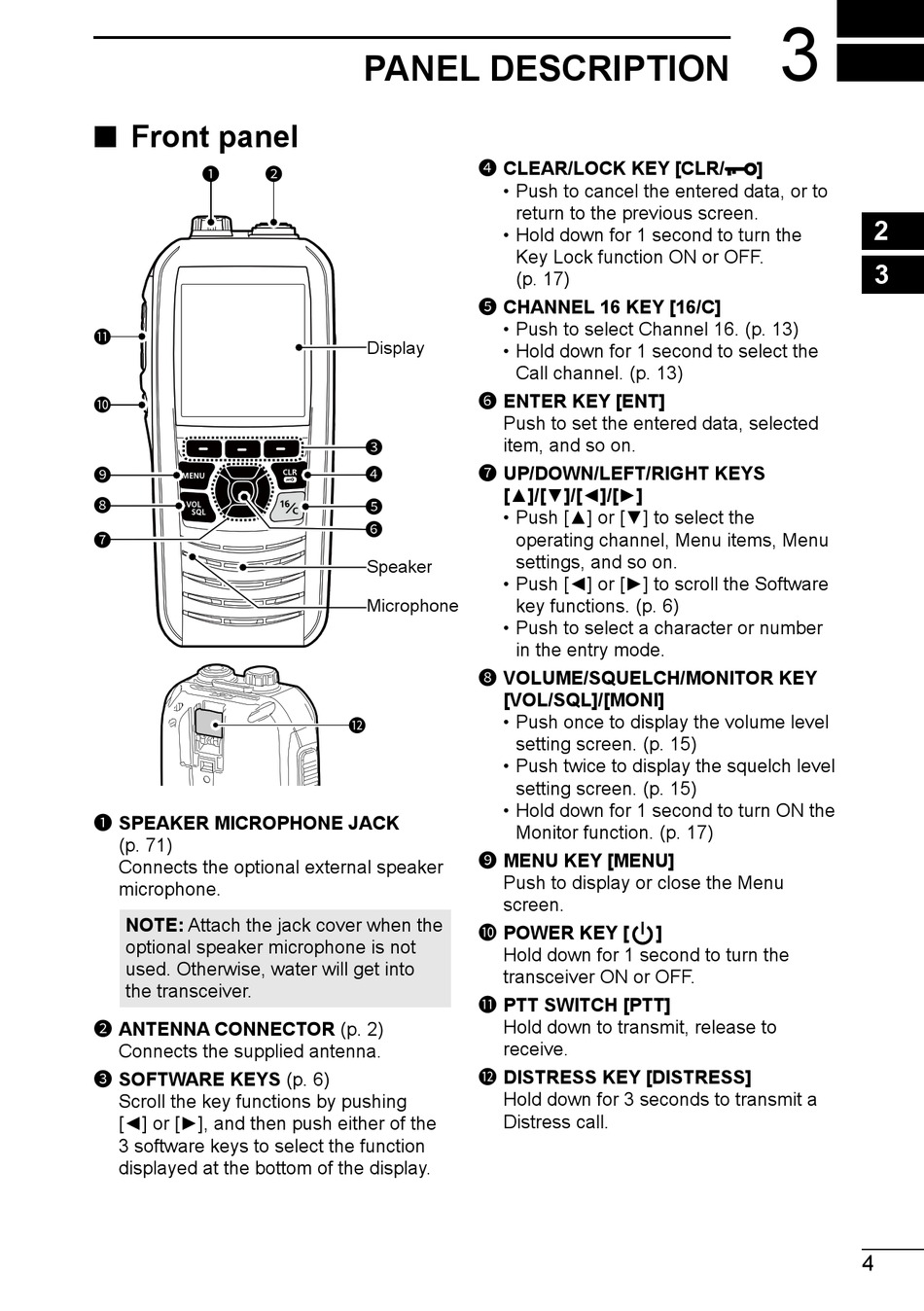

■ Front panel
1
2
11
10
9
8
7
1 SPEAKER MICROPHONE JACK
(p. 71)
Connects the optional external speaker
microphone.
NOTE: Attach the jack cover when the
optional speaker microphone is not
used. Otherwise, water will get into
the transceiver.
2 ANTENNA CONNECTOR (p. 2)
Connects the supplied antenna.
3 SOFTWARE KEYS (p. 6)
Scroll the key functions by pushing
[◄] or [►], and then push either of the
3 software keys to select the function
displayed at the bottom of the display.
PANEL DESCRIPTION
4 CLEAR/LOCK KEY [CLR/
• Push to cancel the entered data, or to
return to the previous screen.
• Hold down for 1 second to turn the
Key Lock function ON or OFF.
(p. 17)
5 CHANNEL 16 KEY [16/C]
• Push to select Channel 16. (p. 13)
Display
• Hold down for 1 second to select the
Call channel. (p. 13)
6 ENTER KEY [ENT]
Push to set the entered data, selected
item, and so on.
3
7 UP/DOWN/LEFT/RIGHT KEYS
4
[▲]/[▼]/[◄]/[►]
5
• Push [▲] or [▼] to select the
6
operating channel, Menu items, Menu
settings, and so on.
Speaker
• Push [◄] or [►] to scroll the Software
key functions. (p. 6)
Microphone
• Push to select a character or number
in the entry mode.
8 VOLUME/SQUELCH/MONITOR KEY
[VOL/SQL]/[MONI]
• Push once to display the volume level
12
setting screen. (p. 15)
• Push twice to display the squelch level
setting screen. (p. 15)
• Hold down for 1 second to turn ON the
Monitor function. (p. 17)
9 MENU KEY [MENU]
Push to display or close the Menu
screen.
10 POWER KEY [
Hold down for 1 second to turn the
transceiver ON or OFF.
11 PTT SWITCH [PTT]
Hold down to transmit, release to
receive.
12 DISTRESS KEY [DISTRESS]
Hold down for 3 seconds to transmit a
Distress call.
