12

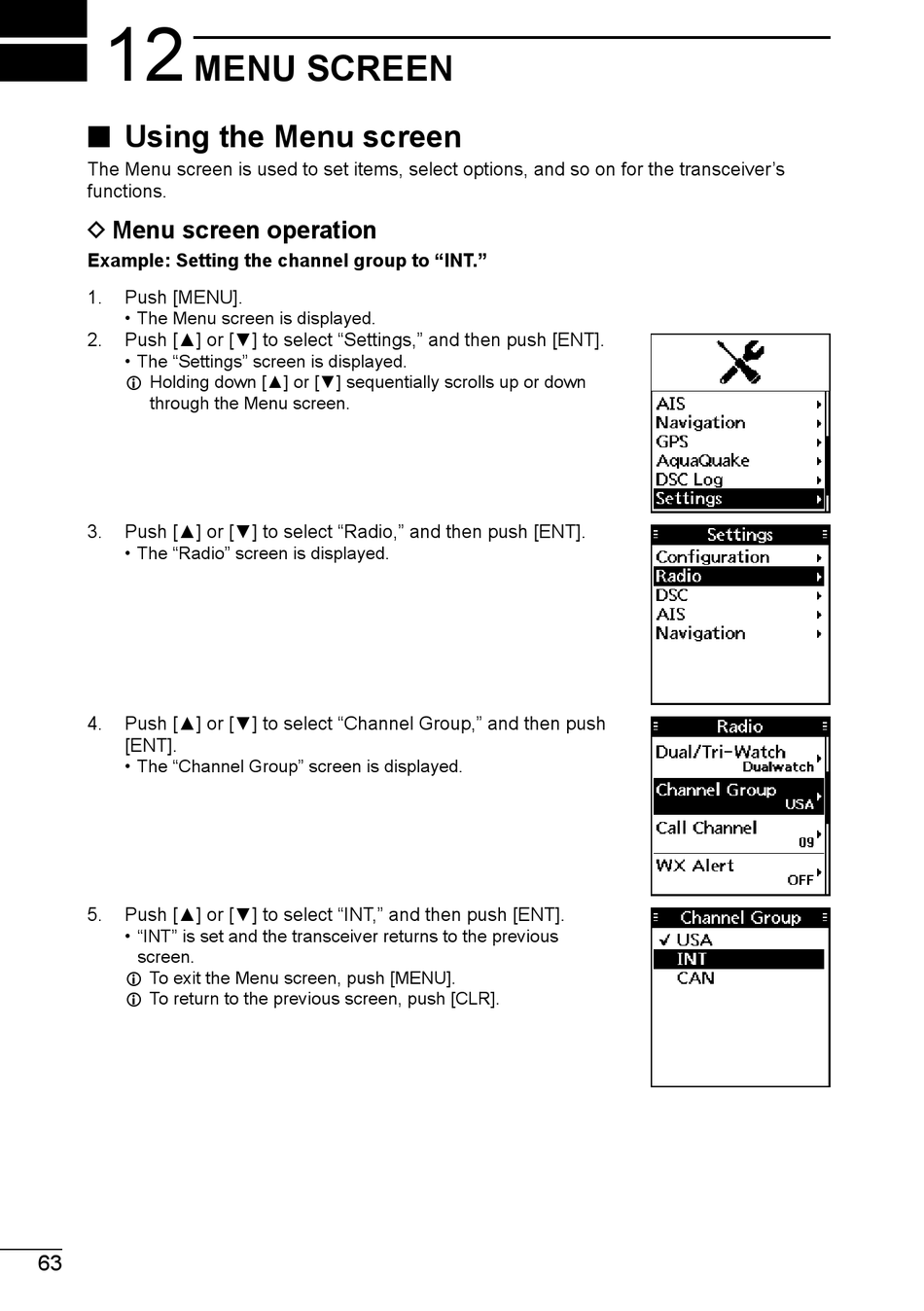

MENU SCREEN
■ Using the Menu screen
The Menu screen is used to set items, select options, and so on for the transceiver's
functions.
D Menu screen operation
Example: Setting the channel group to "INT."
1.
Push [MENU].
• The Menu screen is displayed.
2.
Push [▲] or [▼] to select "Settings," and then push [ENT].
• The "Settings" screen is displayed.
L Holding down [▲] or [▼] sequentially scrolls up or down
through the Menu screen.
3.
Push [▲] or [▼] to select "Radio," and then push [ENT].
• The "Radio" screen is displayed.
4.
Push [▲] or [▼] to select "Channel Group," and then push
[ENT].
• The "Channel Group" screen is displayed.
5.
Push [▲] or [▼] to select "INT," and then push [ENT].
• "INT" is set and the transceiver returns to the previous
screen.
L To exit the Menu screen, push [MENU].
L To return to the previous screen, push [CLR].
63
