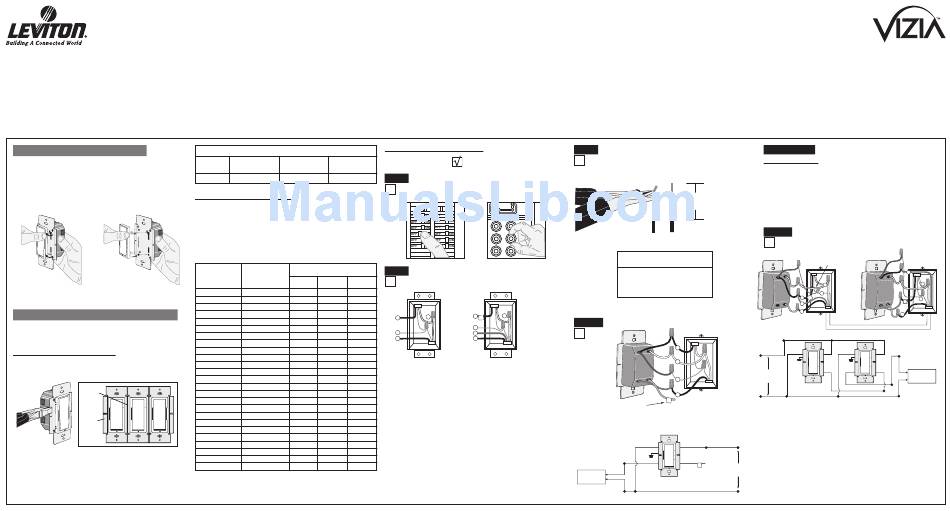

Leviton VZX12-7L Installation Instructions

DI-000-VZX12-02C
WARNINGS AND CAUTIONS :
• To be installed and/or used in accordance with appropriate electrical codes and regulations.
• If you are unsure about any part of these instructions, consult a qualified electrician.
• To avoid overheating and possible damage to this device and other equipment, use only with the appropriate Advance Transformer 277V Mark 10™ Powerline electronic ballasts for
controlling the specific fluorescent lamps.
• When retrofitting Mark 10™ Powerline dimming ballasts into fixtures that originally had Instant Start ballasts, the sockets MUST be replaced with Rapid Start sockets to allow proper
dimmer operation and prevent damage to the dimmer ballast. Refer to the instructions provided with the ballast.
• Vizia™ dimmers are not compatible with standard 3-way or 4-way switches. They must be used with compatible Vizia™ remotes for multi-location dimming.
• Use only one (1) Vizia™ dimmer in a multi-location circuit with up to 9 coordinating remotes without LEDs or up to 4 matching remotes with LEDs. The remote(s) will turn the light on
at the brightness level selected at the dimmer.
Tools needed to install your Dimmer:
Slotted/Phillips Screwdriver Electrical Tape
Pliers Pencil
Cutters Ruler
Changing the color of your Dimmer:
Your Dimmer includes three color options. The Dimmer ships with the
White frame attached. To change color of frame, proceed as follows:
Push in side at line up tabs and
tab to release press in side to attach
Installing Dimmer by itself or with other devices:
If installing Dimmer in a single device application, proceed with the
INSTAllING YOUR DIMMER section. If installing Dimmer in a multi-
device application, proceed as follows:
MUlTI-DEVICE APPlICATION
In multi-dimmer installations, the side sections of the mounting
strap may require removal. Use pliers to carefully bend side
sections back and forth until they break off.
Remove
all inner
side
sections
Do not
remove
outer
side
Bend back and
sections
forth to remove
side section
Typically, removal of the side sections in multi-dimmer
installations requires a reduction of the dimmer's capacity.
However, there is no reduction necessary for this device.
Refer to the chart for maximum load per dimmer.
Single Pole (One location) or 3-Way (Multi-location)
MAXIMUM lOAD PER DIMMER FOR MUlTI-DEVICE
More than
Cat. No. Single Two Devices
2 Devices
VZX12 1200VA (4.3A) 1200VA (4.3A) 1200VA (4.3A)
MAXIMUM BUlB WATTAGE
Mark 10™ Powerline dimmers are rated in Volt-Amps (VA). The maximum
bulb wattage is determined by the efficiency of the Mark 10™ Powerline
ballast. The following table shows the maximum number of ballasts that
can be connected to a single dimmer for different Mark 10™ Powerline
ballasts. Also note that the table shows maximum ballasts for multi-gang
installations.
Cat. No. VZX12-7, 277V, For use with Advance Transformer
277V Mark 10 TM Powerline Electronic Ballasts
Max. # Ballasts/Dimmer for
Advance
Multi-gang
Mark 10 TM
lamp
Powerline
Single Two More than
Part No.
Gang Ganged 2 Gang
VEZ-1T32 CFM42W/GX24Q 39 39 39
VEZ-2Q26 CFM26W/GX24Q 20 20 20
VEZ-1T32 CFM26W/GX24Q 30 30 30
VEZ-1T42 CFM32W/GX24Q 24 24 24
VEZ-1Q18-M2-BS CFM18W/G24Q 54 54 54
VEZ-1Q18-M2-LD CFQ18W/G24Q 54 54 54
VEZ-2Q18-M2-BS CFQ18W/G24Q 27 27 27
VEZ-2Q18-M2-LD CFQ18W/G24Q 27 27 27
VEZ-1T32 CFQ26W/G24Q 39 39 39
VEZ-1T42-M2-BS CFQ26W/G24Q 39 39 39
VEZ-1T42-M2-LD CFQ26W/G24Q 39 39 39
VEZ-2Q26 CFQ26W/G24Q 20 20 20
VEZ-2Q26-M2-BS CFQ26W/G24Q 20 20 20
VEZ-2Q26-M2-LD CFQ26W/G24Q 20 20 20
VEZ-1Q18-M2-BS CFTR18W/GX24Q 54 54 54
VEZ-1Q18-M2-LD CFTR18W/GX24Q 54 54 54
VEZ-2Q18-M2-BS CFTR18W/GX24Q 27 27 27
VEZ-2Q18-M2-LD CFTR18W/GX24Q 27 27 27
VEZ-1T42-M2-BS CFTR26W/GX24Q 39 39 39
VEZ-1T42-M2-LD CFTR26W/GX24Q 39 39 39
VEZ-2Q26-M2-BS CFTR26W/GX24Q 20 20 20
VEZ-2Q26-M2-LD CFTR26W/GX24Q 20 20 20
VEZ-1T42-M2-BS CFTR32W/GX24Q 30 30 30
VEZ-1T42-M2-LD CFTR32W/GX24Q 30 30 30
VEZ-2T42-M3-BS CFTR32W/GX24Q 15 15 15
Fluorescent Dimmer
Cat. No. VZX12-7L (Lighted)
1200VA-277VAC, 60Hz
For use with Mark 10 TM Powerline dimmable ballasts
INSTAllATION INSTRUCTIONS
WARNINGS AND CAUTIONS
• Lamps must be burned in at full intensity for 100 hours prior to dimming for proper dimming performance.
• For new installations, wire a test switch before installing dimmer.
• Total minimum load must exceed 40W.
• Dimmer may feel warm to the touch during normal operation.
• Recommended minimum wall box depth is 2-1/2".
• Maximum wire length from dimmer to all installed remotes cannot exceed 300 ft (90 m).
• Disconnect power at circuit breaker or fuse when servicing, installing or removing fixture.
• Use this device only with copper or copper clad wire. With aluminum wire use only devices marked CO/ALR or CU/AL.
INSTAllING YOUR DIMMER
NOTE: Use check boxes when Steps are completed.
WARNING:
Step 1 TO AVOID FIRE SHOCK OR DEATH; TURN
OFF POWER at circuit breaker or fuse and test that power
is off before wiring!
Identifying your wiring application (most common):
Step 2
NOTE: If the wiring in your wall box does not resemble any
of these configurations, consult a qualified electrician.
1 2
2
1
3
3
4
4 5
Single Pole 3-Way
1. Line (Hot) 1. Line or Load (see important
2. Neutral instruction below)
3. Ground 2. Neutral
4. Load 3. Ground
4. First Traveler – note color
5. Second Traveler – note color.
NOTE: For matching remote
w/LEDs installation, the
First Traveler becomes Line Hot.
IMPORTANT : For 3-Way applications, note that one of the screw
terminals from the old switch being removed will usually be a different
color (Black) or labeled Common. Tag that wire with electrical tape and
identify as the common (Line or Load) in both the dimmer wall box and
remote wall box.
:
Preparing and connecting wires:
Step 3
Pull off pre-cut insulation from dimmer leads. Make sure that
the ends of the wires from the wall box are straight (cut if
necessary). Remove insulation from each wire in the wall
box as shown:
5/8"
Strip Gage
(1.6 cm)
(measure bare
wire here)
Cut
(if necessary)
For non-standard wiring applications, refer
to Wire Nut and Connector Size Chart
WIRE CONNECTOR / # OF COND.
COMBINATION CHART
1 - #12 w/ 1 to 3 #14, #16 or #18
2 - #12 w/ 1 or 2 #16 or #18
1 - #14 w/ 1 to 4 #16 or #18
2 - #14 w/ 1 to 3 #16 or #18
• For Single-Pole Application, go to Step 4a.
• For 3-Way Matching Remote (with lEDs) Application, go to Step 4b.
Single Pole Wiring Application:
Step 4a
Black
1
White
2
Green
277VAC, 60Hz
3
Red
Yellow/ 4
Red
Insulating label:
This wire is used in 3-way installations only.
For single pole installations, do not remove
this insulating label.
Dimmer
White Black Hot (Black)
Green
Ground
Red Yellow/Red
Ballast
Line
Insulating
Black
277VAC, 60Hz
Primary Label
Side
White
Neutral (White)
Step 4a cont'd
WIRING DIMMER:
Connect wires per WIRING DIAGRAM as follows:
• Green or bare copper wire in wall box to Green dimmer lead.
• Line Hot wall box wire to Black dimmer lead.
• Load wall box wire to Red dimmer lead.
• Line Neutral wall box wire to White dimmer lead.
• Yellow/Red wire should have Red insulation label affixed.
NOTE: If insulating label is not affixed to Yellow/Red dimmer lead,
use electrical tape to cover.
• Proceed to Step 5.
3-Way Wiring with Matching Remote
Step 4b
(w/lEDs) Application:
Matching Remote Dimmer
Additional Green
Neutral Wire
Black
4
2
2
White
3
1
3
1
Red
4
5
5
Yellow/Red
Matching Remote (with LEDs) Dimmer
Hot (Black)
White White
Black Black
Green Green
Black
Groun d Groun d
Ballast
Yellow/ Yellow/
Red Red Red
Line Primary
Side
White
Neutral (White)
NOTE: The dimmer must be installed in a wall box that has a Load
connection. The matching remote must be installed in a wall box
with a Line Hot connection and a Neutral connection. A Neutral wire
to the matching remote needs to be added as shown.
If you are unsure about any part of these instructions, consult a
qualified electrician.
NOTE: Maximum wire length from dimmer to all installed remotes
cannot exceed 300 ft (90 m).
