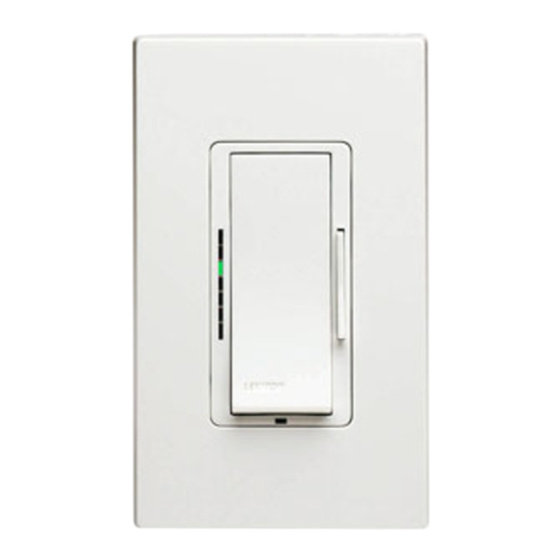

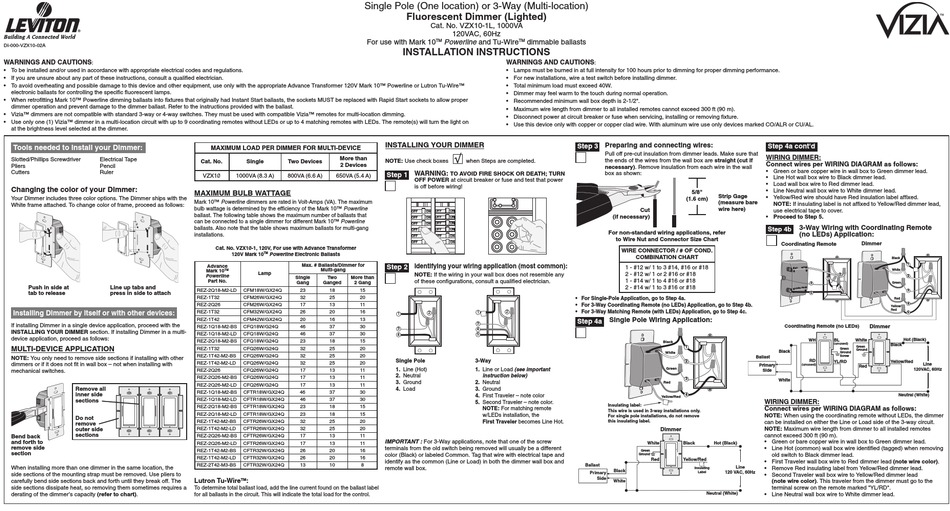

Leviton VZX10-1L Installation Instructions

DI-000-VZX10-02A
WARNINGS AND CAUTIONS
:
• To be installed and/or used in accordance with appropriate electrical codes and regulations.
• If you are unsure about any part of these instructions, consult a qualified electrician.
• To avoid overheating and possible damage to this device and other equipment, use only with the appropriate Advance Transformer 120V Mark 10™ Powerline or Lutron Tu-Wire™
electronic ballasts for controlling the specific fluorescent lamps.
• When retrofitting Mark 10™ Powerline dimming ballasts into fixtures that originally had Instant Start ballasts, the sockets MUST be replaced with Rapid Start sockets to allow proper
dimmer operation and prevent damage to the dimmer ballast. Refer to the instructions provided with the ballast.
• Vizia™ dimmers are not compatible with standard 3-way or 4-way switches. They must be used with compatible Vizia™ remotes for multi-location dimming.
• Use only one (1) Vizia™ dimmer in a multi-location circuit with up to 9 coordinating remotes without LEDs or up to 4 matching remotes with LEDs. The remote(s) will turn the light on
at the brightness level selected at the dimmer.
Tools needed to install your Dimmer:
Slotted/Phillips Screwdriver Electrical Tape
Pliers Pencil
Cutters Ruler
Changing the color of your Dimmer:
Your Dimmer includes three color options. The Dimmer ships with the
White frame attached. To change color of frame, proceed as follows:
Push in side at Line up tabs and
tab to release press in side to attach
Installing Dimmer by itself or with other devices:
If installing Dimmer in a single device application, proceed with the
INSTALLING YOUR DIMMER section. If installing Dimmer in a multi-
device application, proceed as follows:
MULTI-DEVICE APPLICATION
NOTE: You only need to remove side sections if installing with other
dimmers or if it does not fit in wall box – not when installing with
mechanical switches.
Remove all
inner side
sections
Do not
remove
outer side
sections
Bend back
and forth to
remove side
section
When installing more than one dimmer in the same location, the
side sections of the mounting strap must be removed. Use pliers to
carefully bend side sections back and forth until they break off. The
side sections dissipate heat, so removing them sometimes requires a
derating of the dimmer's capacity (refer to chart).
Single Pole (One location) or 3-Way (Multi-location)
For use with Mark 10
MAXIMUM LOAD PER DIMMER FOR MULTI-DEVICE
More than
Cat. No. Single Two Devices
2 Devices
VZX1Ø 1000VA (8.3 A) 800VA (6.6 A) 650VA (5.4 A)
MAXIMUM BULB WATTAGE
Mark 10™ Powerline dimmers are rated in Volt-Amps (VA). The maximum
bulb wattage is determined by the efficiency of the Mark 10™ Powerline
ballast. The following table shows the maximum number of ballasts that
can be connected to a single dimmer for different Mark 10™ Powerline
ballasts. Also note that the table shows maximum ballasts for multi-gang
installations.
Cat. No. VZX1Ø-1, 120V, For use with Advance Transformer
120V Mark 10 TM Powerline Electronic Ballasts
Max. # Ballasts/Dimmer for
Advance
Multi-gang
Mark 10 TM
Lamp
Powerline
Single Two More than
Part No.
Gang Ganged 2 Gang
REZ-2Q18-M2-LD CFM18W/GX24Q 23 18 15
REZ-1T32 CFM26W/GX24Q 32 25 20
REZ-2Q26 CFM26W/GX24Q 17 13 11
REZ-1T32 CFM32W/GX24Q 26 20 16
REZ-1T42 CFM42W/GX24Q 20 16 13
REZ-1Q18-M2-BS CFQ18W/G24Q 46 37 30
REZ-1Q18-M2-LD CFQ18W/G24Q 46 37 30
REZ-2Q18-M2-BS CFQ18W/G24Q 23 18 15
REZ-1T32 CFQ26W/G24Q 32 25 20
REZ-1T42-M2-BS CFQ26W/G24Q 32 25 20
REZ-1T42-M2-LD CFQ26W/G24Q 32 25 20
REZ-2Q26 CFQ26W/G24Q 17 13 11
REZ-2Q26-M2-BS CFQ26W/G24Q 17 13 11
REZ-2Q26-M2-LD CFQ26W/G24Q 17 13 11
REZ-1Q18-M2-BS CFTR18W/GX24Q 46 37 30
REZ-1Q18-M2-LD CFTR18W/GX24Q 46 37 30
REZ-2Q18-M2-BS CFTR18W/GX24Q 23 18 15
REZ-2Q18-M2-LD CFTR18W/GX24Q 23 18 15
REZ-1T42-M2-BS CFTR26W/GX24Q 32 25 20
REZ-1T42-M2-LD CFTR26W/GX24Q 32 25 20
REZ-2Q26-M2-BS CFTR26W/GX24Q 17 13 11
REZ-2Q26-M2-LD CFTR26W/GX24Q 17 13 11
REZ-1T42-M2-BS CFTR32W/GX24Q 26 20 16
REZ-1T42-M2-LD CFTR32W/GX24Q 26 20 16
REZ-2T42-M3-BS CFTR32W/GX24Q 13 10 8
Lutron Tu-Wire TM :
To determine total ballast load, add the line current found on the ballast label
for all ballasts in the circuit. This will indicate the total load for the control.
Fluorescent Dimmer (Lighted)
Cat. No. VZX10-1L, 1000VA
120VAC, 60Hz
TM Powerline and Tu-Wire TM dimmable ballasts
INSTALLATION INSTRUCTIONS
WARNINGS AND CAUTIONS
• Lamps must be burned in at full intensity for 100 hours prior to dimming for proper dimming performance.
• For new installations, wire a test switch before installing dimmer.
• Total minimum load must exceed 40W.
• Dimmer may feel warm to the touch during normal operation.
• Recommended minimum wall box depth is 2-1/2".
• Maximum wire length from dimmer to all installed remotes cannot exceed 300 ft (90 m).
• Disconnect power at circuit breaker or fuse when servicing, installing or removing fixture.
• Use this device only with copper or copper clad wire. With aluminum wire use only devices marked CO/ALR or CU/AL.
INSTALLING YOUR DIMMER
NOTE: Use check boxes when Steps are completed.
WARNING:
Step 1 TO AVOID FIRE SHOCK OR DEATH; TURN
OFF POWER at circuit breaker or fuse and test that power
is off before wiring!
��� �� ��� ��
��� �� ��� ��
��� �� ��� ��
��� �� ��� ��
��� �� ��� ��
��� �� ��� ��
Identifying your wiring application (most common):
Step 2
NOTE: If the wiring in your wall box does not resemble any
of these configurations, consult a qualified electrician.
1 2
2
1
3
3 4
4 5
Single Pole 3-Way
1. Line (Hot) 1. Line or Load (see important
2. Neutral instruction below)
3. Ground 2. Neutral
4. Load 3. Ground
4. First Traveler – note color
5. Second Traveler – note color.
NOTE: For matching remote
w/LEDs installation, the
First Traveler becomes Line Hot.
IMPORTANT : For 3-Way applications, note that one of the screw
terminals from the old switch being removed will usually be a different
color (Black) or labeled Common. Tag that wire with electrical tape and
identify as the common (Line or Load) in both the dimmer wall box and
remote wall box.
:
Preparing and connecting wires:
Step 3
Pull off pre-cut insulation from dimmer leads. Make sure that
the ends of the wires from the wall box are straight (cut if
necessary). Remove insulation from each wire in the wall
box as shown:
5/8"
Strip Gage
(1.6 cm)
(measure bare
wire here)
Cut
(if necessary)
For non-standard wiring applications, refer
to Wire Nut and Connector Size Chart
WIRE CONNECTOR / # OF COND.
COMBINATION CHART
1 - #12 w/ 1 to 3 #14, #16 or #18
2 - #12 w/ 1 or 2 #16 or #18
1 - #14 w/ 1 to 4 #16 or #18
2 - #14 w/ 1 to 3 #16 or #18
• For Single-Pole Application, go to Step 4a.
• For 3-Way Coordinating Remote (no LEDs) Application, go to Step 4b.
• For 3-Way Matching Remote (with LEDs) Application, go to Step 4c.
Single Pole Wiring Application:
Step 4a
Black
1
White
Ballast
2
Green
3
Red
4
Yellow/Red
Insulating label:
This wire is used in 3-way installations only.
For single pole installations, do not remove
this insulating label.
Dimmer
White Black Hot (Black)
Green
Ground
Red Yellow/Red
Ballast
Line
Insulating
Black
120 VAC, 60Hz
Primary Label
Side
White
Neutral (White)
Step 4a cont'd
WIRING DIMMER:
Connect wires per WIRING DIAGRAM as follows:
• Green or bare copper wire in wall box to Green dimmer lead.
• Line Hot wall box wire to Black dimmer lead.
• Load wall box wire to Red dimmer lead.
• Line Neutral wall box wire to White dimmer lead.
• Yellow/Red wire should have Red insulation label affixed.
NOTE: If insulating label is not affixed to Yellow/Red dimmer lead,
use electrical tape to cover.
• Proceed to Step 5.
3-Way Wiring with Coordinating Remote
Step 4b
(no LEDs) Application:
Dimmer
Coordinating Remote
Black
1
White
2
2
1
3 Green
4
3
5
Red
4
Yellow/
Red
5
Coordinating Remote (no LEDs) Dimmer
WH BL White Hot (Black)
(unused)
Black
Green
Green
Ground
Black
Ground
Screw
RD YL/RD Yellow/Red
Line
Primary (unused)
Red
120VAC, 60Hz
Side
White
Neutral (White)
WIRING DIMMER:
Connect wires per WIRING DIAGRAM as follows:
NOTE: When using the coordinating remote without LEDs, the dimmer
can be installed on either the Line or Load side of the 3-way circuit.
NOTE: Maximum wire length from dimmer to all installed remotes
cannot exceed 300 ft (90 m).
• Green or bare copper wire in wall box to Green dimmer lead.
• Line Hot (common) wall box wire identified (tagged) when removing
old switch to Black dimmer lead.
• First Traveler wall box wire to Red dimmer lead (note wire color).
• Remove Red insulating label from Yellow/Red dimmer lead.
• Second Traveler wall box wire to Yellow/Red dimmer lead
(note wire color). This traveler from the dimmer must go to the
terminal screw on the remote marked "YL/RD".
• Line Neutral wall box wire to White dimmer lead.
