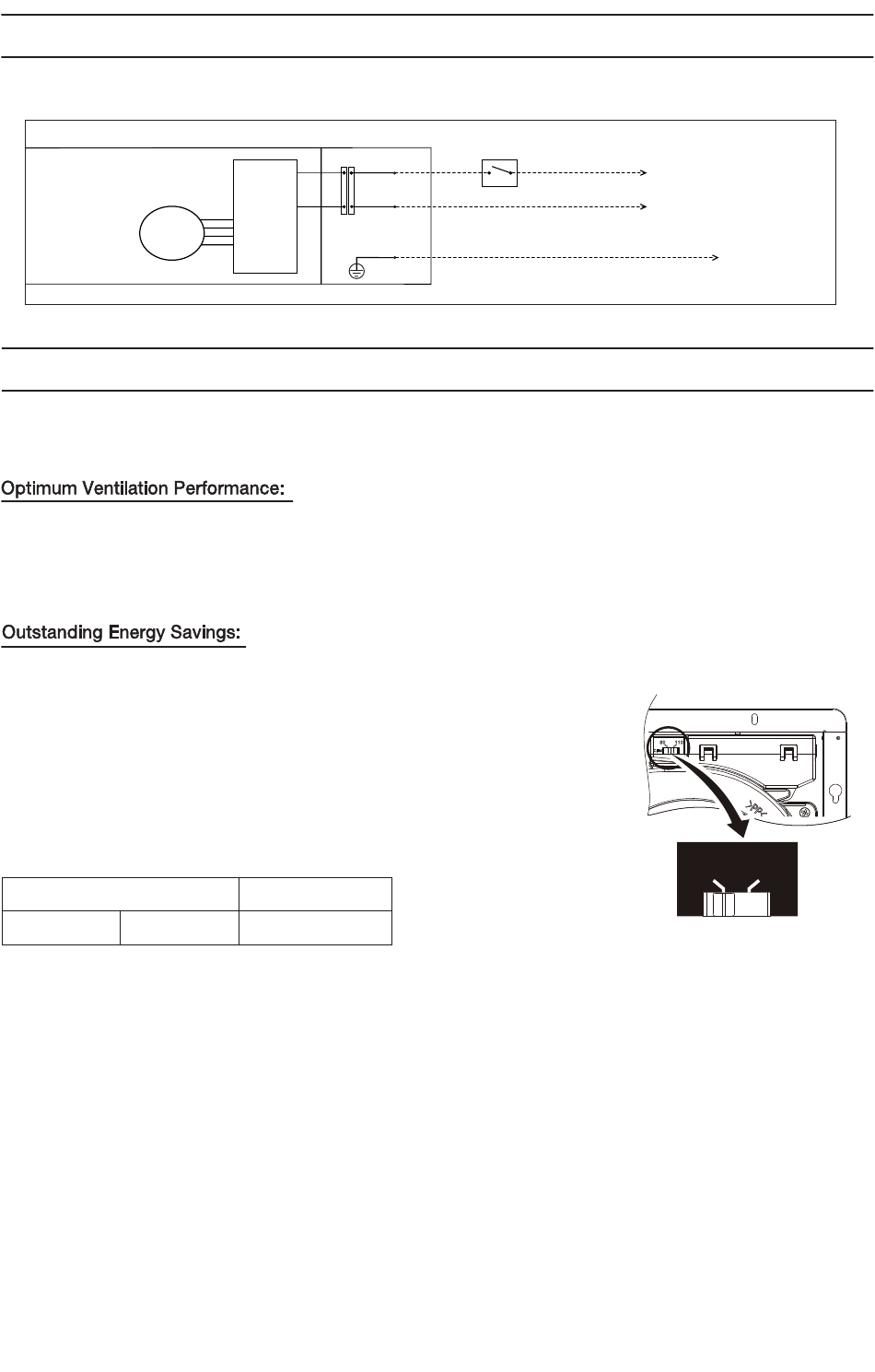

WIRING DIAGRAM
Fan body
Main control circuit
DC
motor
FEATURES
These products employ innovative, state-of-the-art technologies that provide a number of customizable unique
features that lead to improved indoor air quality. Please read this manual first in order to realize the benefits of this
customizable, modular fan.
Duct length, elbows and other factors increase static pressure which can hinder the performance of most ventilation
fans. These products utilize SmartFlow™ microchip technology that monitors the static pressure in the system and
speeds up or slows down the rpm of the fan depending upon the amount of resistance within the ducts. This feature
allows the fan to perform as rated and avoid potential installation issues.
These products are built using DC motor technology. The DC motor is 30% ~ 70% more energy efficient than the
minimum ENERGY STAR requirements.
Pick-A-Flow™ Feature:
This product comes with Pick-A-Flow™ speed options.
The Pick-A-Flow™ switch on the face of the product allows the option to
choose 80 or 110 CFM. This product can run continuously or intermittently,
depending upon the needs of the owner.
Air volume option (CFM)
80
Junction box
Main
control
circuit
Factory setting
110
80 CFM
Power switch
Black
White
Green
Live (Fan)
AC 120 V 60 Hz
Neutral
(Power supply)
(Ground wire)
CFM
80
Pick-A-Flow™ switch
110
5
