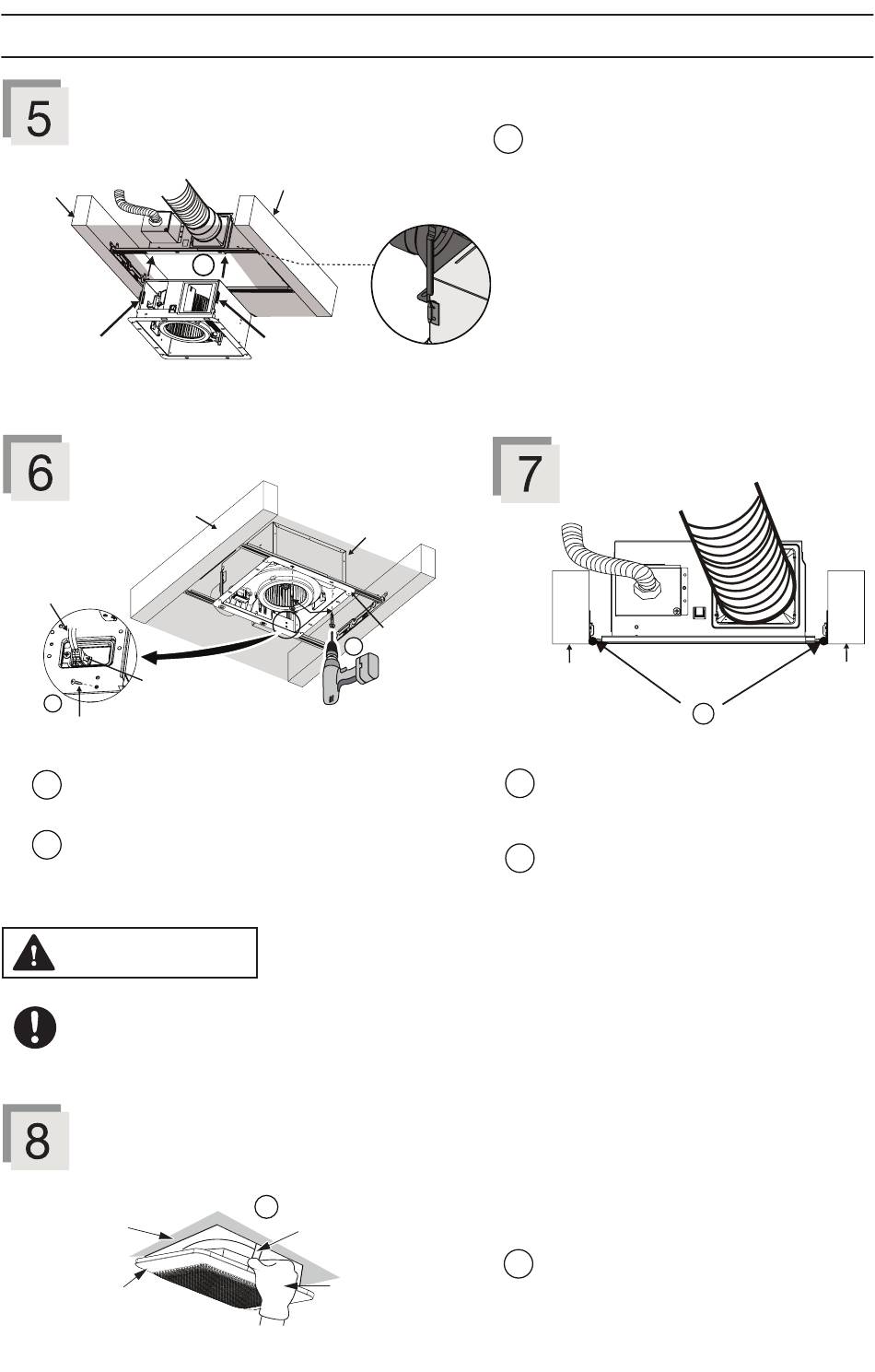

INSTALLATION (RETROFIT) (CONTINUED)
Insert fan body
Joist
Guide parts
Secure fan body
Joist
Plug
connector
Receptacle
2
Machine screw (M4X8)
1
Secure the fan body to Flex-Z Fast™ bracket
by using 2 self-drilling screws.
2
Plug connector into receptacle and secure fan
body to adaptor by using machine screw (M4X8).
CAUTION
Please take care when installing the machine screw (Step 6) to avoid cross threading and to ensure that the
screw does not strip or come in contact with the Flex-Z Fast™ bracket.
Install grille
Drywall
Grille
Joist
1
Guide parts
A
1
2 Self-drilling screws (fasten the
flange and Flex-Z Fast™ bracket
through the drywall)
1
Mounting spring
Gloves
1
Insert fan body and slide into adaptor assembly
using the guide parts until you hear a click from
the hook.
Drywall
Flange
1
2
1
Sealing
Joist
1
Once fan body is mounted and secure, fill gap
between flange and ceiling with caulk or other
sealant to prevent air leakage.
Adjust Pick-A-Flow™ switch. (Refer to
explanation under FEATURES). (Page 6)
Insert the mounting springs into the slot as
shown to mount grille to fan body.
Joist
8
