Spare Parts Manual
MX5100T for NHA
V01.00.01 (2018.09.14)
Copyrightⓒ Hyosung TNS Inc. 2018 All right reserved.

Advertisement

loading

Related Manuals for HYOSUNG MX5100T

Summary of Contents for HYOSUNG MX5100T

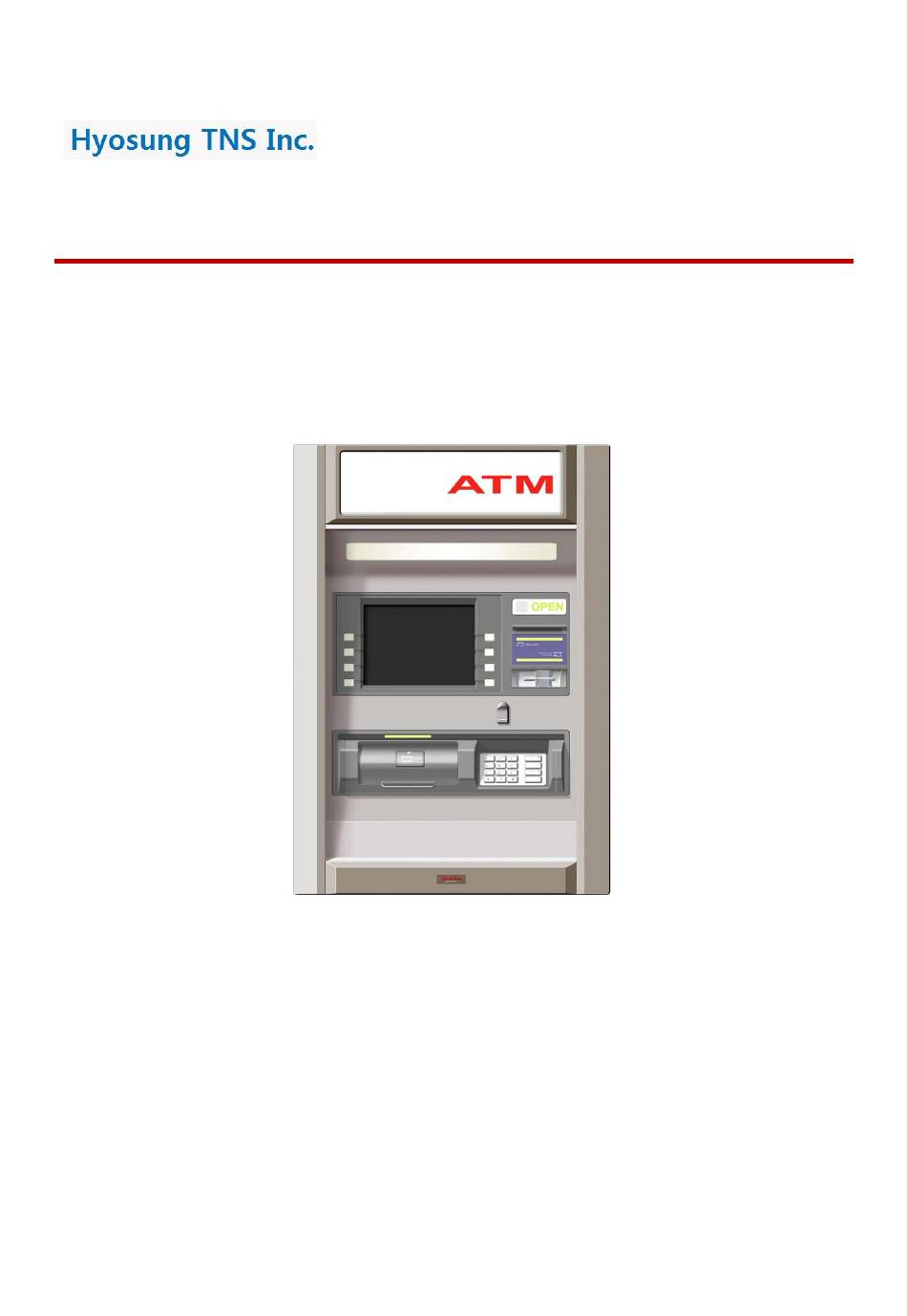

  • Page 1 Spare Parts Manual MX5100T for NHA V01.00.01 (2018.09.14) Copyrightⓒ Hyosung TNS Inc. 2018 All right reserved.
  • Page 2 MoniMax 5100T ⓒ Hyosung TNS Inc. All right reserved. The content of this specification is protected by copyright laws. Sep 14, 2018 2nd Release Copyrightⓒ Hyosung TNS Inc. 2018 All right reserved..
  • Page 3 Revision History of System Spare Parts List - MX5100T for NHA Version Date Description of Change Chapter V01.00.00 2010-08-18 New Publication V01.00.01 2018-02-28 Changed Main Board and manual form Copyrightⓒ Hyosung TNS Inc. 2018 All right reserved.
  • Page 4 Change History of Spare Parts Spare Parts List - MX5100T for NHA ITEM No of Ref. 1st Mass Production 2nd Mass Production Remark Copyrightⓒ Hyosung TNS Inc. 2018 All right reserved.

  • Page 5: Table Of Contents

    Chapter 2. Control Electronic (CE) Chapter 3. Cash Dispenser (4K) Chapter 4. Card Reader (MCU) Chapter 5. OPL & SPL Assembly Chapter 6. Receipt Printer (SPR) Chapter 7. Safety Body Chapter 8. Miscellaneous Copyrightⓒ Hyosung TNS Inc. 2018 All right reserved.
  • Page 6 TENSION ROLLER ASSY REPAIR ○ 1-14 S45353401 REPAIR CATCHER FOR LOCKING CST ○ 1-15 S21685201 EMITTING LIGHT SENSOR REPAIR ○ 1-16 S21685202 REPAIR DETECTING LIGHT SENSOR ○ 1-17 S44133901 BRACKET FOR SENSOR HOLDER REPAIR Copyrightⓒ Hyosung TNS Inc. 2018 All right reserved.
  • Page 7 REPAIR AD BOARD ○ S5611000166 TOUCH BOARD REPAIR ○ S5659000024 REPAIR TOUCH PANEL ○ S7020000012 FIELD RECEIPT PRINTER (K-SPR5) ○ S5677000013 THERMAL REPAIR ○ S72881301 REPAIR OUTLET ○ S56405701 STEP MOTOR REPAIR Copyrightⓒ Hyosung TNS Inc. 2018 All right reserved.
  • Page 8  It is a rate for Parts quantity when Customer operates 100 ATMs for one year. [A : 4% / B : 3% / C : 2% / D : 1.5% / E : 1%] Copyrightⓒ Hyosung TNS Inc. 2018 All right reserved.

  • Page 9: Chapter 1. Fascia Assembly

    Chapter 1. Fascia Assembly Copyrightⓒ Hyosung TNS Inc. 2018 All right reserved.
  • Page 10 PCBA FOR PNC BOARD ○ S72337001 ADA BOARD REPAIR ○ S7500000002 REPAIR VOICE BOARD ○ S7650000082 FLICKER BOARD REPAIR ○ S72341001 REPAIR TTW USER LAMP ○ S5611000347 NAMUGA FIRST CAMERA REPAIR 10 of 28 Copyrightⓒ Hyosung TNS Inc. 2018 All right reserved.

  • Page 11: Chapter 2. Control Electronic (Ce)

    Chapter 2. Control Electronics (CE) Copyrightⓒ Hyosung TNS Inc. 2018 All right reserved.
  • Page 12 ○ S7090000655 CE (H81 / 2GB) FIELD ○ S5743000088 FIELD PC (H81 / 2GB) ○ S5627000001 MODEM (US_ROBOTICS) REPAIR ○ S7650000035 REPAIR LED INDICATOR ○ S7650000135 REPAIR COM4 BOARD 12 of 28 Copyrightⓒ Hyosung TNS Inc. 2018 All right reserved.

  • Page 13: Chapter 3. Cash Dispenser (4K)

    Chapter 3. Cash Dispenser (4K) Copyrightⓒ Hyosung TNS Inc. 2018 All right reserved.
  • Page 14 Spare Parts Manual MoniMax 5100T TYPE Recommended Unit LEVEL Part No. Customer Description Category Cash ○ S7010000019 Cash Dispenser - WO STACK FIELD Dispenser ○ S7430005097 REPAIR FEED MODULE (4K) ○ S72323503 CONTROL BOARD FOR FEEDING REPAIR ○ S72842304 REPAIR GATE1 SOLENOID ○...
  • Page 15 MoniMax 5100T Spare Parts Manual 15 of 28 Copyrightⓒ HyosungTNS Inc. 2018 All right reserved.
  • Page 16 S43025001 REPAIR RUBBER PARTK OF PICK UP ROLLER ○ 1-33 S43028001 HANDLE FOR CASSETTE BOX REPAIR ○ 1-34 S44982001 REPAIR IDENTIFICATION TAB ○ 1-35 S44603301 IDENTIFICATION TAB SCREW REPAIR 16 of 28 Copyrightⓒ Hyosung TNS Inc. 2018 All right reserved.
  • Page 17 MoniMax 5100T Spare Parts Manual 17 of 28 Copyrightⓒ Hyosung TNS Inc. 2018 All right reserved.

  • Page 18: Chapter 4. Card Reader (Mcu)

    Chapter 4. Card Reader (MCU) Copyrightⓒ Hyosung TNS Inc. 2018 All right reserved.
  • Page 19 Spare Parts Manual MoniMax 5100T TYPE Recommended Unit LEVEL Part No. Customer Description Category ○ S7030000116 MCU ASSY (SANKYO) FIELD ○ S5645000037 FIELD MCU : DIP TYPE (SANKYO) 19 of 28 Copyrightⓒ Hyosung TNS Inc. 2018 All right reserved.

  • Page 20: Chapter 5. Opl & Spl Assembly

    Chapter 5. OPL & SPL Assembly Copyrightⓒ Hyosung TNS Inc. 2018 All right reserved.
  • Page 21 S4371000001 REPAIR RUBBER KEY ○ S7110000056 SPL 10.1 REPAIR ○ S5661000105 REPAIR LCD 10.1 ○ S5611000514 AD BOARD REPAIR ○ S5611000166 REPAIR TOUCH BOARD ○ S5659000024 TOUCH PANEL REPAIR 21 of 28 Copyrightⓒ Hyosung TNS Inc. 2018 All right reserved.
  • Page 22 MoniMax 5100T Spare Parts Manual 22 of 28 Copyrightⓒ Hyosung TNS Inc. 2018 All right reserved.

  • Page 23: Chapter 6. Receipt Printer (Spr)

    Chapter 6. Receipt Printer (SPR) Copyrightⓒ Hyosung TNS Inc. 2018 All right reserved.
  • Page 24 S72881301 OUTLET REPAIR ○ S56405701 REPAIR STEP MOTOR ○ S45424101 REPAIR GUIDE UPPER ○ S7680000001 PCBA : SPR REPAIR ○ S3250000019 REPAIR END SENSOR CABLE ○ S21685601 SENSOR REPAIR 24 of 28 Copyrightⓒ Hyosung TNS Inc. 2018 All right reserved.

  • Page 25: Chapter 7. Safety Body

    Chapter 7. Safety Body Copyrightⓒ Hyosung TNS Inc. 2018 All right reserved.
  • Page 26 Part No. Customer Description Category SAFE BODY ○ S45110106 2 SET & 2 KEYS REPAIR ○ S45602703 REPAIR HANDLE ○ S4901000067 E-LOCK BODY REPAIR ○ S4901000068 REPAIR E-LOCK PAD 26 of 28 Copyrightⓒ Hyosung TNS Inc. 2018 All right reserved.
  • Page 27 Chaper 8. Miscellaneous Copyrightⓒ Hyosung TNS Inc. 2018 All right reserved.

  • Page 28: Chapter 8. Miscellaneous

    POWER CORD FIELD ○ S3240000001 REPAIR TWO DOOR SENSOR CABLE ○ S5621000037 Power Supply (HPS250-GTTW) FIELD ○ S7130000041 FIELD Battery ○ S7170000080 REPAIR COLLAR ○ S56790601 Receipt paper FIELD 28 of 28 Copyrightⓒ Hyosung TNS Inc. 2018 All right reserved.
