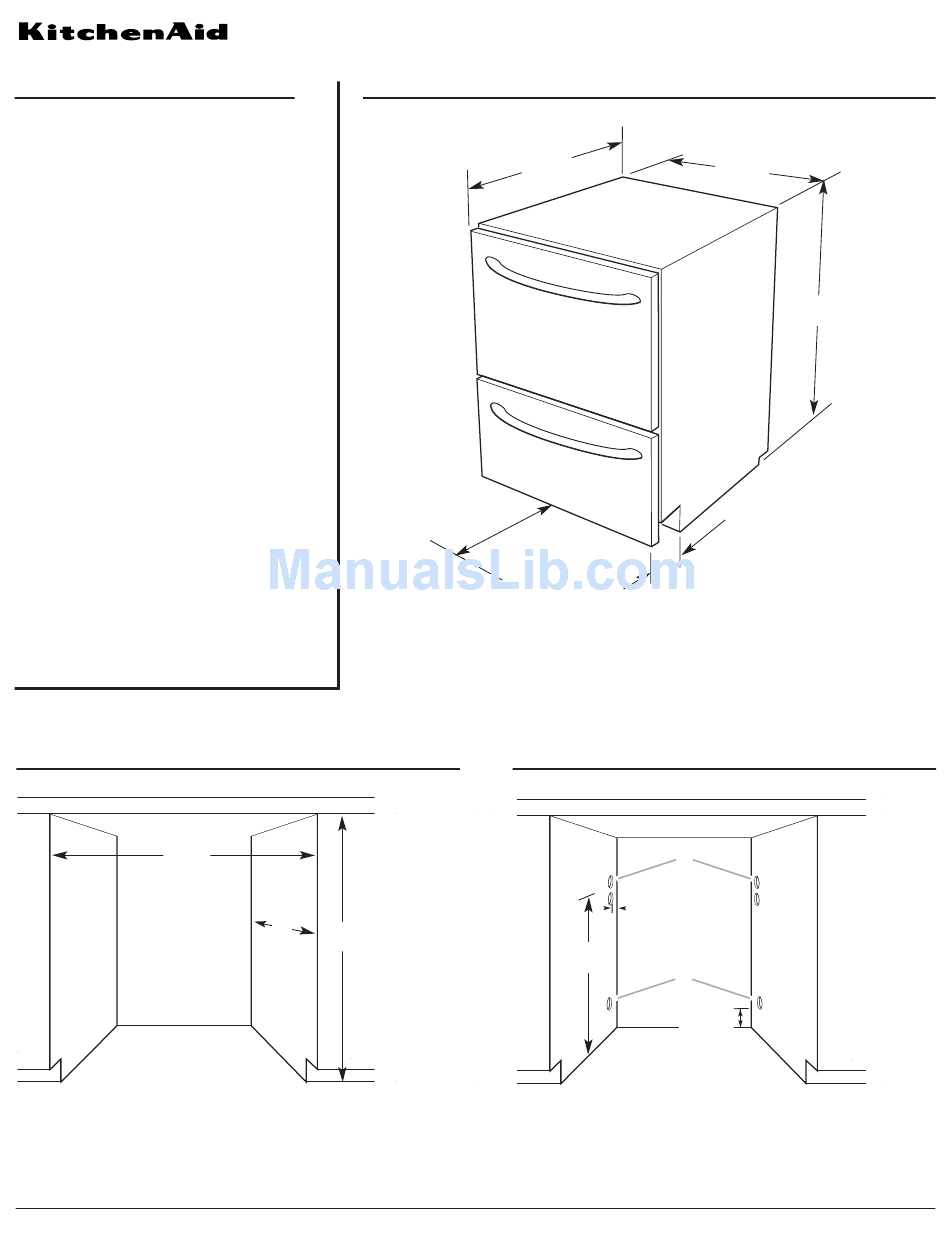

KitchenAid KUDD03DT Specifications

PRODUCT MODEL NUMBERS
KUDD03DT
Electrical: 120-volt, 60-Hz, AC-only, 15- or
20-amp. fused electrical supply. Use copper wire
only. A time-delay fuse or circuit breaker and
separate circuit is recommended.
Water: A hot water line with 20-120 psi
(138-862 kPa) water pressure. Water temperature
must be 120°F (49°C) at dishwasher. Use 3/8" O.D.
copper tubing with compression fitting or flexible
stainless steel braided fill line (1/2" minimum plastic
tubing not recommended).
Drain: Use the new drain hose supplied with your
dishwasher. If this is not suitable, use a new drain
hose with a maximum length of 12 feet (3.7 m)
that meets all current AHAM/IAPMO test
standards, is resistant to heat and detergent, and
fits the 1" (2.5 cm) drain connector of the
dishwasher. Must have a high drain loop 20" (50.8
cm) above the subfloor or floor. Connect drain hose
to waste tee or disposer inlet above drain trap in
house plumbing and 20" (50.8 cm) minimum above
the floor. An air gap must be used if the drain hose
is connected to house plumbing lower than 20"
(50.8 cm) above subfloor or floor. Use 1/2" (1.3 cm)
minimum I.D. drain line fittings.
CUTOUT DIMENSIONS
23¹⁄₂"
(59.7 cm)
Because Whirlpool Corporation policy includes a continuous commitment to improve
our products, we reserve the right to change materials and specifications without notice.
®
Drawer Dishwasher
OVERALL DIMENSIONS
24"
33³⁄₄"
(61 cm)
(85.7 cm)
24"
(61 cm)
¹⁄₄
19 "
(48.9 cm)
PREFERRED UTILITY AREA
25"
(63.5 cm)
A. Choose left-hand or right-hand drain and water connection route.
B. Choose left-hand or right-hand electric connection route.
NOTE: All holes should be drilled at 1½" (3.8 cm) diameter.
Dimensions are for planning purposes only. For complete details, see Installation
Instructions packed with product. Specifications subject to change without notice.
³⁄₈
23 "
(59.5 cm)
33³⁄₄"
(85.7 cm)
¹⁄₂
1 "
(3.75 cm)
A
1/2"
(1.3 cm)
B
8"
(20.3 cm)
Ref. W10118037A
03-20-08
