04−08 Litho in U.S.A. (ebk) (eeb)

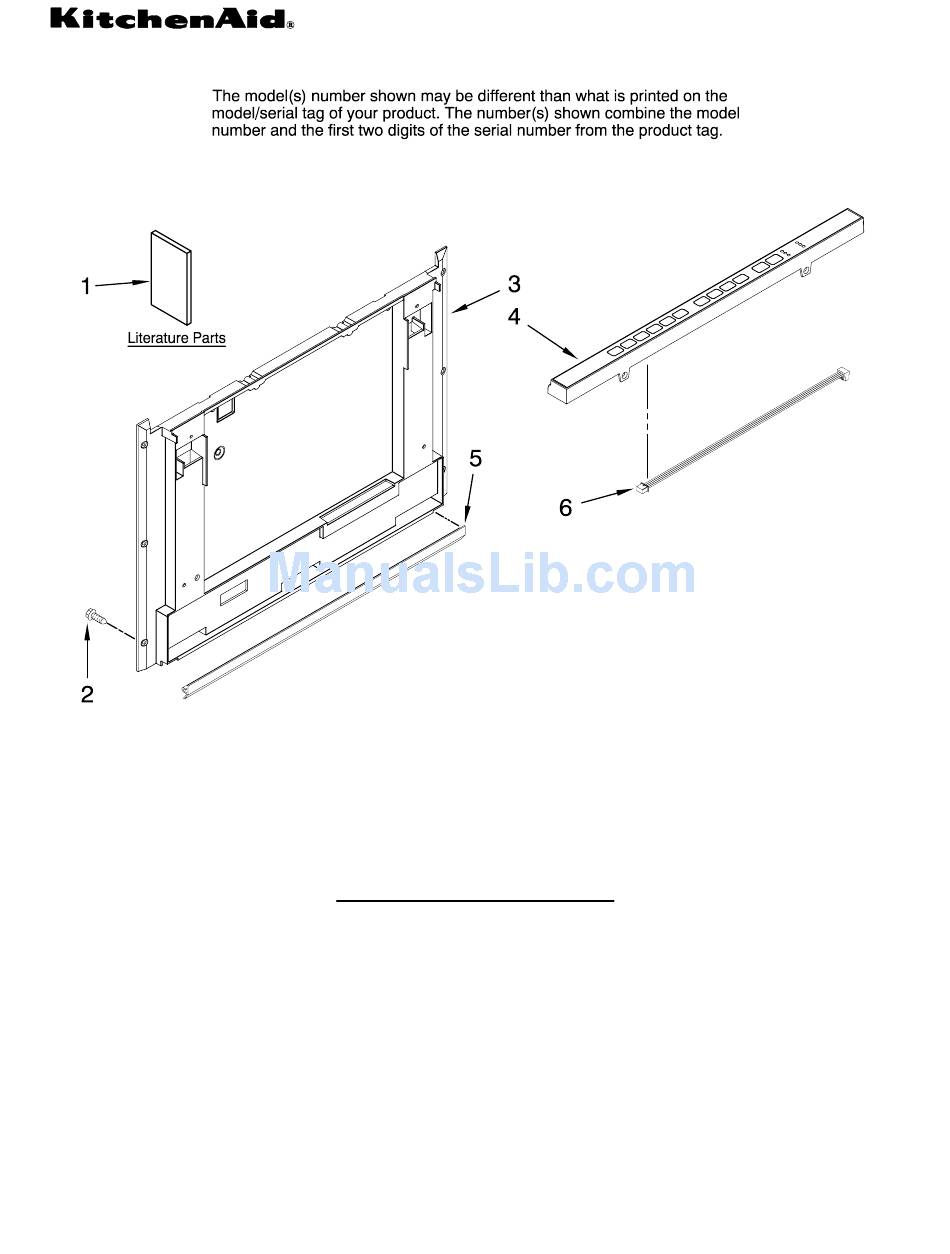

FRONT PANEL PARTS
For Model: KUDD03STPA10
(Panel−Ready)
Illus.
Part
No.
No.
DESCRIPTION
1
Literature Parts
W10118037 Instructions,
Installation
W10155587 Energy Guide
2
Y912620 Screw
3
Intermediate Panel
W10117988 Lower
W10117987 Upper
4 W10117977 Control Panel
(Includes User
Interface)
5
99003716 Trim, Toe Kick
6 W10117969 Harness, User
Interface
1
DRAWER
DISHWASHER
Part No. W10203584 Rev. A
