Konica Minolta PI-506 Installation Manual

Applied Machines: FS-528/FS-611

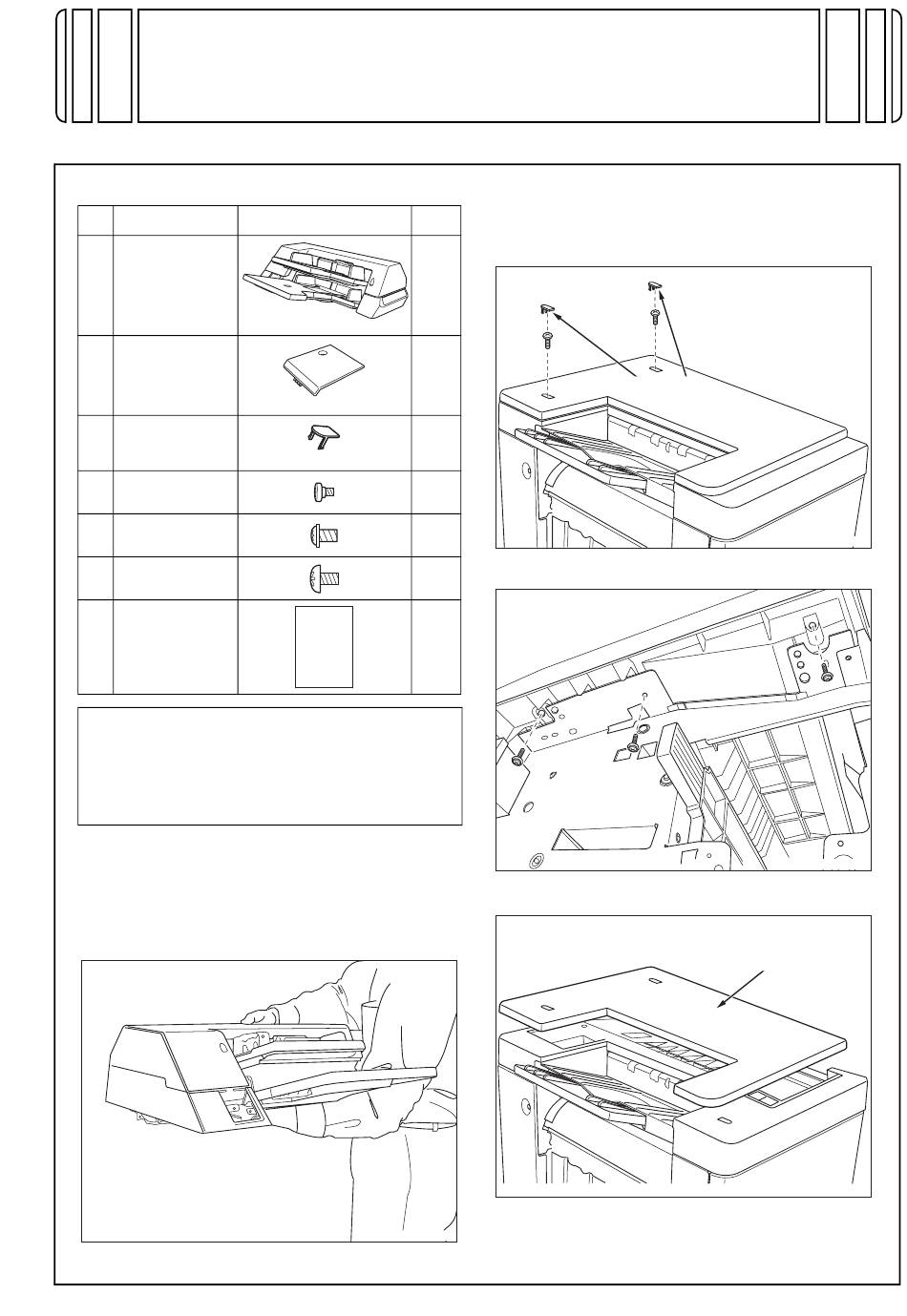

I. Accessory parts
No. Name
1. PI-506
2. Wire bundle
cover /1
3. Screw cover
4. Positioning
screw
5. TP screw
M4x6
6. Truss screw
M4x6 (black)
7. Installation
manual
Note:
Lifting the machine in an awkward position or
transporting it in a poorly balanced position could
result in personal injury. When transporting the
machine, be sure to take a good position of not
being excessively loaded. (mass: approx. 10.5kg)
II. Preliminary preparations
When installing the PI-506 to the Finisher, install the
PI-506 first then install the Finisher to the main body.
Note:
When handling the PI-506, grip it as shown in the
illustration below.
PI-506
INSTALLATION MANUAL
Shape Q'ty
1
15JFIXC001SA
1
15JFIXC002SA
1
15JFIXC003SA
2
3
1
1
15JFIXC004SA
Post Inserter
III. Installation Procedures
1. Remove the top cover from the Finisher.
(1) Remove the two screw covers at the rear side
of the top cover, then remove the screws.
Screw covers
(2) Open the front door and remove the 3 screws.
(3) Remove the top cover.
E-1
15JFIXE005SA
15JFIXC006SA
Top cover
15JFIXE007SA
