Applied Machines: C368/C308
COLOR MFP: 36 ppm/30 ppm
Product Code: A7PU/A7PY
Caution:
Lifting the machine in an awkward position or
transporting it in a poorly balanced position could
result in personal injury. When transporting the
machine, assign an adequate number of persons
to the job and ensure that each person can take a
good position of not being excessively loaded.
(mass: approx. 18 kg (39-3/4 lb))

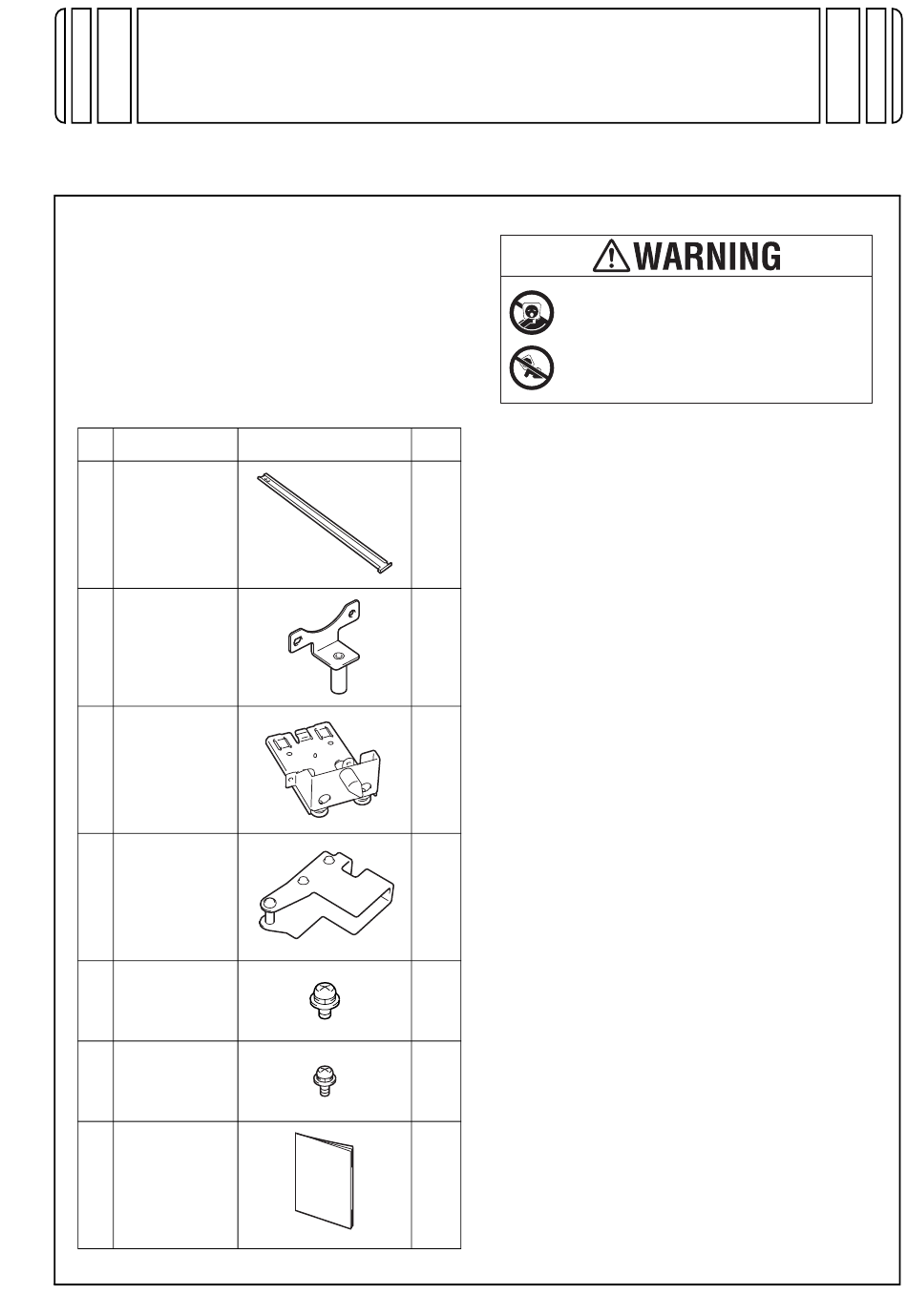

1. Accessory parts
No.
Name
1. Rail
2. Mounting
bracket A
3. Mounting
bracket B
4. Mounting
bracket C
5. Screw A
(4 x 8 mm)
6. Screw B
(3 x 8 mm)
7. Installation
manual
LU-302
INSTALLATION MANUAL
Shape
Q'ty
1
1
1
2
3
8
1 set
Large Capacity Unit
Keep this bag away from babies and
children. Do not use in cribs, beds,
carriages, or playpens.
The thin film may cling to nose and
mouth and prevent breathing. This bag is
not a toy.
Note:
• Before installing the large capacity unit the
Paper Feed Cabinet PC-410, PC-210, or PC-
110 needs to be installed in advance.
• This manual provides the illustrations of the
accessory parts and machine that may be
slightly different in shape from yours. In that
case, instead of the illustrations, use the
appearance of your machine to follow the
installation procedure. This does not cause any
significant change or problem with the proce-
dure.
• If none of the later steps instruct you to use the
parts including screw and cover that you
removed following the instructions described in
this manual, discard them.
E-1
A87V-9550-00
Advertisement
Related Manuals for Konica Minolta LU-302
Summary of Contents for Konica Minolta LU-302
- Page 1 LU-302 Large Capacity Unit INSTALLATION MANUAL Applied Machines: C368/C308 COLOR MFP: 36 ppm/30 ppm Product Code: A7PU/A7PY Caution: Lifting the machine in an awkward position or transporting it in a poorly balanced position could result in personal injury. When transporting the...
-
Page 2: Installation Procedures
2. Installation procedures (4) Slide out the drawer of the paper feed cabinet. Note: (1) Turn OFF the power switch and unplug the For the Paper Feed Cabinet PC-210 or PC-110, power cord from the power outlet. slide out both upper and lower drawers. (2) Remove the protective tape and protective mate- rials and remove the protective plastic bag of the hookup cord. - Page 3 (7) Remove the lower right cover from the paper (10) Remove the two knockouts from the lower right feed cabinet. (Two screws) cover using nippers. (8) Remove the knockout from the front right cover (11) Install the supplied mounting brackets C onto using nippers.
- Page 4 (13) Fit the tab of the mounting bracket B onto the (15) Hold up the mounting bracket A and insert the groove on the ceiling of the compartment as rail. Insert the protrusion of the mounting shown in the illustration then slide the mounting bracket A into the round hole on the base of the bracket B to the rear until the rail is fixed in the large capacity unit.
- Page 5 (17) Connect the two connectors of the large capac- (20) Reinstall the lower right cover. (Two screws) ity unit’s harness to the connectors of the paper feed cabinet. (21) Reinstall the rear right cover. (Two screws) (18) Connect the connectors and connect the ground wire with the supplied screw then insert the cord clamp.
- Page 6 (25) Check a clearance (3.0 mm ± 2.0 mm) is (28) Disconnect the connector and remove the har- ensured between the main body and the large ness from the wire saddle. capacity unit. Note: • If there is no clearance between the main body and the large capacity unit, the large capacity unit presses against the main body.
- Page 7 (31) Slide the large capacity unit towards the main (34) By turning the right side adjustment roller’s body and lock it. screws (front and rear) counterclockwise, the overall length of the right adjustment roller’s legs is shortened and therefore the right side of the unit is lowered.
- Page 8 (37) Remove the large capacity unit from the main (39) Reinstall the plate onto the rear side of the body. large capacity unit. (Two screws) (38) Reinstall the front and the rear covers. Tighten (40) Insert the connector and insert the harness into screws on the right side (three screws each for the wire saddle.
-
Page 9: Configuration Procedures
<Loading paper> <Affixing the label> (1) Open the upper door of the large capacity unit Affix the paper size label supplied with the main and raise the paper feed roller. body to the positions shown in the illustration. 3. Configuration procedures <Making settings for paper size>... -
Page 10: Adjustment Procedures
4. Adjustment procedures (7) Open the upper door of the large capacity unit. Loosen the adjustment screws (four screws) and <Checking the paper reference position> make an adjustment by moving the paper guide side plates to the left or right. <Centering>... - Page 11 (8) Load paper and let the machine produce another test print. Then, check width A. Note: Make the adjustment until width A falls within the specified range. <Centering (Duplex 2nd side)> (1) Touch “Prt. Image Center. Side 2 (Dup).” (2) Touch “LCT” and then press the Start key. A test print will then be produced.
